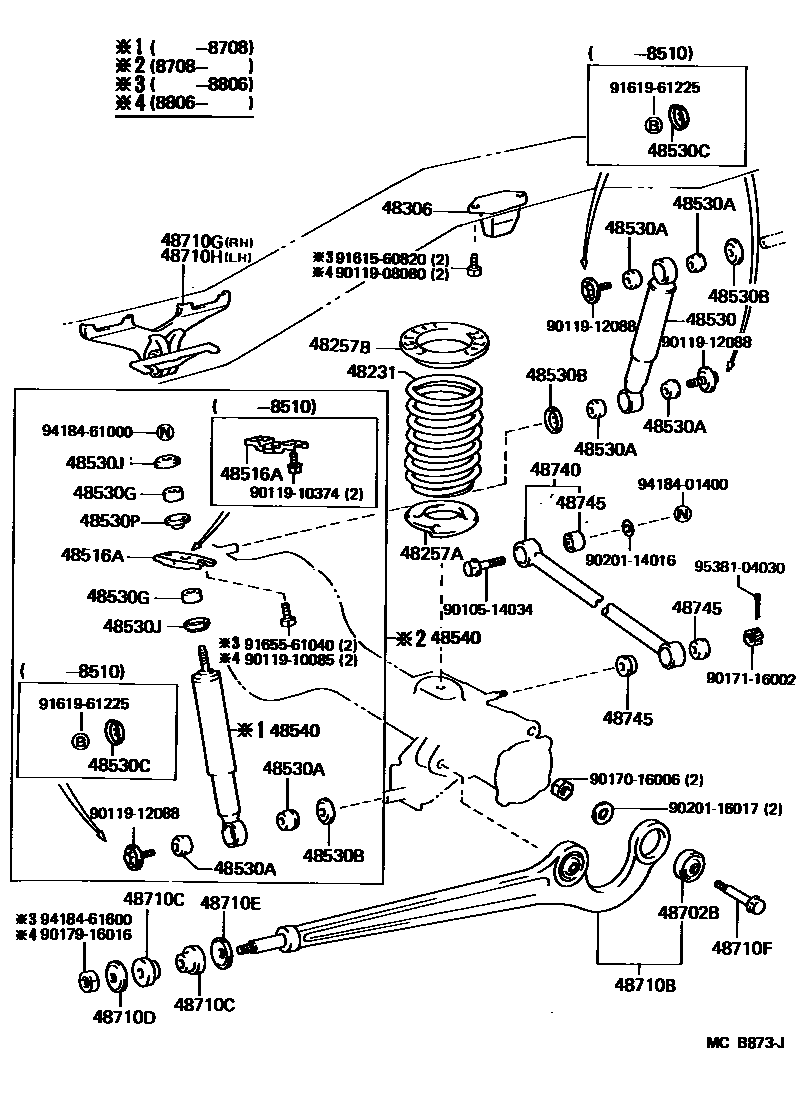

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1ME 0010 1 0012 1 0014 1

48231SPRING, COIL, REAR

main48231-60010×2iLJ70,RJ70..LHD198411-198510

main48231-60011×2iLJ70,RJ70..LHD198510-198708

main48231-60012×2iLJ70,RJ70..LHD198708-199001

main48231-60020iLJ70,RJ70..RHD198411-198510

RH

main48231-60021iLJ70,RJ70..RHD198510-198708

RH

main48231-60022iLJ70,RJ70..RHD198708-199001

RH

main48231-60030iLJ70,RJ70..RHD198411-198510

LH

main48231-60031iLJ70,RJ70..RHD198510-198708

LH

main48231-60032iLJ70,RJ70..RHD198708-199001

LH

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-60010×2iLJ70,RJ70198411-199001

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-60010×2iLJ70,RJ70198411-199001

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60050×2iBJ7#,FJ7#,HJ75198411-199001

main48306-60060×2iLJ70,RJ70..GEN,ME198411-198708

main48306-60061×2iLJ70,RJ70..ARL198707-199001

main48306-60080×2iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-199001

HEAVY DUTY SPEC

48516ABRACKET, REAR SHOCK ABSORBER, UPPER

main48516-60020iLJ70,RJ70198411-198510

main48516-60021iLJ70,RJ70198510-199001

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-60100iBJ70,73,74,FJ70,73198411-198708

MARK 48531-60100

main48531-60110iBJ75,FJ75,HJ75198411-198707

MARK 48531-60110

main48531-60120iLJ70,RJ70..GEN,ME198411-198708

MARK 48531-60120

main48531-69136iBJ70,73,74,FJ70,73198708-199001

main48531-69146iLJ70,RJ70..ARL198707-199001

main48531-69156iBJ75,FJ75..ME198708-198808

main48531-69185iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-198708

HEAVY DUTY SPEC

main48531-69215iBJ75,FJ75,HJ75..ARL,GEN,SA; BJ75,FJ75..ME198708-198808

HEAVY DUTY SPEC

main48531-69225iBJ75,FJ75,HJ75..PIC..(GEN,ME)198808-199001

HEAVY DUTY SPEC

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19003×6iLJ70,RJ70198411-198708

main90385-19057×8iBJ7#,FJ7#,HJ75198411-198708

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×4iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03015×4iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198510

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01031×2iLJ70,RJ70198411-199001

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02002×2iLJ70,RJ70198411-198708

main90948-02114×2iLJ70,RJ70198708-199001

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02017iLJ70,RJ70198411-199001

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-60100iBJ70,73,74,FJ70,73198411-198708

MARK 48531-60100

main48531-60110iBJ75,FJ75,HJ75198411-198707

MARK 48531-60110

main48531-69136iBJ70,73,74,FJ70,73198708-199001

main48531-69156iBJ75,FJ75..ME198708-198808

main48531-69185iBJ75,FJ75,HJ75..PIC..(GEN,ME)198608-198708

HEAVY DUTY SPEC

main48531-69215iBJ75,FJ75,HJ75..ARL,GEN,SA; BJ75,FJ75..ME198708-198808

HEAVY DUTY SPEC

main48531-69225iBJ75,FJ75,HJ75..PIC..(GEN,ME)198808-199001

HEAVY DUTY SPEC

main48541-60010iLJ70,RJ70..GEN,ME198411-198708

MARK 48541-60010

main48541-69056iLJ70,RJ70..ARL198707-199001

48702BBUSH SUB-ASSY, TRAILING ARM, NO.1

main48702-60020×4iLJ70,RJ70198411-199001

48710BARM ASSY, TRAILING, REAR

main48710-60010×2iLJ70,RJ70198411-198708

main48710-60011×2iLJ70,RJ70198708-199001

48710CCUSHION(FOR REAR TRAILING ARM)

main48674-60020×4iLJ70,RJ70198411-199001

48710DRETAINER, CUSHION, NO.1(FOR REAR TRAILING ARM)

main90948-02074×2iLJ70,RJ70198411-199001

48710ERETAINER, CUSHION, NO.2(FOR REAR TRAILING ARM)

main90948-02083×2iLJ70,RJ70198411-199001

48710FBOLT(FOR REAR TRAILING ARM)

main90105-16024×4iLJ70,RJ70198411-199001

48710GBRACKET, TRAILING ARM, RH

main51528-60010iLJ70,RJ70198411-199001

48710HBRACKET, TRAILING ARM, LH

main51529-60010iLJ70,RJ70198411-199001

48740ROD ASSY, REAR LATERAL CONTROL

main48740-60010iLJ70,RJ70198411-198708

main48740-60011iLJ70,RJ70198708-199001

48745BUSH, LATERAL CONTROL ROD

main48706-60010iLJ70,RJ70198411-198708

FRAME SIDE

main48706-60011iLJ70,RJ70198708-199001

FRAME SIDE

main90385-20002iLJ70,RJ70198411-198708

AXLE HOUSING SIDE,FR

main90385-20003iLJ70,RJ70198411-198708

AXLE HOUSING SIDE,RR

main90389-20001×2iLJ70,RJ70198708-199001

9010514034

main90105-14034

9011908080

main90119-08080

9011910085

main90119-10085

9011910374

main90119-10374

9011912088

main90119-12088

9017016006

main90170-16006

9017116002

main90171-16002

9017916016

main90179-16016

9020114016

main90201-14016

9020116017

main90201-16017

9161560820

main91615-60820

9161961225

main91619-61225

9165561040

main91655-61040

9418401400

main94184-01400

9418461000

main94184-61000

9418461600

main94184-61600

9538104030

main95381-04030

40 parts on this diagram · 8 diagrams in section
