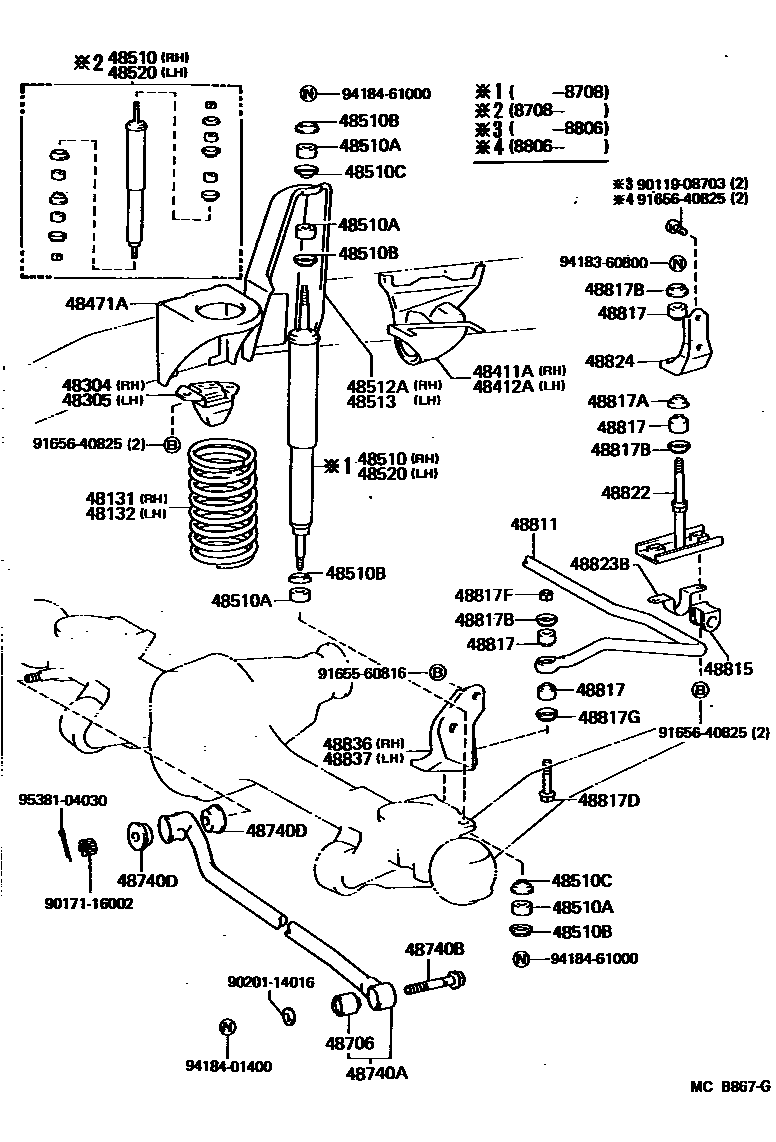

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0006 1E,SA; (8708-8808)BJ75,FJ75..M0011 1

48131SPRING, FRONT COIL, RH

main48131-60010iRJ70..LHD198411-198708

main48131-60011iRJ70..LHD198708-199001

main48131-60020iRJ70..RHD..GEN198411-198708

main48131-60021iRJ70..RHD..GEN198708-199001

main48131-60040iLJ70..LHD; RJ70..LHD198411-198708

W/WINCH

main48131-60041iLJ70..LHD; RJ70..LHD198708-199001

W/WINCH

main48131-60050iLJ70..RHD..GEN; RJ70..ARL; RJ70..RHD..GEN198411-198708

W/WINCH

main48131-60051iLJ70..RHD..GEN; RJ70..ARL; RJ70..RHD..GEN198708-199001

W/WINCH

main48131-60070iLJ70..LHD198411-198708

W/WINCH

main48131-60071iLJ70..LHD198708-199001

W/WINCH

main48131-60080iLJ70..RHD..GEN198411-198708

W/WINCH

main48131-60081iLJ70..ARL; LJ70..RHD..GEN198708-199001

W/WINCH

48132SPRING, FRONT COIL, LH

main48131-60010iRJ70..LHD198411-198708

main48131-60011iRJ70..LHD198708-199001

main48131-60030iRJ70..RHD..GEN198411-198708

main48131-60031iRJ70..RHD..GEN198708-199001

main48131-60040iLJ70..LHD; RJ70..LHD198411-198708

W/WINCH

main48131-60041iLJ70..LHD; RJ70..LHD198708-199001

W/WINCH

main48131-60060iLJ70..RHD..GEN; RJ70..ARL; RJ70..RHD..GEN198411-198708

W/WINCH

main48131-60061iLJ70..RHD..GEN; RJ70..ARL; RJ70..RHD..GEN198708-199001

W/WINCH

main48131-60070iLJ70..LHD198411-198708

W/WINCH

main48131-60071iLJ70..LHD198708-199001

W/WINCH

main48131-60090iLJ70..ARL198510-198708

main48131-60091iLJ70..ARL; LJ70..RHD..GEN198708-199001

W/WINCH

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-60040iLJ70,RJ70198411-198510

main48304-60041iLJ70,RJ70..ARL198510-198707

main48304-60042iLJ70,RJ70..GEN,ME198708-199001

main48304-60050iBJ7#,FJ7#,HJ75198411-198712

main48304-60051iBJ7#,FJ7#,HJ75198712-199001

48305BUMPER SUB-ASSY, FRONT SPRING, NO.2

main48305-60010iLJ70,RJ70198411-198510

main48305-60011iLJ70,RJ70..ARL198510-198707

main48305-60012iLJ70,RJ70..ARL198707-199001

main48305-60020iBJ7#,FJ7#,HJ75198411-198712

main48305-60021iBJ7#,FJ7#,HJ75198712-199001

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-60050iBJ7#,FJ7#,HJ75198411-199001

48411ABRACKET, LEADING ARM, RH

main51518-60010iLJ70,RJ70198411-199001

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48412-60010iBJ7#,FJ7#,HJ75198411-199001

48412ABRACKET, LEADING ARM, LH

main51519-60010iLJ70,RJ70198411-199001

48471ASEAT, FRONT SPRING SUPPORT

main51511-60010×2iLJ70,RJ70198411-199001

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-60090iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA; FJ70,73..ARL198707-198708

main48511-60100iLJ70,RJ70..GEN,ME198411-198708

main48511-60110iLJ70,RJ70..GEN,ME198411-198708

W/WINCH

main48511-69106iLJ70,RJ70198708-199001

main48511-69155iFJ75..PIC..ME198605-198708

HEAVY DUTY SPEC

main48511-69175iFJ75,HJ75..ARL198707-198708

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01031×8iBJ7#,FJ7#,HJ75; LJ70,RJ70198411-199001

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002×8iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198708

main90948-02114×8iBJ7#,FJ7#,HJ75,LJ70,RJ70198708-199001

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02017×4iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48512-60040iBJ7#,FJ7#,HJ75198411-199001

main48512-60050iLJ70,RJ70198411-199001

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48512-60040iBJ7#,FJ7#,HJ75198411-199001

main48513-60020iLJ70,RJ70198411-199001

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-60090iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA; FJ70,73..ARL198707-198708

main48511-60100iLJ70,RJ70..GEN,ME198411-198708

main48511-60110iLJ70,RJ70..GEN,ME198411-198708

W/WINCH

main48511-69106iLJ70,RJ70..ARL198707-198708

main48511-69155iFJ75..PIC..ME198605-198708

HEAVY DUTY SPEC

main48511-69175iBJ7#,FJ7#,HJ75198708-199001

48706BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD

main48706-60011iLJ70,RJ70198708-199001

main48706-60020iLJ70,RJ70198411-198708

48740AROD ASSY, FRONT LATERAL CONTROL

main48740-60021iLJ70,RJ70..RHD198411-198708

main48740-60022iLJ70,RJ70..RHD198708-199001

main48740-60031iLJ70,RJ70..LHD198411-199001

48740BBOLT(FOR FRONT LATERAL CONTROL ROD)

main90105-14034iLJ70,RJ70198411-199001

48740DBUSH(FOR FRONT LATERAL CONTROL ROD)

main90385-20002iLJ70,RJ70198411-198708

RR

main90385-20003iLJ70,RJ70198411-198708

FR

main90389-20001×2iLJ70,RJ70198708-199001

RR

48811BAR, STABILIZER, FRONT

main48811-60020iBJ7#,FJ7#,HJ75198411-198510

main48811-60040iLJ70,RJ70..ARL; LJ70,RJ70..GEN,ME198510-198708

main48811-60041iLJ70,RJ70..ARL; LJ70,RJ70..GEN,ME198708-199001

main48811-60050iBJ70,73,74,FJ7#,HJ75..(HT,SOT)..(ARL,ME); BJ70,73,75,FJ7#,HJ75..GEN198605-199001

main48811-60060iBJ75,FJ75..PIC..ME198605-199001

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20030×2iLJ70,RJ70..GEN,ME198510-198708

main48815-26040×2iBJ70,73,74,FJ7#,HJ75..(HT,SOT)..(ARL,ME); BJ70,73,75,FJ7#,HJ75..GEN198605-199001

main48815-30050×2iBJ7#,FJ7#,HJ75198411-198510

main48815-60020×2iBJ75,FJ75..PIC..ME198605-199001

48817CUSHION, FRONT STABILIZER

main48817-30010×8iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..ARL; BJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198510-198605

main90948-01003×8iBJ75,FJ75..PIC..ME198605-199001

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02015×2iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..ARL; BJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198510-198605

main90948-02017×2iBJ75,FJ75..PIC..ME198605-199001

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02002×8iBJ75,FJ75..PIC..ME198605-199001

main90948-02032×8iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..ARL; BJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198510-198605

48817DBOLT(FOR FRONT STABILIZER)

main48819-60010×2iLJ70,RJ70198510-199001

main90101-08055×2iBJ70,73,74,FJ7#,HJ75..HT..ARL; BJ70,75,FJ7#,HJ75..GEN,ME198510-198605

main90101-10157×2iBJ75,FJ75..PIC..ME198605-199001

48817FNUT(FOR FRONT STABILIZER BAR)

main94183-60800×2iBJ70,73,74,FJ7#,HJ75,LJ70,RJ70..(HT,SOT)..ARL; BJ70,75,FJ7#,HJ75,LJ70,RJ70..GEN,ME198510-198605

main94184-61000×2iBJ75,FJ75..PIC..ME198605-199001

48817GRETAINER, CUSHION, NO.3(FOR FRONT STABILIZER BAR)

main90948-03007×2iLJ70,RJ70198510-199001

48822ROD, STABILIZER LINK

main48822-60030×2iLJ70,RJ70198510-199001

48823BCOVER, FRONT STABILIZER BRACKET

main48823-26050×2iBJ70,73,74,FJ7#,HJ75..HT..ARL; BJ70,75,FJ7#,HJ75..GEN,ME198605-198608

main48823-27010×2iBJ70,73,74,FJ7#,HJ75..HT..ARL; BJ70,75,FJ7#,HJ75..GEN,ME198510-198605

main48823-35030×2iLJ70,RJ70198510-199001

main48823-60030×2iBJ70,73,74,FJ7#,HJ75..HT..ARL; BJ70,73,75,FJ7#,HJ75..GEN,ME198608-199001

48824BRACKET, STABILIZER, FRONT

main48824-60040×2iLJ70,RJ70198510-199001

main48825-60020×2iBJ70,73,74,FJ7#,HJ75..HT..ARL; BJ70,73,75,FJ7#,HJ75..GEN,ME198510-199001

48836BRACKET, FRONT STABILIZER END, RH

main48836-60010iLJ70,RJ70198510-198708

main48836-60011iLJ70,RJ70198708-199001

48837BRACKET, FRONT STABILIZER END, LH

main48837-60010iLJ70,RJ70198510-198708

main48837-60011iLJ70,RJ70198708-199001

9011908703

main90119-08703

9017116002

main90171-16002

9020114016

main90201-14016

9165560816

main91655-60816

9165640825

main91656-40825

9418360800

main94183-60800

9418401400

main94184-01400

9418461000

main94184-61000

9538104030

main95381-04030

42 parts on this diagram · 5 diagrams in section
