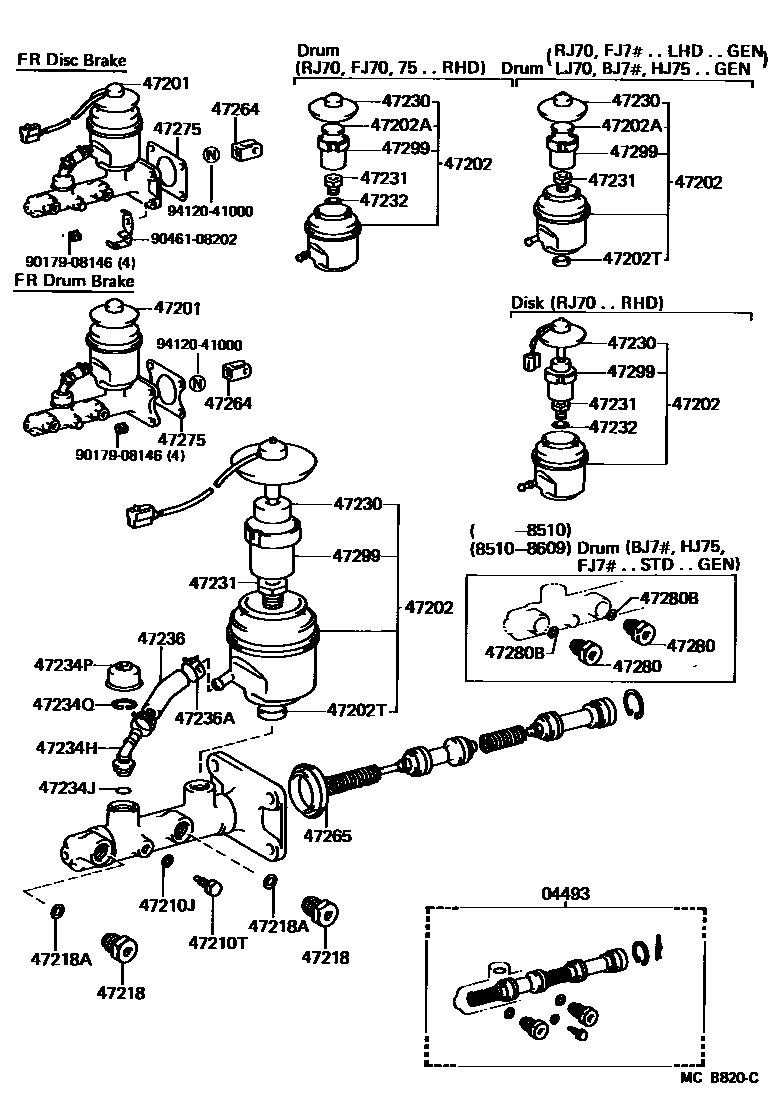

BRAKE MASTER CYLINDER

0001 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-60090iRJ70..RHD198411-199001

FR DISC BRAKE

sub04493-60170

main04493-60100iRJ70..RHD..STD..GEN198411-199001

FR DRUM BRAKE

main04493-60110iFJ70..RHD..GEN198411-199001

FR DRUM BRAKE

main04493-60120iFJ75..RHD..GEN198411-199001

FR DRUM BRAKE

main04493-60130iFJ70,73..LHD..STD..GEN198411-199001

FR DRUM BRAKE

main04493-60140iFJ75..LHD..GEN198411-199001

FR DRUM BRAKE

main04493-60150iLJ70..STD..DSL198411-199001

FR DRUM BRAKE

main04493-60160iFJ70,73198708-199001

FR DISC BRAKE

sub04493-60170

main04493-60190iFJ75..LX198708-199001

FR DISC BRAKE

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-60210iRJ70..RHD198411-199001

FR DISC BRAKE

main47201-60230iRJ70..RHD..STD..GEN198411-199001

FR DRUM BRAKE

main47201-60240iFJ70..RHD..GEN198411-199001

FR DRUM BRAKE

main47201-60250iFJ75..RHD..GEN198411-199001

FR DRUM BRAKE

main47201-60260iFJ70,73..LHD..STD..GEN198411-199001

FR DRUM BRAKE

main47201-60270iFJ75..LHD..GEN198411-199001

FR DRUM BRAKE

main47201-60280iRJ70..LHD..STD..GEN198411-199001

FR DRUM BRAKE

main47201-60290iFJ70,73198708-199001

FR DISC BRAKE

main47201-60350iBJ74,LJ70..RHD..TD198510-199001

main47201-60390iFJ75..LX198708-199001

FR DISC BRAKE

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-60030iRJ70..RHD198411-199001

FR DISC BRAKE

main47202-60050iFJ75..RHD..GEN..IV;FJ75..RHD..4F..CBU;FJ70,RJ70..RHD..STD..GEN198411-199001

FR DRUM BRAKE

main47202-60060iFJ7#,RJ70..LHD..STD..GEN198411-199001

FR DRUM BRAKE

main47202-60070iBJ7#,FJ7#,HJ75,LJ70198411-199001

FR DISC BRAKE

47202AFLOAT, MASTER CYLINDER RESERVOIR

main31426-20010iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73,LJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90562-18151iBJ7#,FJ7#,HJ75,LJ70198411-199001

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040×2iBJ7#,FJ7#,HJ75,LJ70,RJ70198609-199001

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253×2iBJ7#,FJ7#,HJ75,LJ70,RJ70198609-199001

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20030iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73,LJ70,RJ70..STD..(CBR,DSL)..GEN198411-199001

FR DRUM BRAKE

main84460-20051iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

FR DISC BRAKE

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ7#,FJ7#,HJ75,LJ70198411-199001

FR DRUM BRAKE

main47231-30010iRJ70..RHD198411-199001

FR DRUM BRAKE

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iRJ70..RHD198411-199001

FR DRUM BRAKE

47234HELBOW(FOR RESERVOIR TUBE)

main90407-10003iRJ70..RHD198411-199001

FR DRUM BRAKE

main90407-10004iFJ7#..ARL,SA198411-199001

FR DISC BRAKE

47234JRING, O(FOR RESERVOIR TUBE)

main90301-14001iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47234PBOOT(FOR RESERVOIR TUBE)

main47265-20060iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47234QRING, SNAP(FOR RESERVOIR TUBE)

main96151-02000iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47236TUBE, RESERVOIR BRAKE

main47234-14010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001×2iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-198708

main47264-30040iFJ75..LX198708-199001

FR DISC BRAKE

47265BOOT, MASTER CYLINDER

main47265-20050iBJ7#,FJ7#,HJ75198411-199001

FR DISC BRAKE

main47265-35030iHJ75..4F;FJ75..4F..CBU;FJ75..GEN..IV;FJ75,HJ75..LHD..5F..GEN..CBU;BJ70,73,75,FJ70,73..STD..GEN198411-199001

FR DRUM BRAKE

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iFJ75..STD198708-199001

FR DISC BRAKE

main47275-24010iFJ75..LX198708-199001

FR DISC BRAKE

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010×2iFJ70,75..RHD..GEN198411-198510

FR DISC BRAKE

main47280-30030×2iFJ70,75..RHD..GEN198411-198609

FR DRUM BRAKE

47280BGASKET(FOR BRAKE MASTER CYLINDER OUTLET VALVE)

main90430-09253×2iBJ70,73,75,FJ7#,HJ75..STD..GEN198510-198609

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-14010iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

9017908146

main90179-08146

9046108202

main90461-08202

9412041000

main94120-41000

27 parts on this diagram · 2 diagrams in section
