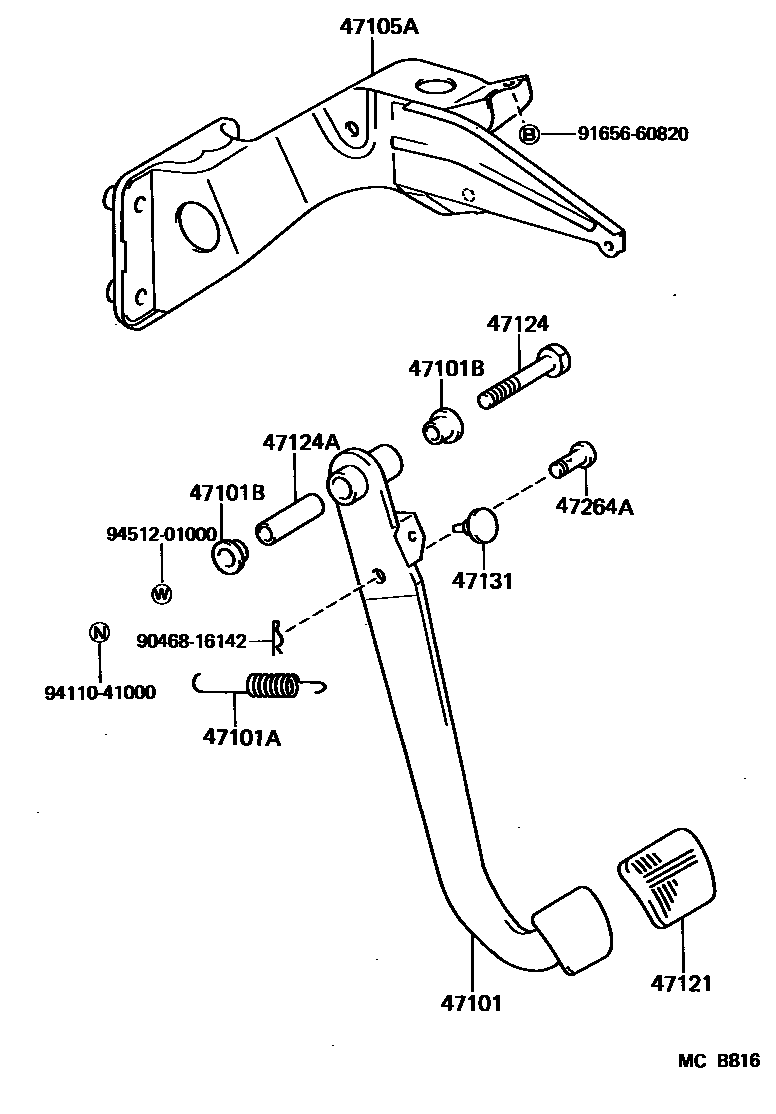

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-60100iBJ7#,FJ7#,HJ75,LJ70,RJ70..RHD..MTM198411-199001

main47101-60110iBJ70,73,75,FJ7#,HJ75,LJ70,RJ70..LHD..MTM198411-199001

main47101-60120iBJ74,FJ73..4FC..ARL198510-199001

main47101-60130iFJ70,73..LHD..4FC198411-199001

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12022iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192×2iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-90K00iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47121PAD, BRAKE PEDAL

main31321-14020iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-199001

main47121-30050iBJ74,FJ70,73..4FC198411-199001

47124SHAFT, BRAKE PEDAL

main91121-51070iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

47264APIN(FOR PUSH ROD)

main90249-10017iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

9046816142

main90468-16142

9165660820

main91656-60820

9411041000

main94110-41000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
