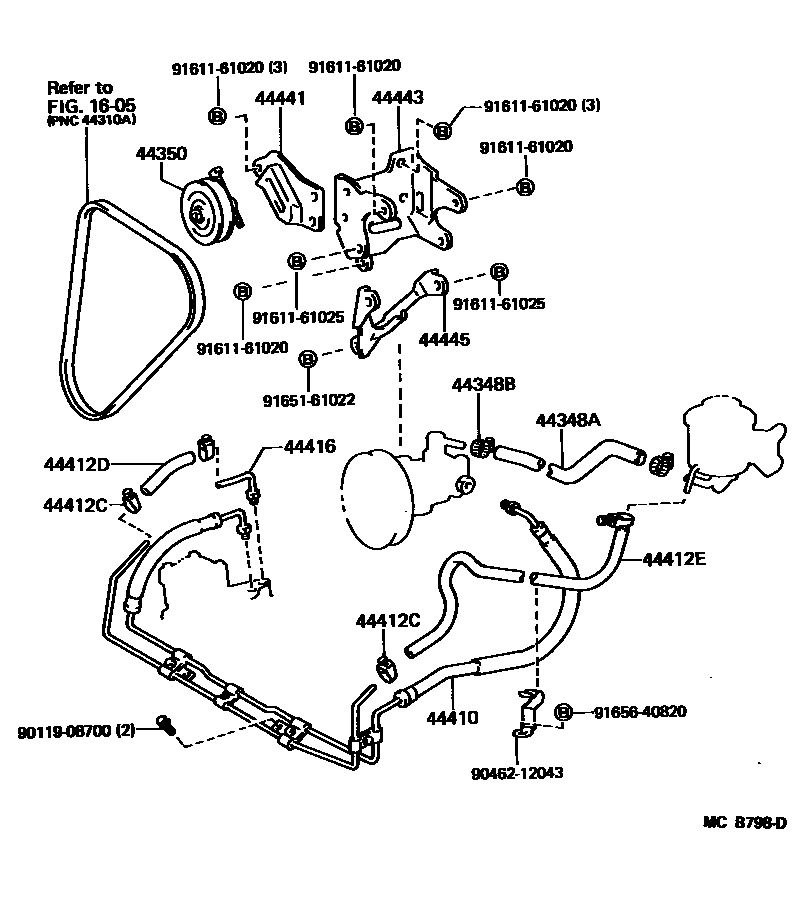

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60030iBJ70,73,75198411-199001

main44348-60040iHJ75..ARL,GEN198411-199001

main44348-60050iRJ70198411-199001

main44348-60060iLJ70198411-199001

main44348-60080iBJ74198510-199001

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iBJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44350PULLEY ASSY, POWER STEERING IDLE

main16630-47020iHJ75..ARL,GEN198411-199001

main44350-20020iRJ70198411-199001

main44350-35010iLJ70198411-199001

main44350-60010iBJ7#198411-199001

44410TUBE ASSY, PRESSURE FEED

main44410-60081iFJ7#..LHD198411-198511

main44410-60082iFJ7#..LHD198511-199001

main44410-60090iBJ70,75..LHD198411-198511

main44410-60091iBJ70,73,75..LHD198511-198808

main44410-60101iHJ75..LHD198411-198511

main44410-60102iHJ75..LHD198511-199001

main44410-60111iRJ70..RHD198411-199001

main44410-60120iLJ70..LHD198411-198706

main44410-60121iLJ70..LHD198706-199001

main44410-60180iBJ70,73,75..LHD198808-199001

44412CCLAMP(FOR RETURN HOSE)

main90460-01001×4iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

44412DHOSE, RETURN, NO.1

main44412-60030iBJ70,73,75198411-199001

main44412-60040iHJ75..ARL,GEN198411-199001

main44412-60050iLJ70,RJ70198411-199001

main44412-60070iFJ7#..ARL,GEN,ME198411-199001

main44412-60100iBJ74198510-199001

44412EHOSE, RETURN, NO.2

main44412-60060iLJ70198411-199001

main44412-60080iRJ70198411-199001

main44412-60090iBJ7#,FJ7#,HJ75..ARL,GEN,ME198411-199001

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60061iLJ70..RHD198706-199001

main44416-60090iBJ7#,FJ7#,HJ75..RHD..(ARL,GEN)198411-199001

main44416-60100iBJ70,73,75,FJ7#,HJ75..LHD198411-199001

main44416-60110iRJ70..LHD198706-199001

main44416-60120iRJ70..LHD198411-198706

main44416-60130iLJ70..RHD198411-198706

main44416-60140iLJ70..LHD198411-198706

44441BRACKET, PUMP, FRONT

main44441-20010iRJ70198411-199001

main44441-35011iLJ70198411-199001

44443BRACKET, PUMP

main44443-35011iLJ70198411-199001

main44443-35020iRJ70198411-199001

main44443-60050iFJ7#..ARL,GEN,ME198411-199001

main44443-60060iBJ7#198411-199001

main44443-60070iHJ75198411-198510

main44443-60071iHJ75..ARL,GEN198510-199001

44445BRACKET, PUMP, LOWER

main44445-35010iRJ70198411-199001

9011908700

main90119-08700

9046212043

main90462-12043

9161161020

main91611-61020

9161161025

main91611-61025

9165161022

main91651-61022

9165640820

main91656-40820

18 parts on this diagram · 10 diagrams in section
