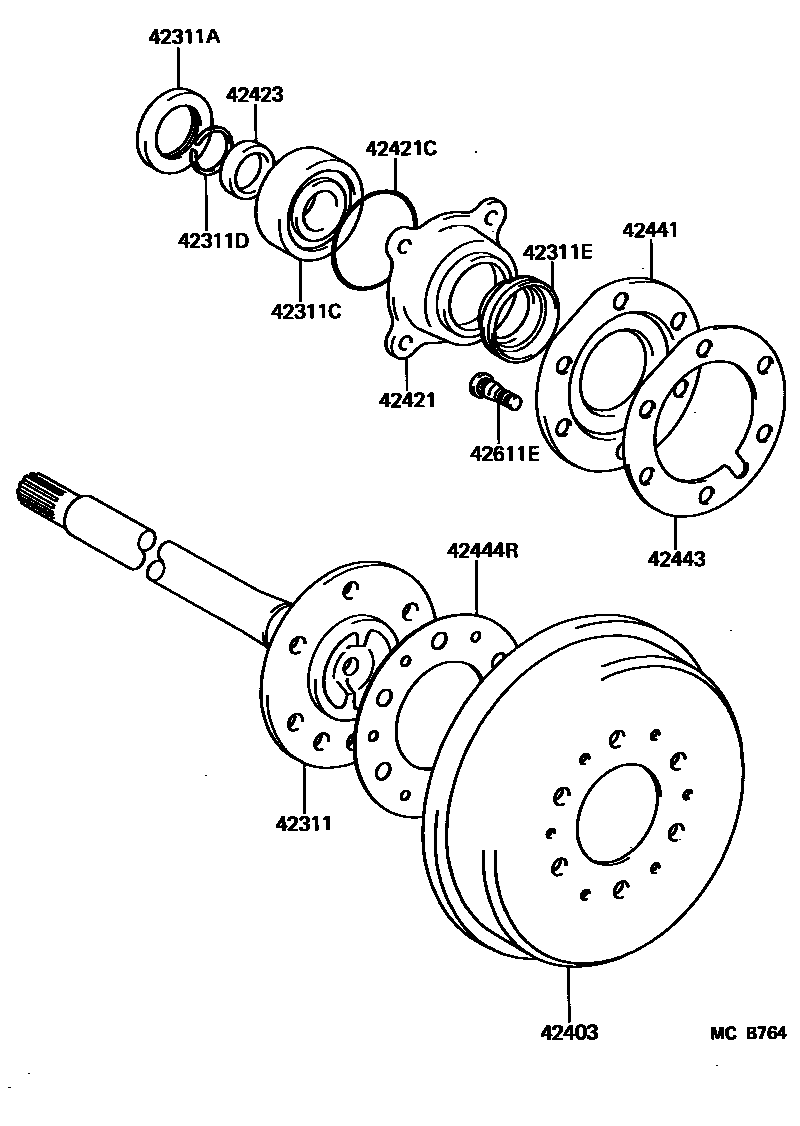

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311SHAFT, REAR AXLE

main42311-60052iBJ7#,FJ7#,HJ75198411-199001

RH,FULL FLOATING AXLE

main42311-60060iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA198411-199001

RH,SEMI FLOATING AXLE

main42311-60070iLJ70,RJ70198411-198510

RH

main42311-60071iLJ70,RJ70198510-199001

RH

main42311-60080iBJ7#,FJ7#,HJ75..RHD..(ARL,GEN); BJ75,FJ7#,HJ75..LHD198608-199001

RH,FULL FLOATING AXLE,W/*DL

main42312-60042iBJ7#,FJ7#,HJ75198411-199001

LH,FULL FLOATING AXLE

main42312-60070iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA198411-199001

LH,SEMI FLOATING AXLE

main42312-60100iLJ70,RJ70198411-198510

LH

main42312-60101iLJ70,RJ70198510-199001

LH

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001×2iLJ70,RJ70198411-199001

main90313-93001×2iBJ7#,FJ7#,HJ75198411-199001

42311CBEARING(FOR REAR AXLE SHAFT)

main90363-40020×2iLJ70,RJ70198510-199001

main90365-47013×2iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA198411-199001

main97144-06308×2iLJ70,RJ70198411-198510

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2iLJ70,RJ70198411-199001

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90310-35001×2iBJ7#,FJ7#,HJ75198411-199001

FULL FLOATING AXLE

main90311-47001×2iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA198411-199001

SEMI FLOATING AXLE

main90313-48001×2iLJ70,RJ70198411-199001

42403DRUM SUB-ASSY, REAR BRAKE

main42431-60020×2iBJ7#,FJ7#,HJ75198411-199001

main42431-60040×2iLJ70,RJ70198411-199001

main42431-60050×2iFJ75..5F..IV198604

VENEZUELA SPEC

42421CASE, REAR AXLE BEARING

main42421-35030×2iLJ70,RJ70198411-199001

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-88077×2iLJ70,RJ70198411-199001

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×2iLJ70,RJ70198411-199001

42441DEFLECTOR, BRAKE DRUM OIL

main42441-30010×2iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA198411-199001

main42441-35010×2iLJ70,RJ70198411-198510

main42441-35020×2iLJ70,RJ70198510-199001

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-55020×2iBJ70,73,75,FJ7#,HJ75..GEN,ME,SA; LJ70,RJ70198411-199001

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35040×2iLJ70,RJ70198411-198508

main42444-35050×2iLJ70,RJ70198508-199001

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02052×12iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

13 parts on this diagram · 3 diagrams in section
