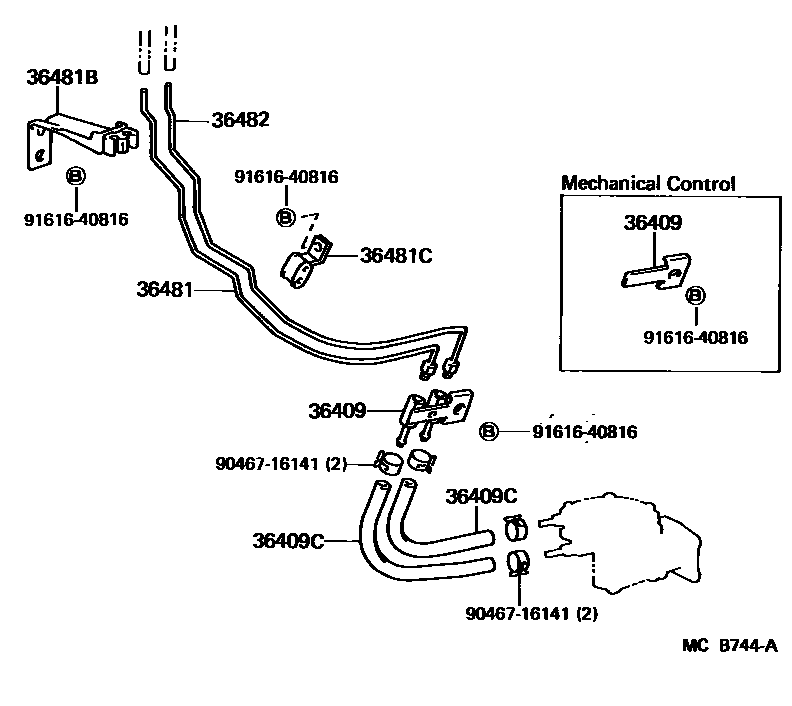

TRANSFER VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

36409SUPPORT SUB-ASSY, VACUUM TUBE UNION

main36409-60030iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

ELECTRIC CONTROL TRANSFER

main36489-60030iBJ7#..MTM; HJ75..LHD; LJ70..LX,STD198411-199001

MECHANICAL CONTROL TRANSFER

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main95441-09260iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM..(ARL,GEN,ME)198411-199001

L=260

main95441-09300iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM..(ARL,GEN,ME)198411-199001

L=300

main95441-09400iBJ74,FJ70,73..4FC198411-199001

L=400

main95441-09440iBJ74,FJ70,73..4FC198411-199001

L=440

36481TUBE, FRONT DRIVE VACUUM, NO.1

main36481-60070iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

36481BCLAMP, FRONT DRIVE VACUUM TUBE, NO.1

main47371-60040iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

36481CCLAMP, FRONT DRIVE VACUUM TUBE, NO.2

main47372-35010iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-60070iBJ7#,FJ7#,HJ75,LJ70,RJ70..ARL,GEN,ME198411-199001

9046716141

main90467-16141

9161640816

main91616-40816

8 parts on this diagram · 5 diagrams in section
