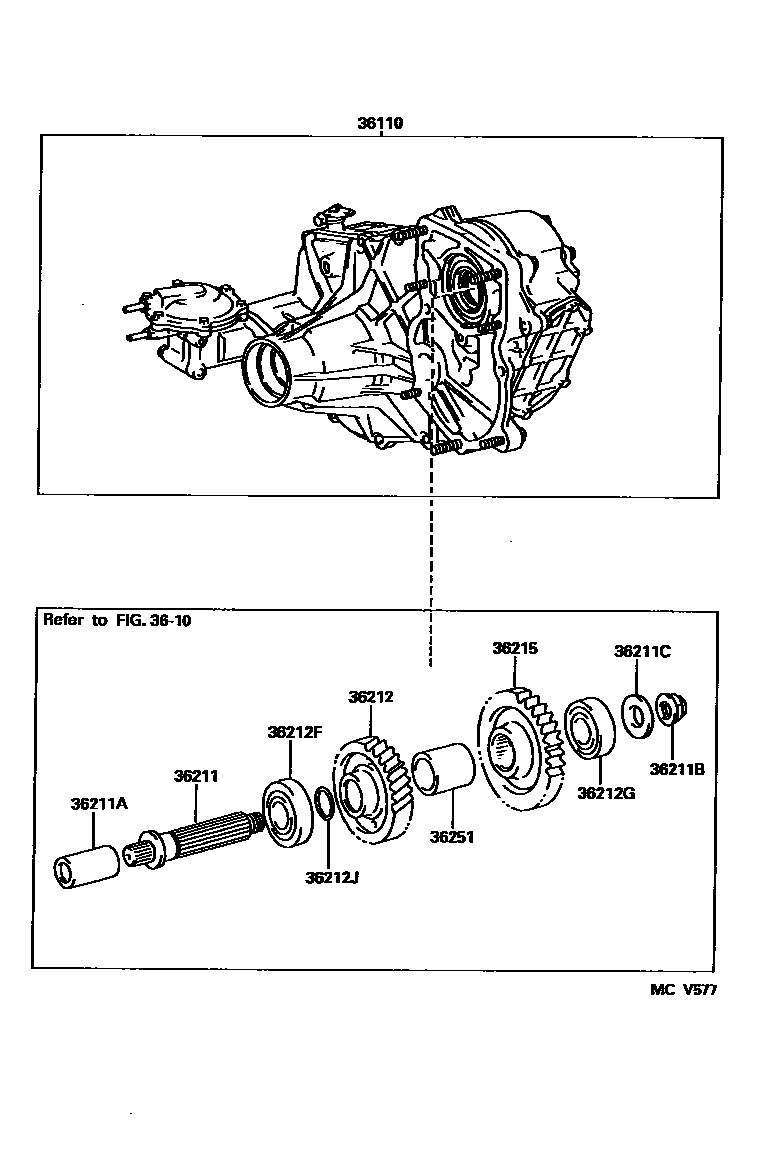

TRANSFER ASSEMBLY & GASKET KIT

0001 1 0002 1 0003 1

3610TRANSFER GEAR

→ Go to FIG 36-10

36110TRANSFER ASSY

main36100-60570iFJ70,73..4FC198411-198510

main36100-60580iBJ70,FJ7#..LHD..5F198502-198510

SMG DRIVE N=6,*MCT,W/*MW

main36100-60600iBJ7#,FJ7#,HJ75..RHD..5F198411-198502

SMG DRIVE N=6,*MCT

main36100-60620iBJ70,75,FJ7#,HJ75..LHD..4F198411-198502

SMG DRIVE N=6,*MCT

main36100-60650iFJ7#..LHD..4F198411-198502

SMG DRIVE N=7,*MCT

main36100-60660iBJ70,75,FJ70,75,HJ75..RHD..4F198411-198502

SMG DRIVE N=6,*MCT

main36100-60670iFJ70,75..RHD..4F198411-198502

SMG DRIVE N=7,*MCT

main36100-60680iFJ7#..LHD..5F..GEN198411-198502

SMG DRIVE N=7,*MCT

main36100-6A020iFJ70,75..RHD..5F..GEN198502-198510

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A030iLJ70,RJ70..RHD198411-198502

SMG R=18:6,20:6,*MCT

main36100-6A040iLJ70,RJ70..LHD198502-198510

SMG R=18:6,*MCT,W/*MW

main36100-6A050iRJ70..LHD198502-198510

SMG R=17:6,*MCT,W/*MW

main36100-6A150iRJ70..RHD..GEN198502-198510

SMG R=17:6,*MCT,W/*MW

main36100-6A170iHJ75..5F..GEN198503-198510

SOUTH AFRICA SPEC

main36100-6A180iLJ70,RJ70..RHD198402-198510

SMG R=18:6,20:6,*MCT

main36100-6A190iLJ70,RJ70..LHD198502-198510

SMG R=18:6,*MCT

main36100-6A200iRJ70..LHD198502-198510

SMG R=17:6,*MCT

main36100-6A260iRJ70..RHD..GEN198502-198510

SMG R=17:6,*MCT

main36100-6A290iBJ70,FJ7#..LHD..5F198502-198510

SMG DRIVE N=6,*MCT

main36100-6A300iBJ7#,FJ7#,HJ75..RHD..5F198502-198510

SMG DRIVE N=6,*MCT

main36100-6A320iBJ70,75,FJ7#,HJ75..LHD..4F198502-198510

SMG DRIVE N=6,*MCT

main36100-6A330iFJ7#..LHD..4F198502-198510

SMG DRIVE N=7,*MCT

main36100-6A340iBJ70,75,FJ70,75,HJ75..RHD..4F198502-198510

SMG DRIVE N=6,*MCT

main36100-6A350iRJ70..RHD..GEN198603-198606

*MCT,MALAYSIA SPEC

main36100-6A360iFJ70,75..RHD..4F198502-198510

SMG DRIVE N=7,*MCT

main36100-6A370iFJ7#..LHD..5F..GEN198502-198510

SMG DRIVE N=7,*MCT

main36100-6A390iLJ70..RHD..HT..DSL198603-198606

*MCT,MALAYSIA SPEC

main36100-6A410iHJ75..SA198510-199001

main36100-6A411iFJ70,75..RHD..5F..(GEN,SA)198802-199001

SMG DRIVE N=7,*MCT

main36100-6A420iBJ7#,FJ7#,HJ75..RHD..5F..(LX,STD)..(ARL,GEN)198510-198802

SMG DRIVE N=6,*MCT

main36100-6A421iBJ7#,FJ7#,HJ75..RHD..5F..(LX,STD)..(ARL,GEN)198802-199001

SMG DRIVE N=6,*MCT

main36100-6A440iFJ7#..LHD..5F..GEN198510-198802

SMG DRIVE N=7,*MCT

main36100-6A441iFJ7#..LHD..5F..GEN198802-199001

SMG DRIVE N=7,*MCT

main36100-6A450iBJ70,73,75,FJ7#,HJ75..LHD..5F198510-198802

SMG DRIVE N=6,*MCT

main36100-6A451iBJ70,73,75,FJ7#,HJ75..LHD..5F198802-199001

SMG DRIVE N=6,*MCT

main36100-6A460iFJ70..LHD..HT..5F..GEN198608-198802

*MCT,VENEZUELA SPEC

main36100-6A461iFJ70..LHD..HT..5F..GEN198802-199001

*MCT,VENEZUELA SPEC

main36100-6A470iFJ70,75..RHD..5F..GEN198510-198802

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A471iFJ70,75..RHD..5F..GEN198802-199001

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A480iBJ70,75,FJ70,75..RHD..5F..GEN198510-198802

SMG DRIVE N=6,*MCT,W/*MW

main36100-6A481iBJ70,75,FJ70,75..RHD..5F..GEN198802-199001

SMG DRIVE N=6,*MCT,W/*MW

main36100-6A500iFJ7#..LHD..5F..GEN198510-198802

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A501iFJ7#..LHD..5F..GEN198802-199001

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A510iBJ70,73,75,FJ7#..LHD..5F198510-198802

SMG DRIVE N=6,*MCT,W/MW

main36100-6A511iBJ70,73,75,FJ7#..LHD..5F198802-199001

SMG DRIVE N=6,*MCT,W/MW

main36100-6A530iLJ70,RJ70..LHD..(CBR,DSL)198708-199001

*MCT

main36100-6A540iFJ70,75..RHD..4F198510-198802

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A541iFJ70,75..RHD..4F198802-199001

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A550iBJ70,73,75,FJ70,75..RHD..4F198510-198802

SMG DRIVE N=6,*MCT,W/*MW

main36100-6A551iBJ70,73,75,FJ70,75..RHD..4F198802-199001

SMG DRIVE N=6,*MCT,W/*MW

main36100-6A560iFJ7#..LHD..4F198510-198802

SMG DRIVE N=7,*MCT,W/*MW

main36100-6A570iBJ70,75,FJ7#..LHD..4F198510-198802

SMG DRIVE N=6,*MCT,W/*MW

main36100-6A571iBJ70,75,FJ7#..LHD..4F198802-199001

SMG DRIVE N=6,*MCT,W/*MW

main36100-6A580iFJ70,75..RHD..4F198510-198802

SMG DRIVE N=7,*MCT

main36100-6A581iFJ70,75..RHD..4F198802-199001

SMG DRIVE N=7,*MCT

main36100-6A590iBJ70,73,75,FJ70,75,HJ75..RHD..4F198510-198802

SMG DRIVE N=6,*MCT

main36100-6A591iBJ70,73,75,FJ70,75,HJ75..RHD..4F198802-199001

SMG DRIVE N=6,*MCT

main36100-6A600iFJ7#..LHD..4F198510-198802

SMG DRIVE N=7,*MCT

main36100-6A601iFJ7#..LHD..4F198802-199001

SMG DRIVE N=7,*MCT

main36100-6A610iBJ70,75,FJ7#,HJ75..LHD..4F198510-198802

SMG DRIVE N=6,*MCT

main36100-6A611iBJ70,75,FJ7#,HJ75..LHD..4F198802-199001

SMG DRIVE N=6,*MCT

main36100-6A640iLJ70,RJ70..LHD..(CBR,DSL)198708-199001

*MCT,W/*MW

main36100-6A660iLJ70,RJ70..RHD..(LX,STD)..(CBR,DSL)198510-199001

*MCT

main36100-6A670iLJ70,RJ70..LHD..(CBR,DSL)198510-198708

*MCT

main36100-6A680iLJ70,RJ70..RHD..4F198510-199001

*MCT,W/*MW

main36100-6A690iLJ70,RJ70..LHD..(CBR,DSL)198510-198708

*MCT,W/*MW

main36100-6A700iLJ70..LX..ARL198608-199001

SMG DRIVE N=6,*MCT

main36100-6A710iLJ70..RHD..(LX,STD)..TD198512-199001

SMG DRIVE N=5,*MCT

main36100-6A720iLJ70..LHD..TD198510-199001

*MCT

main36110-60310iRJ70..RHD..GEN198411-198502

SMG R=17:6,*ELC

main36110-60370iBJ70,75,FJ7#,HJ75..LHD..4F198411-198502

SMG DRIVE N=6,*ELC

main36110-60380iFJ7#..LHD..4F198502-198510

SMG DRIVE N=7,*ELC,W/*MW

main36110-60390iBJ70,75,FJ70,75..RHD..4F198502-198510

SMG DRIVE N=6,*ELC,W/*MW

main36110-60400iFJ70,75..RHD..4F198411-198502

SMG DRIVE N=7,*ELC

main36110-60410iFJ7#..LHD..5F198502-198510

SMG DRIVE N=6,*ELC,W/*MW

main36110-60420iFJ7#..LHD..5F..GEN198502-198510

SMG DRIVE N=7,*ELC,W/*MW

main36110-60430iFJ7#..RHD..5F198411-198502

SMG DRIVE N=6,*ELC

main36110-60440iFJ70,75..RHD..5F..GEN198411-198502

SMG DRIVE N=7,*ELC

main36110-60450iBJ70..LHD..5F198411-198502

*ELC

main36110-60470iBJ7#,HJ75..RHD..5F198411-198502

*ELC

main36110-60520iLJ70,RJ70..RHD198411-198502

SMG R=18:6,20:6 *ELC

main36110-60530iLJ70,RJ70..LHD198502-198510

SMG R=18:6,*ELC,W/*MW

main36110-60540iRJ70..LHD198502-198510

SMG R=17:6,*ELC,W/*MW

main36110-60570iRJ70..RHD..GEN198502-198510

SMG R=17:6,*ELC

main36110-60680iBJ70,75,FJ7#,HJ75..LHD..4F198502-198510

SMG DRIVE N=6,*ELC

main36110-60690iFJ7#..LHD..4F198502-198510

SMG DRIVE N=7,*ELC

main36110-60700iBJ70,75,FJ70,75,HJ75..RHD..4F198502-198510

SMG DRIVE N=6,*ELC

main36110-60710iFJ70,75..RHD..4F198502-198510

SMG DRIVE N=7,*ELC

main36110-60720iFJ7#..LHD..5F198502-198510

SMG DRIVE N=6,*ELC

main36110-60730iFJ7#..LHD..5F..GEN198502-198510

SMG DRIVE N=7,*ELC

main36110-60740iFJ7#..RHD..5F198502-198510

SMG DRIVE N=6,*ELC

main36110-60750iFJ70,75..RHD..5F..GEN198502-198510

SMG DRIVE N=7,*ELC

main36110-60760iBJ70..LHD..5F198502-198510

*ELC

main36110-60770iBJ7#,HJ75..RHD..5F198502-198510

*ELC

main36110-60800iLJ70,RJ70..RHD198502-198510

SMG R=18:6,20:6,*ELC

main36110-60810iLJ70,RJ70..LHD198502-198510

SMG R=18:6,*ELC

main36110-60820iRJ70..LHD198502-198510

SMG R=17:6,*ELC

main36110-6A030iFJ70,75..RHD..5F..GEN198608-198802

SMG DRIVE N=7,*ELC

main36110-6A031iFJ70,75..RHD..5F..GEN198802-199001

SMG DRIVE N=7,*ELC

main36110-6A060iBJ7#,FJ7#,HJ75..RHD..5F..(ARL,GEN)198510-198802

SMG DRIVE N=6,*ELC

main36110-6A061iBJ7#,FJ7#,HJ75..RHD..5F..(ARL,GEN)198802-199001

SMG DRIVE N=6,*ELC

main36110-6A080iFJ7#..LHD..5F..GEN198608-198802

SMG DRIVE N=7,*ELC

main36110-6A081iFJ7#..LHD..5F..GEN198802-199001

SMG DRIVE N=7,*ELC

main36110-6A090iBJ70,73,75,FJ7#,HJ75..LHD..5F198510-198802

SMG DRIVE N=6,*ELC

main36110-6A091iBJ70,73,75,FJ7#,HJ75..LHD..5F198802-199001

SMG DRIVE N=6,*ELC

main36110-6A100iFJ70..SOT..5F..GEN198703-198802

*ELC,VENEZUELA SPEC

main36110-6A101iFJ70..LHD..5F..GEN198802-199001

*ELC,VENEZUELA SPEC

main36110-6A110iFJ70,75..RHD..5F..GEN198510-198608

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A111iFJ75..RHD..5F..GEN198802-199001

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A120iBJ70,75,FJ70,75..RHD..5F..GEN198510-198802

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A121iBJ70,75,FJ70,75..RHD..5F..GEN198802-199001

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A130iFJ70..HT..4FC..GEN198604-198708

VENEZUELA SPEC

main36110-6A140iFJ7#..LHD..5F..GEN198510-198608

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A141iFJ75..LHD..5F..GEN198802-199001

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A150iBJ70,73,75,FJ7#..LHD..5F198510-198802

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A151iBJ70,73,75,FJ7#..LHD..5F198802-199001

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A210iFJ75..RHD..4F198608-198802

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A211iFJ75..RHD..4F198802-199001

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A220iBJ70,73,75,FJ70,75..RHD..4F198510-198802

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A221iBJ70,73,75,FJ70,75..RHD..4F198802-199001

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A230iFJ75..LHD..4F198608-198802

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A231iFJ75..LHD..4F198802-199001

SMG DRIVE N=7,*ELC,W/*MW

main36110-6A240iBJ70,75,FJ7#..LHD..4F198510-198802

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A241iBJ70,75,FJ7#..LHD..4F198802-199001

SMG DRIVE N=6,*ELC,W/*MW

main36110-6A250iFJ70,75..RHD..4F198510-198802

SMG DRIVE N=7,*ELC

main36110-6A251iFJ70,75..RHD..4F198802-199001

SMG DRIVE N=7,*ELC

main36110-6A260iBJ70,73,75,FJ70,75,HJ75..RHD..4F198510-198802

SMG DRIVE N=6,*ELC

main36110-6A261iBJ70,73,75,FJ70,75,HJ75..RHD..4F198802-199001

SMG DRIVE N=6,*ELC

main36110-6A270iFJ75..LHD..4F198510-198608

SMG DRIVE N=7,*ELC

main36110-6A271iFJ7#..LHD..4F198802-199001

SMG DRIVE N=7,*ELC

main36110-6A280iBJ70,75,FJ7#,HJ75..LHD..4F198510-198802

SMG DRIVE N=6,*ELC

main36110-6A281iBJ70,75,FJ7#,HJ75..LHD..4F198802-199001

SMG DRIVE N=6,*ELC

main36110-6A330iLJ70,RJ70..RHD..(CBR,DSL)198510-199001

*ELC

main36110-6A340iLJ70,RJ70..LHD..(CBR,DSL)198510-199001

*ELC

main36110-6A350iLJ70,RJ70..RHD..4F198510-199001

*ELC,W/*MW

main36110-6A360iLJ70,RJ70..LHD..(CBR,DSL)198510-199001

*ELC,W/*MW

main36110-6A370iLJ70..RHD..TD..GEN198510-198608

SMG DRIVE N=6,*ELC

main36110-6A380iLJ70..RHD..TD198512-199001

SMG DRIVE N=5, *ELC

main36110-6A390iLJ70..LHD..TD198510-199001

*ELC

main36110-6A420iFJ73..4FC..ARL198510-198708

main36110-6A430iFJ70,73..LHD..4FC198510-198708

main36110-6A440iBJ74..4FC198510-198708

main36110-6A561iFJ7#..LHD..4F198802-199001

SMG DRIVE N=7,*MCT,W/*MW

main36110-6A830iFJ73..4FC..ARL198708-199001

main36110-6B010iFJ70,73..LHD..4FC198708-199001

main36110-6B020iFJ70..4FC..GEN198708-199001

VENEZUELA SPEC

main36110-6B030iBJ74..4FC198708-199001

main36110-6B090iLJ70,RJ70..LHD..(CBR,DSL)..GEN198708-199001

*ELC

main36110-6B100iLJ70,RJ70..LHD..(CBR,DSL)..GEN198708-199001

*ELC,W/*MW

36211SHAFT, TRANSFER INPUT

main36211-60010iLJ70,RJ70..CBR,DSL198411-198802

main36211-60011iLJ70,RJ70..CBR,DSL198802-199001

main36211-60020iLJ70..TD198510-198802

main36211-60021iLJ70..TD198804-199001

36211AYOKE, TRANSMISSION SLEEVE

main33399-60010iLJ70,RJ70..CBR,DSL198411-199001

main33399-60020iLJ70..TD198510-199001

36211BNUT (FOR TRANSFER INPUT SHAFT)

main90179-26002iLJ70,RJ70198411-198603

main90179-26004iLJ70,RJ70198603-199001

36211CWASHER, PLATE (FOR TRANSFER INPUT SHAFT)

main90201-26003iLJ70,RJ70198411-198603

36212GEAR, TRANSFER INPUT

main36212-60041iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198411-198510

main36212-60070iBJ74,FJ70,73..4FC198411-198511

N=34

main36212-60080iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198510-199001

main36212-60090iBJ74,FJ70,73..4FC198511-199001

N=32

36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

main90363-35020iLJ70,RJ70..CBR,DSL198411-198603

main90363-35022iLJ70..TD198510-198603

36212GBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR)

main90363-35013iBJ7#,FJ7#,HJ75,LJ70,RJ70198411-199001

36212JRING, O (FOR TRANSFER INPUT GEAR)

main90301-34005iBJ7#,FJ7#,HJ75,LJ70,RJ70..MTM198802-199001

36215GEAR, POWER TAKE-OFF DRIVE

main36215-60030iBJ70,75,FJ7#,LJ70,RJ70..MTM..(GEN,ME)198502-198510

W/MECHANICAL WINCH

36251SPACER, TRANSFER INPUT SHAFT

main36251-60030iBJ7#,FJ7#,HJ75,LJ70,RJ70198510-199001

main36251-60050iBJ7#,FJ7#,HJ75,LJ70,RJ70198502-198510

12 parts on this diagram · 3 diagrams in section
