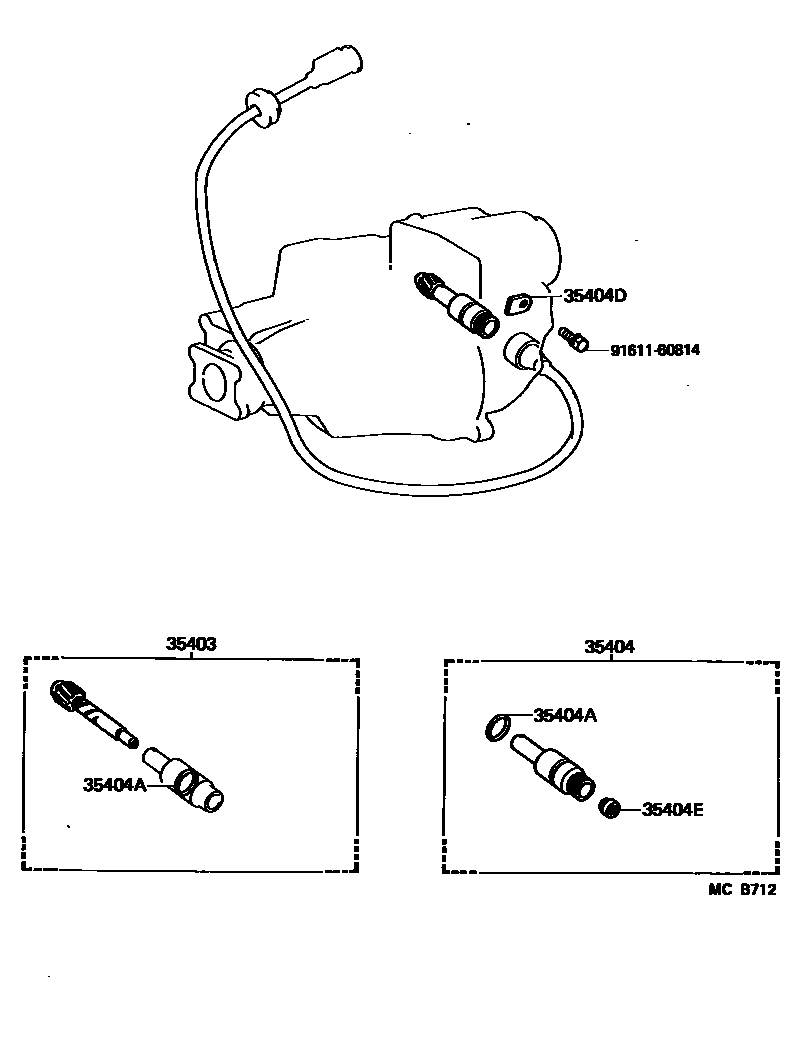

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69016iFJ70..4FC..GEN198510-199001

SMG R=17:6

main33403-69065iFJ70..HT..4FC..GEN198604-199001

SMG R=18:6,VENEZUELA

main33403-69075iBJ74,FJ70,73..4FC198411-199001

SMG R=16:6

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iBJ74,FJ70,73..4FC198411-199001

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iBJ74,FJ70,73..4FC198607-199001

main90301-18018iBJ74,FJ70,73..4FC198411-198607

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iBJ74,FJ70,73..4FC198411-199001

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBJ74,FJ70,73..4FC198411-199001

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
