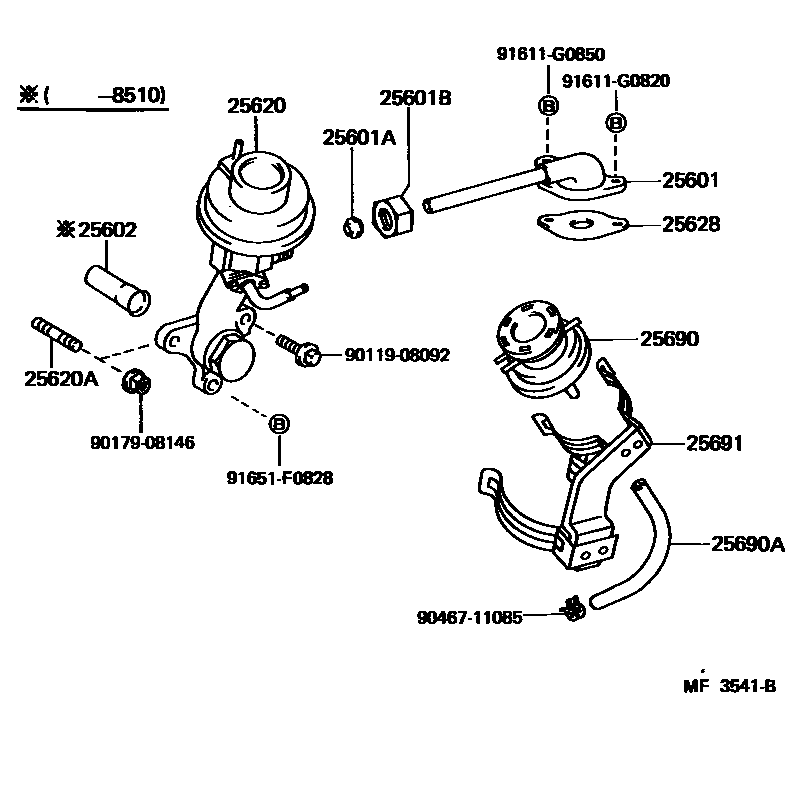

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i22R..RJ70..ARL198411-199001

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16044i22R..RJ70..ARL198411-199001

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22081i22R..RJ70..ARL198411-199001

25602PIPE SUB-ASSY, EGR, NO.2

main25612-37010i22R..RJ70..ARL198411-198510

25620VALVE ASSY, EGR

main25620-35090i22R..RJ70..ARL198510-199001

main25620-37100i22R..RJ70..ARL198411-198510

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08207i22R..RJ70..ARL198411-199001

25628GASKET, EGR INLET

main25628-35030i22R..RJ70..ARL198808-199001

main25628-38010i22R..RJ70..ARL198411-198808

25690MODULATOR ASSY, EGR VACUUM

main25870-35060i22R..RJ70..ARL198411-198510

main25870-35090i22R..RJ70..ARL198510-198705

main25870-35100i22R..RJ70..ARL198705-199001

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90910-05147i22R..RJ70..ARL198411-199001

25691BRACKET, EGR VACUUM MODULATOR

main25691-35010i22R..RJ70..ARL198411-199001

9011908092

main90119-08092

9017908146

main90179-08146

9046711085

main90467-11085

91611G0820

main91611-G0820

91611G0850

main91611-G0850

91651F0828

main91651-F0828

16 parts on this diagram · 1 diagram in section
