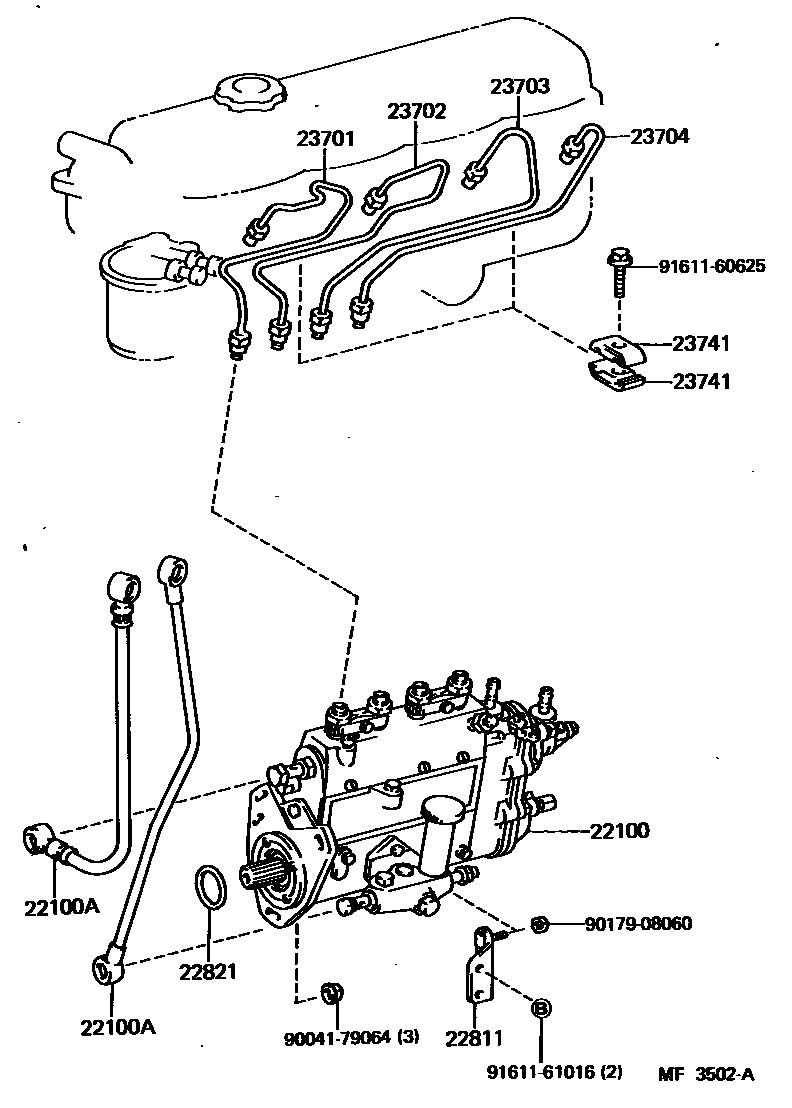

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54262i2LT..LJ70..RHD198510-198607

main22100-54263i2LT..LJ70..RHD198607-199001

main22100-54310i2L..LJ70198411-198607

sub22100-54340

main22100-54311i2L..LJ70198607-199001

sub22100-54341

main22100-54340i2L..LJ70198411-198607

W/TACHO METER PICK UP

main22100-54341i2L..LJ70198607-199001

W/TACHO METER PICK UP

main22100-54360i2L..LJ70..4F;2L..LJ70..LHD..5F198411-198607

W/HAC

main22100-54361i2L..LJ70198607-199001

W/HAC

main22100-54441i2L..LJ70..RHD..HT198710-199001

MALAYSIA SPEC

main22100-54561i2LT..LJ70..LHD198510-198607

main22100-54562i2LT..LJ70..LHD198607-199001

main22100-58022i3B..BJ70,73,75198411-198808

W/EDIC

main22100-58022i3B..BJ70..RHD..5F..GEN198411-198608

IRELAND SPEC

main22100-58032i3B..BJ70,73,75..GEN,ME198411-198808

W/HAC & EDIC

main22100-58042i3B..BJ70,73,75..GEN,ME198411-198808

W/HAC

main22100-58052i3B..BJ70,73,75..GEN,ME198411-198808

main22100-58360i13BT..BJ74..5F198510-199001

main22100-58370i13BT..BJ74..4FC198510-199001

main22100-58660i3B..BJ70,73,75198808-199001

main22100-58670i3B..BJ70,73,75..GEN,ME198808-199001

W/HAC

main22100-58680i3B..BJ70..SOT198808-199001

24V

main22100-68011i2H..HJ75..GEN198411-199001

main22100-68031i2H..HJ75..GEN198411-199001

W/HAC

main22100-68041i2H..HJ75..GEN198411-199001

W/HAC & EDIC

main22100-68101i2H..HJ75198411-199001

W/EDIC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56060i13BT,3B..BJ7#198411-199001

PIPE L=300

main23801-68030i2H..HJ75198411-199001

PIPE L=336,FEED PUMP TO FILTER

main23802-56040i13BT,3B..BJ7#198411-199001

HOSE L=210

main23802-68020i2H..HJ75198411-199001

PIPE L=216,FILTER TO PUMP SIDE

main90447-14028i2L#..LJ70198411-199001

main90447-14041i2LT..LJ70..RHD198510-198608

BATTERY=NX200

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L#..LJ70198411-198808

sub22811-54041

main22811-54041i2L#..LJ70198808-199001

sub22811-54042

main22811-56011i3B..BJ70,73,75198411-198808

main22811-56040i13BT..BJ74198510-199001

main22811-56050i3B..BJ70,73,75198808-199001

main22811-68010i2H..HJ75198411-199001

22821GASKET, INJECTION PUMP

main90301-49003i3B..BJ70,73,75198808-199001

main90301-77001i3B..BJ70,73,75198411-198808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54072i2L#..LJ70198903

main23701-54082i2L#..LJ70198411-198903

sub23701-54072

main23701-56030i3B..BJ70,73,75198411-198808

main23701-56060i13BT..BJ74198510-199001

main23701-58010i3B..BJ70,73,75198808-199001

main23701-68010i2H..HJ75198411-199001

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54071i2L#..LJ70198903

main23702-54081i2L#..LJ70198411-198903

sub23702-54071

main23702-56030i3B..BJ70,73,75198411-198808

main23702-56060i13BT..BJ74198510-199001

main23702-58010i3B..BJ70,73,75198808-199001

main23702-68010i2H..HJ75198411-199001

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54072i2L#..LJ70198903

main23703-54082i2L#..LJ70198411-198903

sub23703-54072

main23703-56020i3B..BJ70,73,75198411-198808

main23703-56060i13BT..BJ74198510-199001

main23703-58010i3B..BJ70,73,75198808-199001

main23703-68010i2H..HJ75198411-199001

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54082i2L#..LJ70198411-199001

sub23704-54072

main23704-56020i3B..BJ70,73,75198411-198808

main23704-56060i13BT..BJ74198510-199001

main23704-58010i3B..BJ70,73,75198808-199001

main23704-68010i2H..HJ75198411-199001

23741CLAMP, INJECTION PIPE, NO.1

main23741-48010i2H..HJ75198411-199001

main23741-56010i2L#..LJ70198411-199001

9004179064

main90041-79064

9017908060

main90179-08060

9161160625

main91611-60625

9161161016

main91611-61016

13 parts on this diagram · 5 diagrams in section
