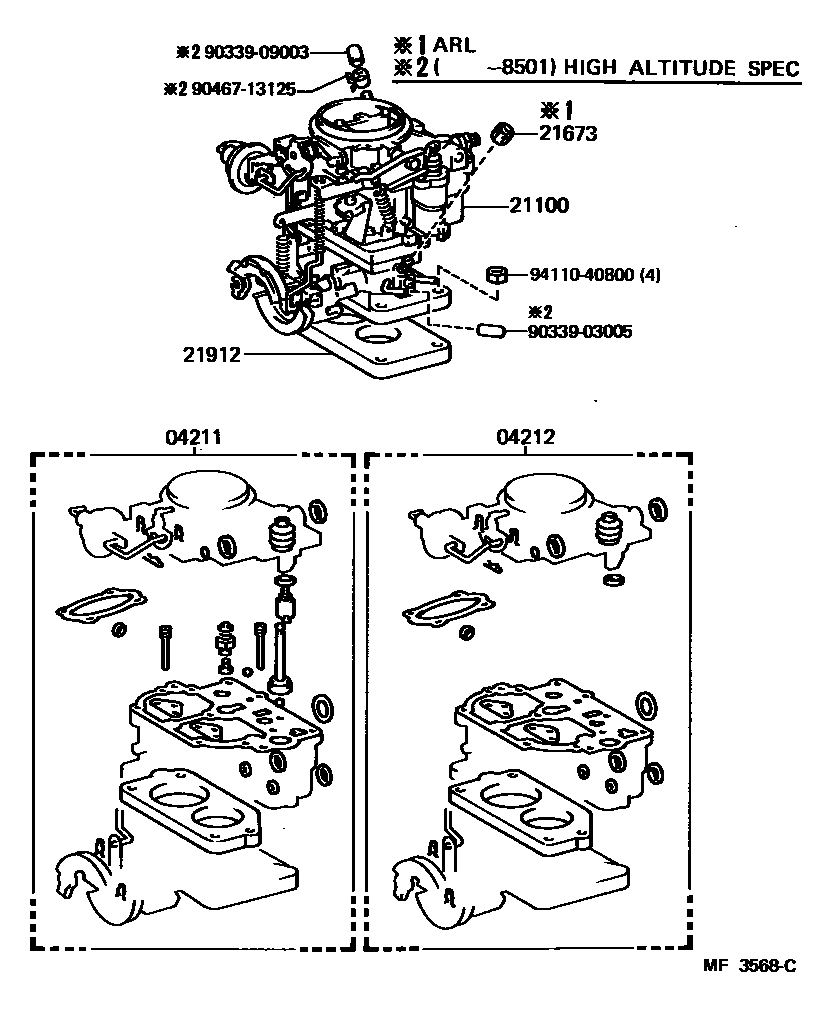

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-35070i22R..RJ70..ARL198411-198510

main04211-35090i22R..RJ70..GEN,ME198411-199001

main04211-35400i22R..RJ70..ARL198510-198708

main04211-35420i22R..RJ70..ARL198708-199001

main04211-61190i3F..FJ7#..GEN; 3F..FJ7#..ME198411-198501

*47; HIGH ALTITUDE,W/OUTER VENT

main04211-61200i3F..FJ7#..GEN,SA198411-198805

main04211-61210i3F..FJ7#..5F..ME198411-199001

main04211-61220i3F..FJ70,73..4FC..ME198411-199001

main04211-61230i3F..FJ7#..ARL198411-198805

main04211-61250i3F..FJ7#..GEN; 3F..FJ7#..GEN,SA198805-198808

W/OUTER VENT CONTROL

main04211-61251i3F..FJ7#..GEN; 3F..FJ7#..GEN,SA198808-199001

W/OUTER VENT CONTROL

main04211-61260i3F..FJ7#..ARL198805-199001

04212GASKET KIT, CARBURETOR

main04212-35030i22R..RJ70198411-198510

main04212-35400i22R..RJ70..ARL198510-198708

main04212-35410i22R..RJ70..ARL198708-199001

main04212-61030i3F..FJ7#198411-199001

21100CARBURETOR ASSY

main21100-35350i22R..RJ70..ARL198411-198510

main21100-35370i22R..RJ70..GEN,ME198411-199001

main21100-35400i22R..RJ70..ARL198510-198708

main21100-35500i22R..RJ70..ARL198708-199001

main21100-61190i3F..FJ7#..MTM..(GEN,SA)198411-198805

main21100-61191i3F..FJ7#..MTM..(GEN,SA)198805-199001

main21100-61200i3F..FJ7#..5F..ME198411-198911

main21100-61220i3F..FJ70..4FC..GEN198411-198805

main21100-61221i3F..FJ70..4FC..GEN198805-199001

main21100-61230i3F..FJ70,73..4FC..ME198411-198911

main21100-61250i3F..FJ7#..ARL198411-198805

main21100-61251i3F..FJ7#..ARL198805-199001

main21100-61270i3F..FJ7#..GEN198411-198501

HIGH ALTITUDE,W/OUTER VENT

main21100-61271i3F..FJ7#..GEN198805-199001

W/OUTER VENT CONTROL

main21100-61300i3F..FJ7#..5F..ME198911

main21100-61320i3F..FJ70,73..4FC..ME198911

21673CAP, IDLE LIMIT

main21673-13280i22R..RJ70; 3F..FJ7#..ARL198411-198510

21912INSULATOR, CARBURETOR HEAT

main21912-35030i22R..RJ70..ARL198411-199001

main21912-37030i22R..RJ70..GEN,ME198411-199001

main21912-61050i3F..FJ7#198411-199001

9033903005

main90339-03005

9033909003

main90339-09003

9046713125

main90467-13125

9411040800

main94110-40800

9 parts on this diagram · 2 diagrams in section
