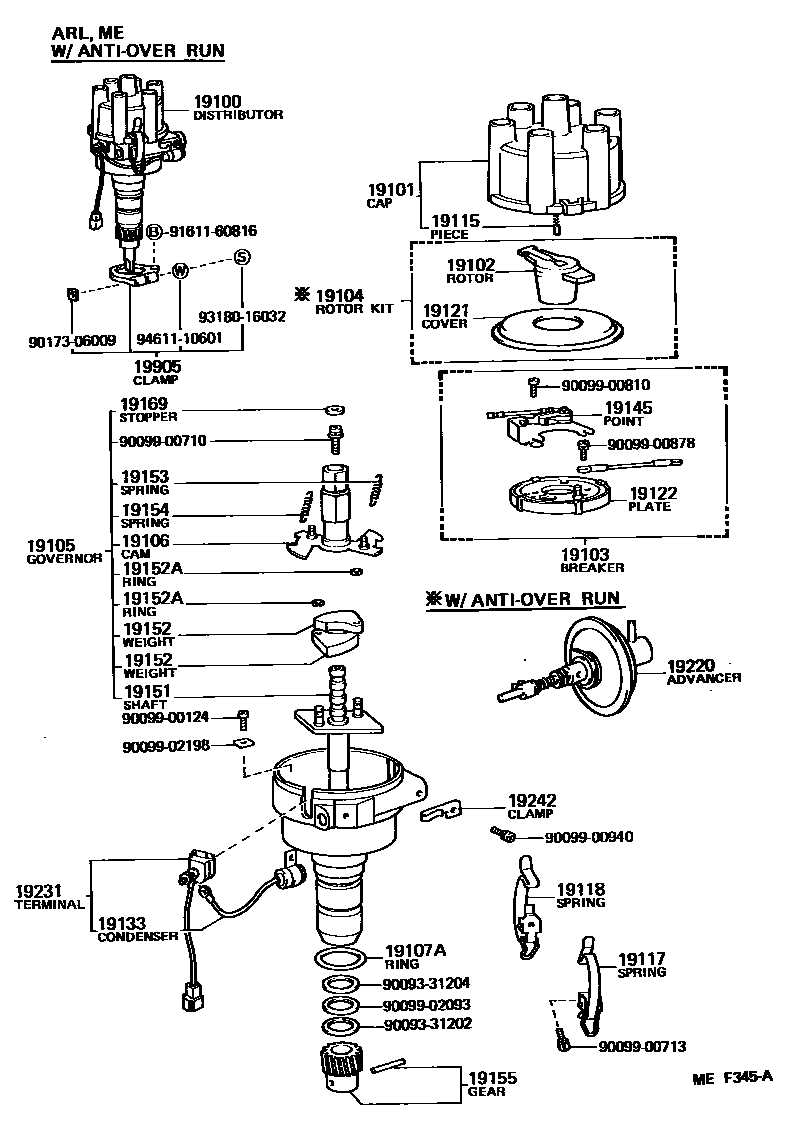

DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1

19100DISTRIBUTOR ASSY

main19100-35140i22R..RJ70..ARL198510-199001

main19100-35160i22R..RJ70..ARL198411-198510

main19100-35170i22R..RJ70..GEN,ME198411-199001

main19100-61150i3F..FJ7#..ME198411-198505

*47

main19100-61160i3F..FJ7#..ARL198505-199001

main19100-61180i3F..FJ7#..5F..ME; 3F..FJ7#..MTM..(GEN,ME)198411-198505

*47; W/ANTI-OVER RUN

main19100-61210i3F..FJ70,73..4FC..ME198411-199001

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-35120i22R..RJ70..ARL198411-198808

main19101-35140i22R..RJ70..ARL198808-199001

main19101-35170i22R..RJ70..GEN,ME198808-199001

main19101-37051i22R..RJ70..GEN,ME198411-198808

main19101-41010i3F..FJ7#..ME198411-198510

*47

main19101-45060i3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16060i22R..RJ70..ARL198510-199001

main19102-33012i22R..RJ70..GEN,ME198411-199001

main19102-35160i22R..RJ70..ARL198507-198510

main19102-41010i3F..FJ7#..GEN,SA198411-199001

main19102-45060i3F..FJ7#..ARL; 3F..FJ70,73..4FC..ME198608-199001

main19102-61180i3F..FJ7#..MTM..(GEN,ME)198411-198505

W/ANTI-OVER RUN

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-37030i22R..RJ70..GEN,ME198411-199001

main19103-41030i3F..FJ7#..GEN,SA198411-199001

main19103-61023i3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19104ROTOR KIT

main19104-61180i3F..FJ7#..MTM..(GEN,ME)198411-198505

W/ANTI-OVER RUN

main19104-61181i3F..FJ7#..MTM..(GEN,ME)198505-199001

W/ANTI-OVER RUN

19105GOVERNOR SUB-ASSY

main19105-61150i3F..FJ7#..ME198411-198510

*47

main19105-61160i3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

main19105-61210i3F..FJ70,73..4FC..ME198411-199001

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-25021i22R..RJ70..GEN,ME198411-199001

main19106-41010i3F..FJ7#..ME198411-198510

*47

main19106-41110i3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i22R..RJ70; 3F..FJ7#198411-199001

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i22R..RJ70; 3F..FJ7#198411-199001

19117SPRING, DISTRIBUTOR CAP, A

main19117-41010i3F..FJ7#..ME198411-198510

*47

main19117-60080i3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19118SPRING, DISTRIBUTOR CAP, B

main19118-60070i3F..FJ7#198411-199001

19121COVER, DUST PROOF

main19121-30030i3F..FJ7#..GEN,SA198411-199001

main19121-38040i22R..RJ70..GEN,ME198411-199001

main19121-38210i22R..RJ70..ARL198411-199001

main19121-45060i3F..FJ7#..ARL; 3F..FJ70,73..4FC..ME198608-199001

main19121-61160i3F..FJ7#..MTM..(GEN,ME)198411-198505

W/ANTI-OVER RUN

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-37030i22R..RJ70..GEN,ME198411-199001

main19122-39041i3F..FJ7#..ME198411-198510

*47

main19122-61023i3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

main19122-88262i22R..RJ70..ARL198411-199001

19133CONDENSER, DISTRIBUTOR

main19133-35170i22R..RJ70..GEN,ME198808-199001

main19133-60040i3F..FJ7#..ME198411-198510

*47

main90099-52050i3F..FJ7#..ARL; 3F..FJ70,73..4FC..ME198608-199001

main90099-52068i22R..RJ70..GEN,ME198411-198808

19145POINT, DISTRIBUTOR

main19145-26060i3F..FJ7#198411-199001

main19145-37030i22R..RJ70..GEN,ME198411-199001

19151SHAFT, GOVERNOR

main19151-61150i3F..FJ7#..ME198411-198510

*47

main19151-61160i3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19152WEIGHT, GOVERNOR

main19152-44170×2i22R..RJ70..GEN,ME198411-199001

main19152-61150×2i3F..FJ7#..ME198411-198510

*47

main19152-63010×2i22R..RJ70..ARL; 3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07109×2i22R..RJ70..GEN,ME198411-199001

main90099-07122×2i22R..RJ70..ARL; 3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19153SPRING, GOVERNOR, A

main19153-35140i22R..RJ70..ARL198510-199001

main19153-35160i22R..RJ70..ARL198411-198510

main19153-35170i22R..RJ70..GEN,ME198411-199001

main19153-61150i3F..FJ7#..GEN; 3F..FJ7#..ME198411-198504

*47

main19153-61151i3F..FJ7#..GEN,SA198504-199001

main19153-61160i3F..FJ7#..5F..(ARL,ME)198411-198608

main19153-61210i3F..FJ70,73..4FC..ME198411-199001

19154SPRING, GOVERNOR, B

main19153-61210i3F..FJ70,73..4FC..ME198411-199001

main19154-35140i22R..RJ70..ARL198510-199001

main19154-35160i22R..RJ70..ARL198411-198510

main19154-35170i22R..RJ70..GEN,ME198411-199001

main19154-61150i3F..FJ7#..GEN; 3F..FJ7#..ME198411-198504

*47

main19154-61151i3F..FJ7#..GEN,SA198504-199001

main19154-61160i3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-60040i3F..FJ7#198411-199001

19169STOPPER, CAM GREASE

main19169-32010i22R..RJ70; 3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..(GEN,ME)198411-198705

W/ANTI-OVER RUN

main19169-63011i22R..RJ70; 3F..FJ7#..ARL,ME; 3F..FJ7#..MTM..GEN198705-199001

W/ANTI-OVER RUN

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-35140i22R..RJ70..ARL198510-199001

main19220-35160i22R..RJ70..ARL198411-198510

main19220-35170i22R..RJ70..GEN,ME198411-199001

main19220-61150i3F..FJ7#..ME198411-198510

*47

main19220-61160i3F..FJ7#..MTM..(GEN,ME)198411-199001

W/ANTI-OVER RUN

main19220-61210i3F..FJ70,73..4FC..ME198411-199001

19231TERMINAL, DISTRIBUTOR

main19132-61023i3F..FJ7#..ARL; 3F..FJ70,73..4FC..ME198608-199001

main19231-24140i22R..RJ70..GEN,ME198411-199001

main19231-45020i3F..FJ7#..GEN,SA198411-199001

19242CLAMP, CORD

main19242-26250i3F..FJ7#198411-199001

main19242-37080i22R..RJ70..ARL198411-199001

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19905-40010i3F..FJ7#198411-199001

9009331202

main90093-31202

9009331204

main90093-31204

9009900124

main90099-00124

9009900710

main90099-00710

9009900713

main90099-00713

9009900810

main90099-00810

9009900878

main90099-00878

9009900940

main90099-00940

9009902093

main90099-02093

9009902198

main90099-02198

9017306009

main90173-06009

9161160816

main91611-60816

9318016032

main93180-16032

9461110601

main94611-10601

40 parts on this diagram · 4 diagrams in section
