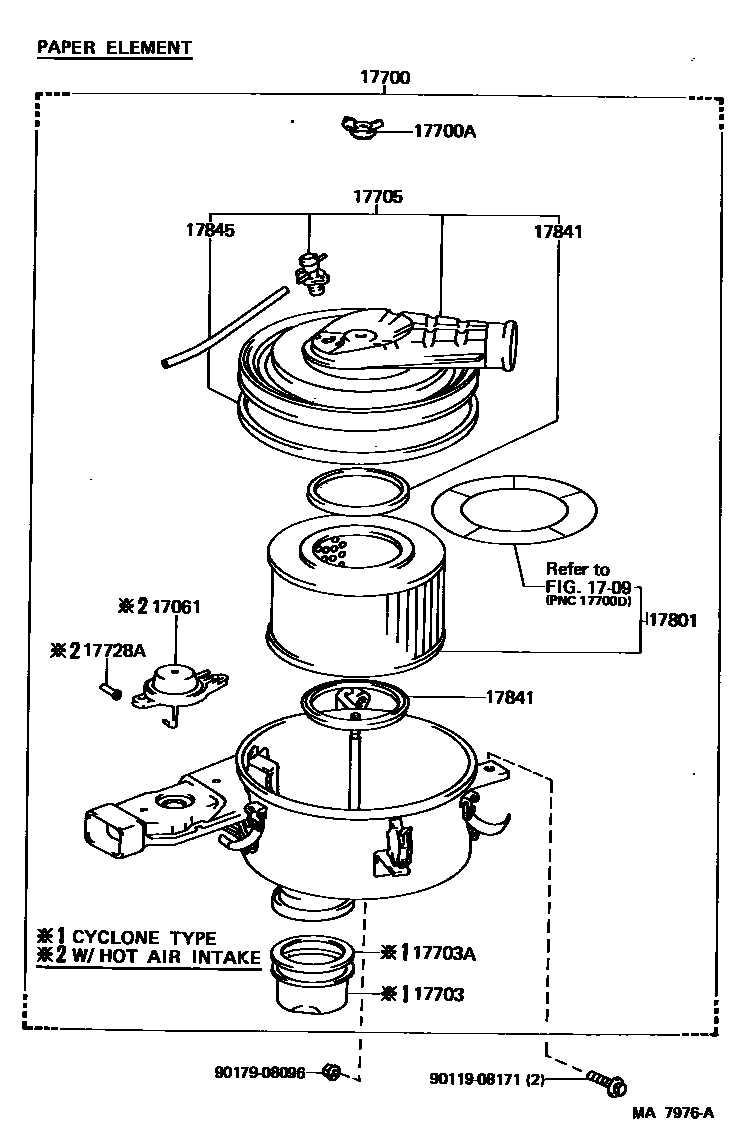

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0010 1 0014 1 0016 1 0017 1 0018 1 0019 1

17061DIAPHRAGM SUB-ASSY

main17061-37010i22R..RJ70..LHD..GEN198411-199001

W/HOT AIR INTAKE

main17061-61030i3F..FJ7#..GEN198411-199001

W/HOT AIR INTAKE

1709

17700CLEANER ASSY, AIR

main17700-35180i22R..RJ70..LHD..GEN198411-199001

W/HOT AIR INTAKE

main17700-35190i22R..RJ70..LHD..GEN198411-199001

main17700-35200i22R..RJ70198411-198510

CYCLONE TYPE

main17700-35270i22R..RJ70198510-198608

CYCLONE TYPE

main17700-35271i22R..RJ70198608-199001

CYCLONE TYPE

main17700-54320i2L..LJ70198411-198510

main17700-54321i2L#..LJ70198510-198608

main17700-54400i2L#..LJ70198608-199001

main17700-58160i3B..BJ70,75..GEN198411-198608

main17700-58170i13BT,3B..BJ7#198411-198608

CYCLONE TYPE

main17700-58180i3B..BJ70,73,75..GEN198411-199001

OIL BATH

main17700-58200i3B..BJ70,73,75..GEN198608-199001

main17700-58210i13BT,3B..BJ7#198608-199001

CYCLONE TYPE

main17700-61150i3F..FJ7#..MTM..GEN198411-198608

main17700-61151i3F..FJ7#..MTM..GEN198608-199001

main17700-61160i2H..HJ75198411-198608

CYCLONE TYPE

main17700-61161i2H..HJ75198608-199001

CYCLONE TYPE

sub17700-17061

main17700-61170i2H..HJ75..GEN198411-199001

OIL BATH

main17700-61180i3F..FJ7#..5F..ME198411-198510

SCHNORKEL TYPE & CYCLONE TYPE

main17700-61181i13BT,3B..BJ7#198608-199001

SCHNORKEL TYPE & CYCLONE TYPE

sub17700-17071

main17700-61190i3B..BJ70,73,75..GEN,ME198411-198808

SCHNORKEL TYPE & OIL BATH

main17700-61200i3F..FJ7#..GEN198411-198608

W/HOT AIR INTAKE & CYCLONE

sub17700-61290

main17700-61201i3F..FJ7#..GEN198608-199001

W/HOT AIR INTAKE & CYCLONE

main17700-68130i2H..HJ75..GEN198411-198608

main17700-68131i2H..HJ75..GEN198608-199001

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i22R..RJ70..LHD..GEN198411-199001

main90175-08008i2H..HJ75198411-199001

CYCLONE,OIL BATH

main94271-00800i2L#..LJ70198411-199001

CYCLONE TYPE

17703CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

main17703-68010i2H..HJ75198411-199001

CYCLONE TYPE

sub17703-17010

17703AGASKET(FOR BOTTOM AIR CLEANER FILTER CASE)

main90430-98001i2H..HJ75198411-199001

CYCLONE TYPE

17705CAP SUB-ASSY, AIR CLEANER

main17705-35060i22R..RJ70..LHD..GEN198411-199001

main17705-61080i3F..FJ7#..MTM..GEN198411-199001

main17705-61090i2H..HJ75198411-199001

CYCLONE TYPE

main17705-61100i3B..BJ70,73,75..GEN198411-199001

OIL BATH

main17705-61110i3F..FJ7#..GEN198411-199001

W/HOT AIR INTAKE

17728VALVE, THERMOSTATIC

main17728-24010i22R..RJ70..LHD..GEN198411-198608

W/HOT AIR INTAKE

main17728-24011i22R..RJ70..LHD..GEN198608-199001

W/HOT AIR INTAKE

17728ABUSH

main90386-03001i22R..RJ70..LHD..GEN198411-199001

W/HOT AIR INTAKE

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31050i2L#..LJ70198411-198608

CYCLONE TYPE

main17801-37010i22R..RJ70..LHD..GEN198411-199001

sub17801-41090

main17801-54080i2L#..LJ70198608-199001

CYCLONE TYPE

main17801-61030i2H..HJ75198608-199001

main17801-68010i2H..HJ75..GEN198411-198808

OIL BATH

main17801-68020i2H..HJ75198411-198608

17841GASKET, FILTER ELEMENT

main17841-41050×2i22R..RJ70..LHD..GEN198411-199001

main17841-60011×2i3F..FJ7#..MTM..GEN198411-198708

main17841-68010×2i2H..HJ75198411-199001

CYCLONE TYPE

main17841-68040i3B..BJ70,73,75..GEN198808-199001

OIL BATH

17845GASKET, AIR CLEANER CAP

main17845-61011i2H..HJ75198411-199001

*G,L=933

9011908171

main90119-08171

9017908096

main90179-08096

14 parts on this diagram · 13 diagrams in section
