RADIATOR & WATER OUTLET
1605
16331ATHERMOSTAT
*WAX 82-95
*WAX 88-100
*WAX 88-100
16331FCAP SUB-ASSY(FOR WATER OUTLET)
sub16401-54750
16333HOUSING, WATER OUTLET
W/HEATER
*47 & W/COOLER
*47
sub16333-58050
16343GASKET, WATER OUTLET HOUSING
sub16343-54021
sub16343-56022
sub16343-56022
sub16343-61020
sub16343-68020
16361FAN
IRELAND SPEC
7BLADES OD=380
sub16361-41071
sub16361-54020
OD=410,6BLADES
OD=430,8BLADES,W/COOLER
OD=450,7BLADES
16365SPACER, FAN
16400RADIATOR ASSY
sub16400-35231
sub16400-35232
sub16400-54331
sub16400-54332
sub16400-54491
VENEZUELA SPEC
*AXC=K082,K084,K085,*FGR=37:9
SOUTH AFRICA SPEC
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=1800(*H,L=960)
L=1800(*H,L=480),NO.1,NO.2
L=1000(*H,L=300)
L=600(*H,L=270),NO.1,NO.2
L=1000(*H,L=520),NO.1,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=1450(*H,L=220)
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub96111-10500
sub90467-37003
sub90467-37005
sub90467-41002
16572HOSE, RADIATOR, OUTLET
WATER PUMP SIDE
RADIATOR SIDE
RADIATOR SIDE
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
PIPE SIDE
RADIATOR SIDE
WATER PUMP SIDE
RADIATOR SIDE
WATER PUMP SIDE
WATER PUMP SIDE
16582BRACKET, RADIATOR, NO.1
16701SHROUD SUB-ASSY, FAN
IRELAND SPEC
OD=430,8BLADES,W/COOLER
OD=450,7BLADES
8401
9017906070
main90179-06070
9017908026
main90179-08026
9017908088
main90179-08088
9017908096
main90179-08096
9020108036
main90201-08036
9034112006
main90341-12006
9043012221
main90430-12221
9046208033
main90462-08033
9046400381
main90464-00381
9046709022
main90467-09022
9161160822
main91611-60822
9161160825
main91611-60825
9161160860
main91611-60860
9161161020
main91611-61020
9165140816
main91651-40816
9165140835
main91651-40835
9165161025
main91651-61025

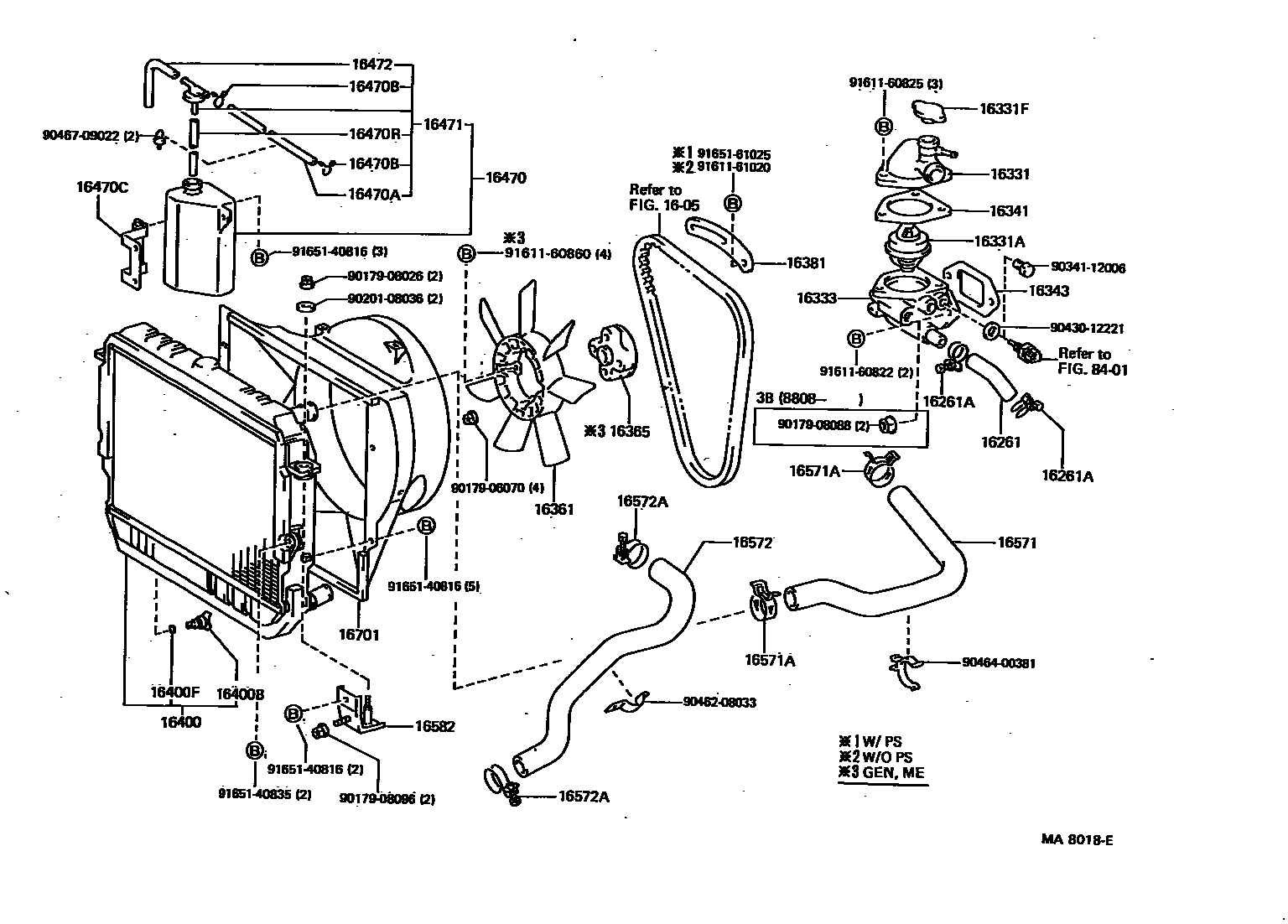

46 parts on this diagram · 8 diagrams in section
