SHORT BLOCK ASSEMBLY

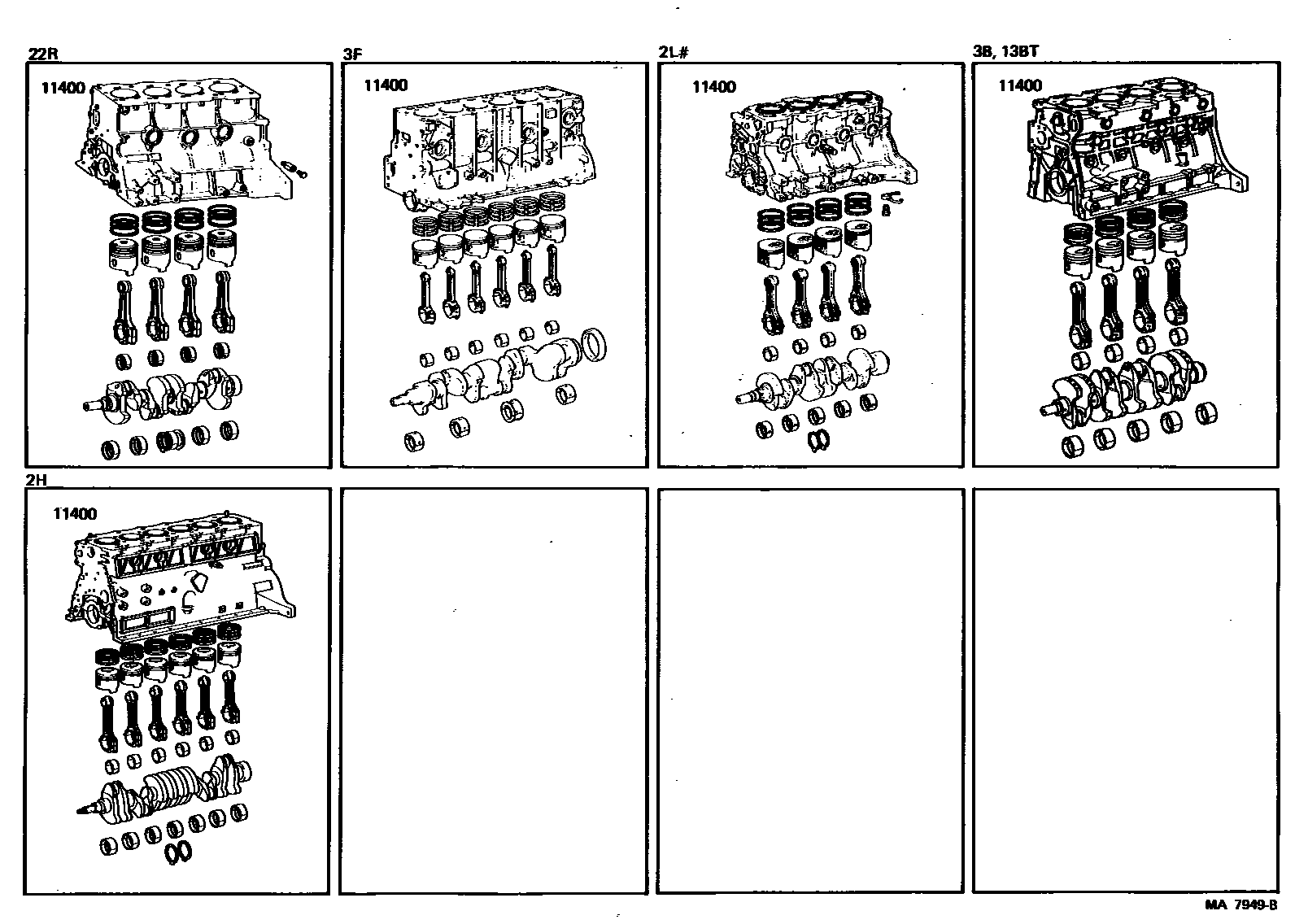

Parts diagram

11400BLOCK ASSY, SHORT

main11400-35040i198411-198510

main11400-35041i198602-198608

main11400-35042i198608-198801

main11400-35043i198801-199001

main11400-35050i198510-198602

main11400-35051i198602-198607

main11400-35052i198607-198801

main11400-35053i198801-199001

main11400-54042i198510-198805

main11400-54043i198805-198807

main11400-54044i198807-199001

main11400-54061i198411-198805

main11400-54062i198805-198807

main11400-54063i198807-199001

main11400-54090i198510-198805

main11400-54091i198805-198807

main11400-54092i198807-199001

main11400-58030i198510-198808

main11400-58040i198411-198808

main11400-58050i198808

main11400-58070i198808-199001

main11400-61050i198411-198610

main11400-61051i198610-198704

main11400-61052i198704-198708

main11400-61120i198708-199001

main11400-68020i198411-199001

1 parts on this diagram · 1 diagram in section
