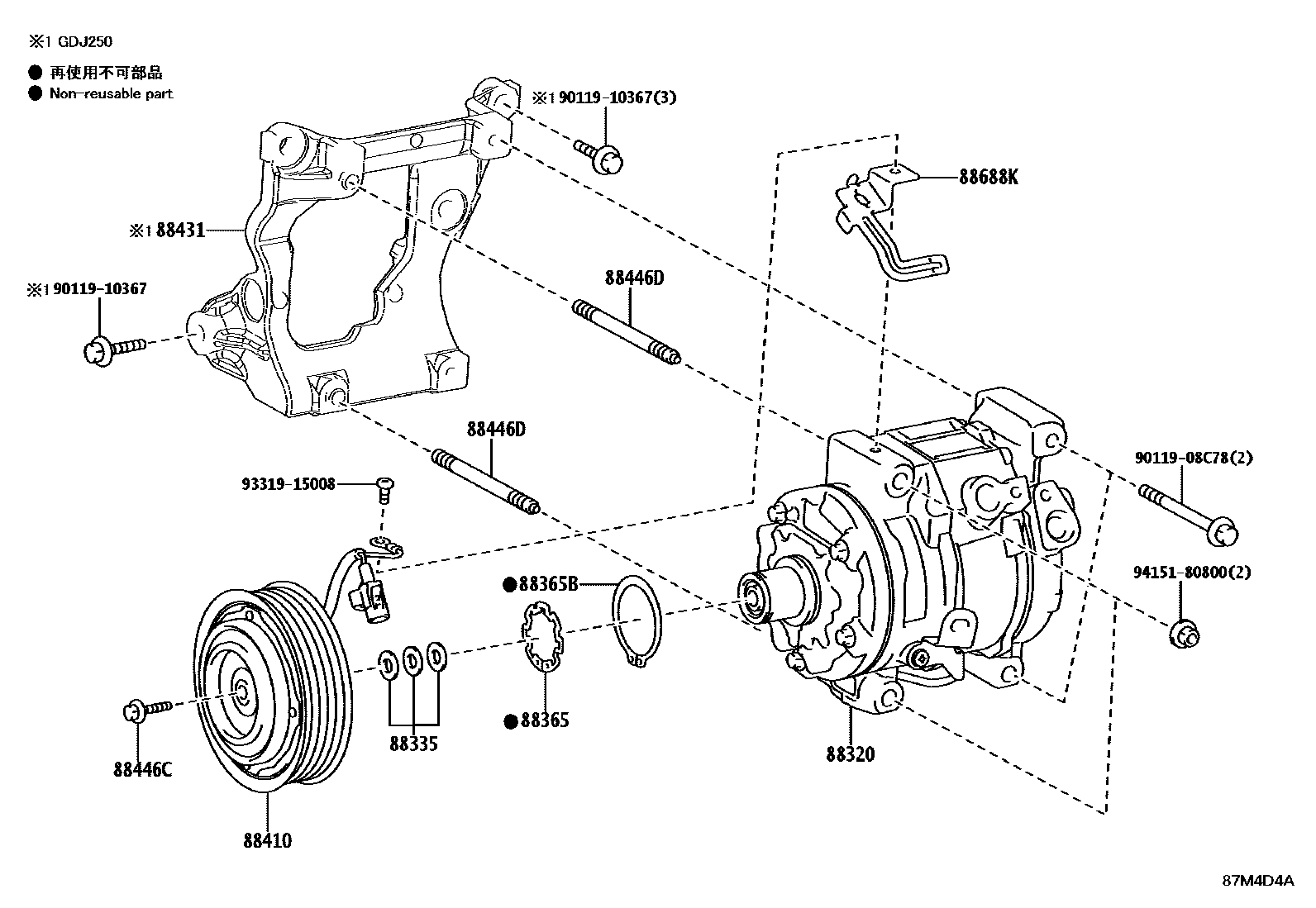

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-60D90iTRJ250202401

main88320-60E10iTJA250..L..(GEN,RUS)202404

main88320-60E20supersedes 88320-60E40iTJA250..L..GCC202404

main88320-60E30iTJA250..(A,R,U)..(GEN,RUS)202401

main88320-60E50supersedes 88320-60E80iGDJ250..RHD..(A,R,U)..EUR; GDJ250..RHD..L..EUR202407-202509

REAR AIR CONDITIONER-WITH

main88320-60E60iGDJ250..L..(GEN,RUS,SA)202404

main88320-60E70supersedes 88320-60F20iGDJ250..L..GCC202404

main88320-60F10iGDJ251..U;GDJ250..(A,R,U)..(GEN,RUS,SA)202401

main88320-60D70iTRJ250..R..RUS;TRJ250..GCC,GEN202401

REAR AIR CONDITIONER-WITH

main88320-60E80iGDJ251..A202408

REAR AIR CONDITIONER-WITHOUT

88335GASKET KIT, OVERHAUL

main88335-14020iGDJ250..RHD..EUR202401-202509

88365RING, SNAP

main90099-07065iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

88365BRING, SNAP, NO.2

main90099-07114iGDJ250..RHD..EUR202401-202509

88410CLUTCH ASSY, MAGNET

main88410-60530iTJA250202401

main88410-60570iGDJ250..RHD..EUR202401-202509

main88410-60580iTRJ250202401

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60340iGDJ250..RHD..EUR202401-202509

main88431-60350iTRJ250202401

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

88446DBOLT, COOLER

main88446-60050×2iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401

88688KBRACKET, COOLER COMPRESSOR

main88688-6B260iGDJ250..LHD..EUR;GDJ25#..ARL,GCC,GEN,RUS,SA202401

9011908C78

main90119-08C78

9011910367

main90119-10367

9331915008

main93319-15008

9415180800

main94151-80800

13 parts on this diagram · 3 diagrams in section
