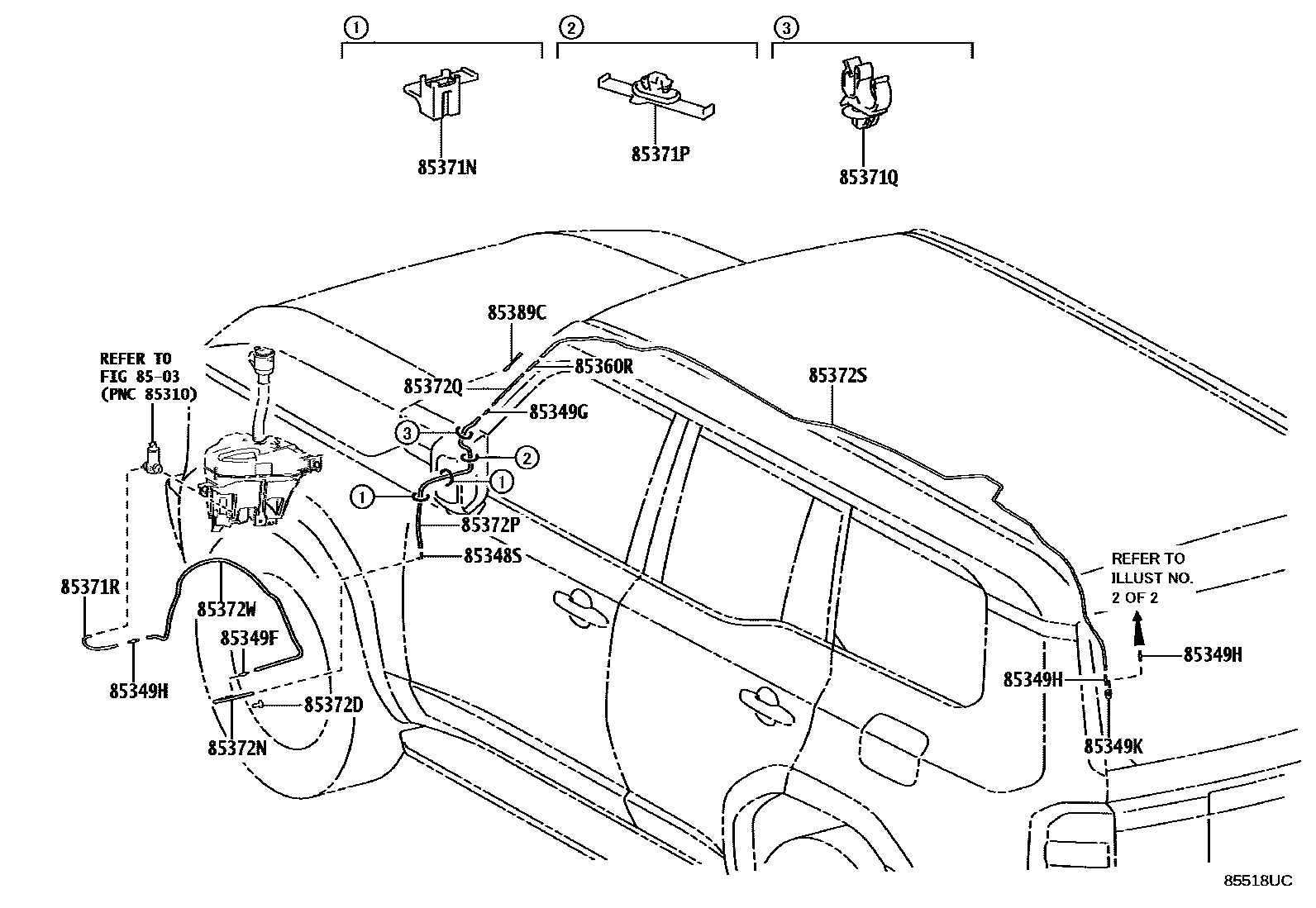

REAR WASHER
8503WINDSHIELD WASHER
85348SJOINT, REAR WASHER ELBOW, NO.1
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85360RBRACKET ASSY, REAR WASHER
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90099-33080iGDJ250,TJA250..LHD..A..(EUR,GEN); GDJ250..LHD..A..EUR;GDJ250,TJA250..A..(GEN,RUS); GDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA; TJA250..(A,L,R)..GEN;GDJ250,TRJ250..LHD..(EUR,GEN)202401
L=1450(*H,L=150); L=1450(*H,L=150),COLD AREA SPEC; L=1450(*H,L=150),COLD AREA SPEC&HEADLAMP CLEANER-WITH; L=1450(*H,L=150),HEADLAMP CLEANER-WITH
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=200)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=716
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=180)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3200(*H,L=2900)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=2000(*H,L=1260); L=2000(*H,L=1260),WINDSHIELD GLASS-ACOUSTIC TYPE & WITH(TOP SHADE),EHW
main90099-62096iGDJ250,TRJ250..R..RUS;TJA250..(A,R)..(GCC,GEN); GDJ250..LHD..A..GEN; TJA250..A..GEN; TRJ250..GCC,GEN;GDJ250..(A,R)..(GCC,GEN,SA); TRJ250..RUS;GDJ250..R..RUS;TJA250..R..(GCC,GEN)202401
L=430; L=430,BACK DOOR-HATCH DOOR TYPE; L=430,BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); L=430,BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE; L=430,BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR); L=430,COLD AREA SPEC&BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)&PERIPHERAL MONITOR CAMERA-PRE-WIRE; L=430,COLD AREA SPEC&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE; L=430,COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-PRE-WIRE; L=430,PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE; L=430,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE
L=420
main90099-62263iGDJ250,TJA250..U..GCC; GDJ250,TRJ250..R..RUS; GDJ250..LHD..8FC..U..GEN; GDJ250..LHD..U..GEN; TJA250..A..(GCC,GEN); TJA250..A..GCC; TJA250..A..GEN; TJA250..A..GEN;GDJ250,TJA250..U..GCC; TJA250..R..GCC;GDJ250..LHD..8FC..U..GEN; TJA250..R..GEN;GDJ250,TRJ250..(R,U)..RUS; TRJ250..RUS;TJA250..A,R,U;GDJ250..(A,R)..RUS;GDJ250..LHD..(R,U)..EUR;GDJ250..U..(GCC,GEN,RUS)202401
L=630; L=630,BACK DOOR-WITH(POWER BACK DOOR)&PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR); L=630,COLD AREA SPEC; L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO); L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4); L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO); L=630,COLD AREA SPEC&PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR); L=630,COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-PRE-WIRE; L=630,COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR); L=630,PARKING SUPPORT BRAKE- CSR(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO); L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4); L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-PRE-WIRE; L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(*MTMO); L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR); L=630,PARKING SUPPORT BRAKE- PKSB(FRONT:4, REAR:4)&PERIPHERAL MONITOR CAMERA-WITHOUT; L=630,PERIPHERAL MONITOR CAMERA-WITH(BACK MONITOR)
85389CPROTECTOR, WASHER
18 parts on this diagram · 3 diagrams in section
