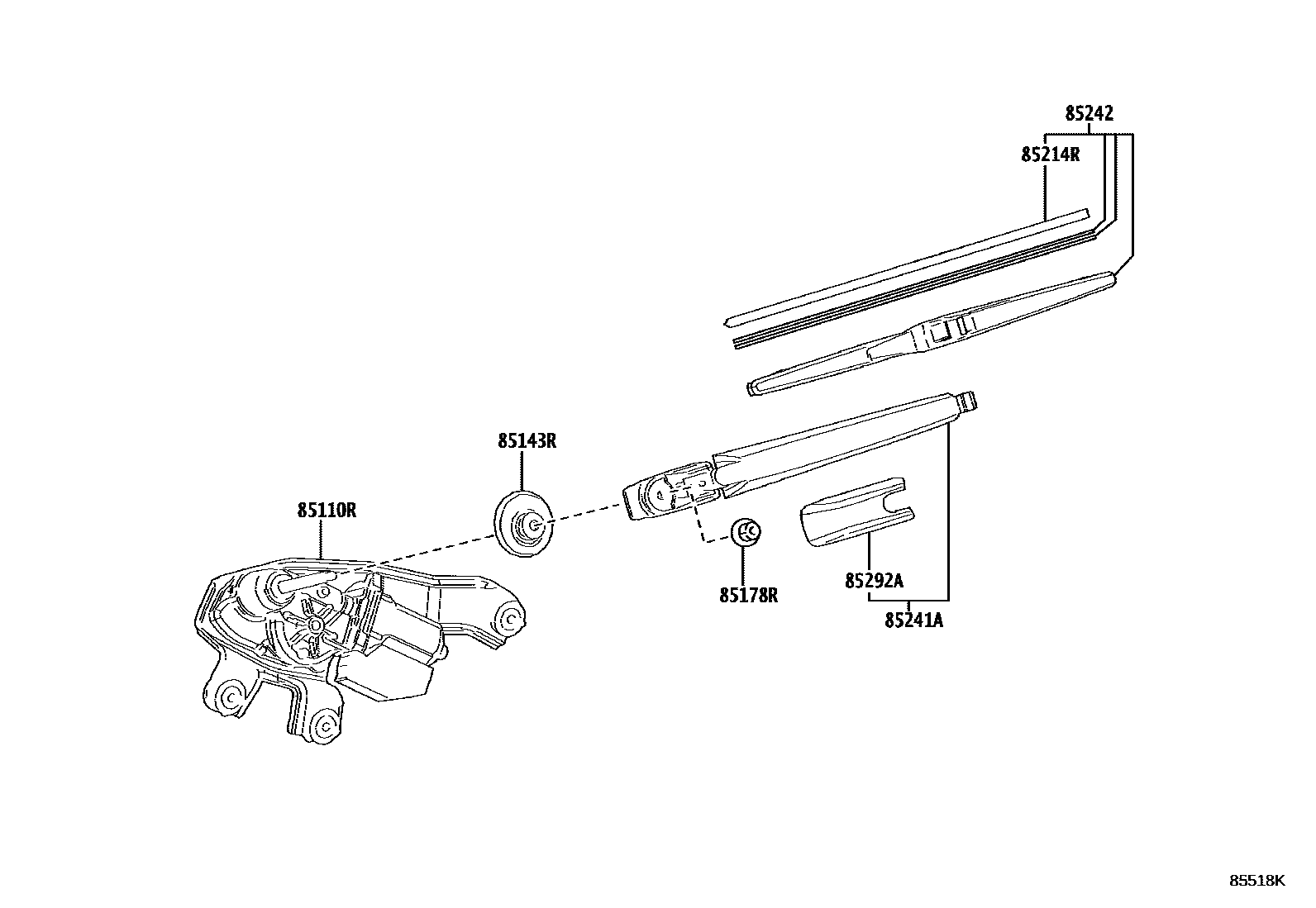

REAR WIPER
85110RMOTOR ASSY, REAR WIPER
main85130-60380iTJA250..A,R;GDJ250..A..RUS;GDJ250,TRJ250..R..(EUR,RUS); TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..R..(GCC,GEN,SA);GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L)..(EUR,GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..R..(EUR,RUS)202401
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
85143RGROMMET, REAR WIPER MOTOR
85178RNUT (FOR REAR WIPER ARM SETTING)
85214RRUBBER, REAR WIPER
main85214-42060iTJA250..A,R;GDJ250..A..RUS;GDJ250,TRJ250..R..(EUR,RUS); TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..R..(GCC,GEN,SA);GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L)..(EUR,GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..R..(EUR,RUS)202401
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
85241AARM, REAR WIPER
main85241-60280iTJA250..A,R;GDJ250..A..RUS;GDJ250,TRJ250..R..(EUR,RUS); TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..R..(GCC,GEN,SA);GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L)..(EUR,GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..R..(EUR,RUS)202401
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
85242BLADE, RR WIPER
main85242-60170iTJA250..A,R;GDJ250..A..RUS;GDJ250,TRJ250..R..(EUR,RUS); TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..R..(GCC,GEN,SA);GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L)..(EUR,GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..R..(EUR,RUS)202401
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
85292ACAP, REAR WIPER ARM HEAD
7 parts on this diagram · 2 diagrams in section
