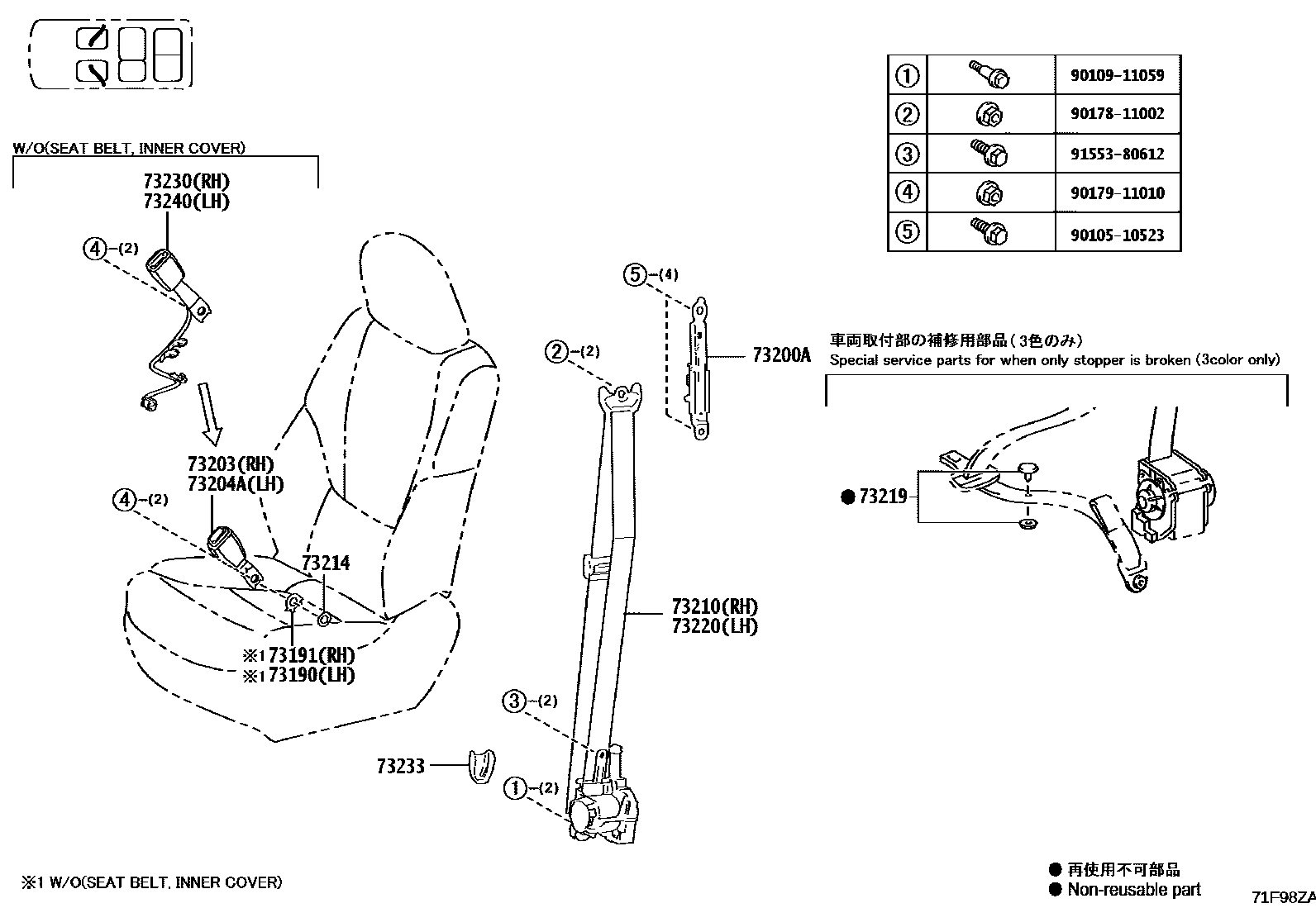

SEAT BELT
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73191BRACKET, SEAT BELT INNER ANCHOR, NO.1 RH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73203BELT SET, FRONT SEAT, RH
BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
73204ABELT SET, FRONT SEAT, LH
BLACK,TRIM2#
BLACK,TRIM1#,2#; FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM1#,2#
main73204-60020-C0iGDJ25#..A..(ARL,SA);GDJ250..LHD..A..EUR; GDJ250,TRJ250..RHD..6FC..R; GDJ250..R..SA; GDJ250..RHD..8FC..R..GEN; GDJ250..RHD..A..GEN; TRJ250..RHD202401
BLACK,TRIM2#,4#; FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM2#,4#; FRONT SEAT-*DRS:POWER(8WAY), *PAS:MANUAL(4WAY)&FRONT COLLISION AIRBAG-WITH(*DRP &KNEE),BLACK,TRIM1#,2#,4#; HIGH GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#; MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#,4#; SEAT COVER MATERIAL-LEATHER&FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM1#,2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT COLLISION AIRBAG-WITH(*DRP & KNEE),BLACK,TRIM1#,2#
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/BLACK,TRIM1#,2#; BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-47222-C7iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS,SA); GDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA); GDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN,SA); GDJ250..LHD..U..EUR;GDJ25#,TJA250,TRJ250..U..(ARL,GCC,GEN,RUS)202401
BLACK/BLACK,TRIM1#,2#; BLACK/BLACK,TRIM1#,2#,4#; BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-60830-C0iGDJ250,TJA250,TRJ250..U..(GCC,GEN,RUS); GDJ250,TJA250..8FC..R..(GCC,GEN); GDJ250,TJA250..A..(GCC,GEN,RUS); GDJ250..R..RUS;TJA250..(L,R)..RUS;TJA250..L..(GCC,GEN);GDJ250,TRJ250..6FC..R;GDJ250..L..(GCC,GEN,RUS)202401
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C1×2iGDJ250..LHD..(L,R)..EUR;GDJ25#,TJA250,TRJ250..(L,R)..(ARL,GCC,GEN,RUS,SA); GDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA); GDJ250..LHD..U..EUR;GDJ25#,TJA250,TRJ250..U..(ARL,GCC,GEN,RUS)202401
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#,2#
main73240-60660-C0iGDJ250,TJA250,TRJ250..U..(GCC,GEN,RUS); GDJ250,TJA250..8FC..R..(GCC,GEN); GDJ250,TRJ250..6FC..R;GDJ250,TJA250..R..RUS202401
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
main73240-60710-C0supersedes 73240-60660-C0iGDJ250,TJA250..8FC..R..(GCC,GEN); GDJ250,TJA250..A..(GCC,GEN,RUS); GDJ250,TRJ250..6FC..R..GEN; TRJ250..R..(GCC,RUS);GDJ250,TJA250..R..RUS; TRJ250..R..GEN202401
BLACK,TRIM2#,4#; FRONT SEAT-*DRS:POWER(8WAY), *PAS:MANUAL(4WAY),BLACK,TRIM1#,2#,4#; HIGH GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#; MIDDLE GRADE PACKAGE FOR AR,BLACK,TRIM1#,2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#
9010510523
main90105-10523
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
17 parts on this diagram · 5 diagrams in section
