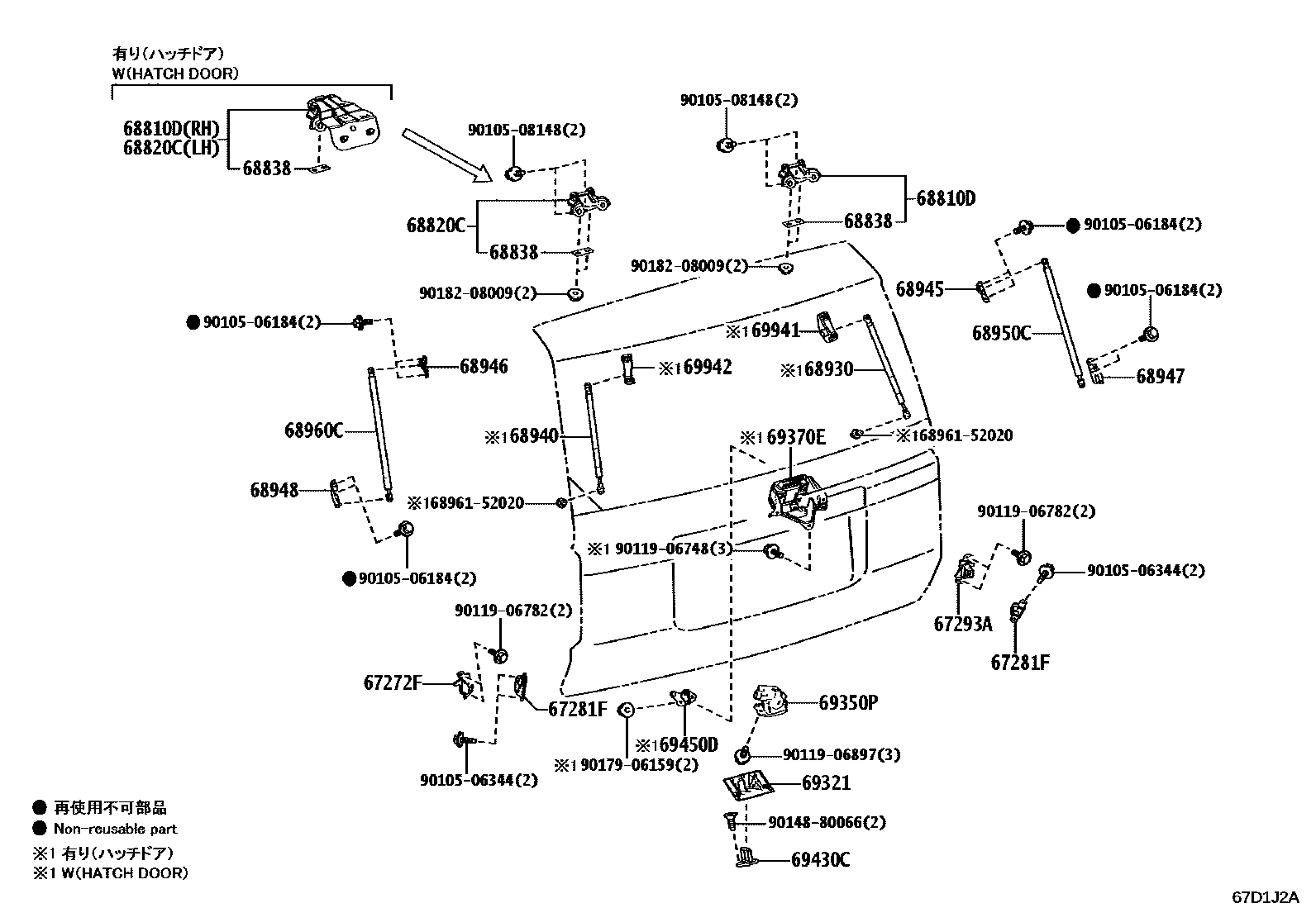

BACK DOOR LOCK & HINGE
67272FCUSHION, BACK DOOR STOPPER, NO.2
67281FSTOPPER, BACK DOOR, LOWER
RH
LH
67293ACUSHION, BACK DOOR STOPPER
68810DHINGE ASSY, BACK DOOR, RH
main68810-60100iTRJ250..RUS;TJA250..A,R,U;GDJ250..(A,R)..RUS;GDJ250..LHD..(R,U)..EUR;GDJ250..U..(GCC,GEN,RUS)202401
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
68820CHINGE ASSY, BACK DOOR, LH
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
68838PAD, BACK DOOR HINGE, NO.1
main68838-47010×2iGDJ250..U;TRJ250..RUS;TJA250..A,R,U;GDJ250..A..RUS;GDJ250..R..(EUR,RUS); TJA250..A,R;GDJ250..A..RUS;GDJ250,TRJ250..R..(EUR,RUS); TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..R..(GCC,GEN,SA);GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L)..(EUR,GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..R..(EUR,RUS)202401
T=1.0; T=1.0,BACK DOOR-HATCH DOOR TYPE; T=1.0,BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); T=1.0,BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
main68838-47020×2iGDJ250..U;TRJ250..RUS;TJA250..A,R,U;GDJ250..A..RUS;GDJ250..R..(EUR,RUS); TJA250..A,R;GDJ250..A..RUS;GDJ250,TRJ250..R..(EUR,RUS); TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..R..(GCC,GEN,SA);GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L)..(EUR,GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..R..(EUR,RUS)202401
T=1.5; T=1.5,BACK DOOR-HATCH DOOR TYPE; T=1.5,BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); T=1.5,BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
main68838-47030×2iGDJ250..U;TRJ250..RUS;TJA250..A,R,U;GDJ250..A..RUS;GDJ250..R..(EUR,RUS); TJA250..A,R;GDJ250..A..RUS;GDJ250,TRJ250..R..(EUR,RUS); TJA250..A;GDJ250..A..RUS; TJA250..L;GDJ250..L..RUS;GDJ250..R..(GCC,GEN,SA);GDJ251,TRJ250..ARL,GCC,GEN;GDJ250..(A,L)..(EUR,GCC,GEN,SA); TJA250..R;TRJ250..RUS;GDJ250..R..(EUR,RUS)202401
T=2.0; T=2.0,BACK DOOR-HATCH DOOR TYPE; T=2.0,BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); T=2.0,BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR)
68930STAY ASSY, BACK WINDOW, RH
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
main68930-0W040iGDJ250..LHD..A..GEN; GDJ250..RHD..8FC..(L,R)..GEN; TJA250..(A,R)..GCC; TJA250..A..GCC; TJA250..L..GCC;GDJ250..(A,L,R)..GCC; TJA250..R..GCC; TRJ250..RHD;GDJ250..RHD..8FC..(L,R)..GEN202401
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR); DESTINATION PACKAGE(ASIA)-BRUNEI SPEC; DESTINATION PACKAGE(ASIA)-MONGOLIA SPEC; DESTINATION PACKAGE(ASIA)-PAKISTAN SPEC; DESTINATION PACKAGE(OTHER-NEPAL SPEC
68940STAY ASSY, BACK WINDOW, LH
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
main68940-0W040iGDJ250..LHD..A..GEN; GDJ250..RHD..8FC..(L,R)..GEN; TJA250..(A,R)..GCC; TJA250..A..GCC; TJA250..L..GCC;GDJ250..(A,L,R)..GCC; TJA250..R..GCC; TRJ250..RHD;GDJ250..RHD..8FC..(L,R)..GEN202401
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-HATCH DOOR,W(HANDS FREE POWER BACK DOOR); DESTINATION PACKAGE(ASIA)-BRUNEI SPEC; DESTINATION PACKAGE(ASIA)-MONGOLIA SPEC; DESTINATION PACKAGE(ASIA)-PAKISTAN SPEC; DESTINATION PACKAGE(OTHER-NEPAL SPEC
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-WITH(POWER BACK DOOR)
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-60060iGDJ251,TRJ250..A,R,U;GDJ250..LHD..(R,U)..EUR;GDJ250,TJA250..(R,U)..(GCC,GEN,RUS,SA)202401
BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-WITH(POWER BACK DOOR)
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
main68950-0WN30iTJA250..R,U;TRJ250..RUS;GDJ250..R..RUS;GDJ250..LHD..(R,U)..EUR;GDJ250..U..(GCC,GEN,RUS)202401
main68950-0WN50iTJA250..R;TRJ250..RUS;GDJ250..LHD..R..(EUR,RUS); TRJ250..GCC,GEN;GDJ250..R..(GCC,GEN,SA)202401
BACK DOOR-HATCH DOOR TYPE
68960CSTAY SET, BACK DOOR, LH
main68960-0WN50iTJA250..R;TRJ250..RUS;GDJ250..LHD..R..(EUR,RUS); TRJ250..GCC,GEN;GDJ250..R..(GCC,GEN,SA)202401
BACK DOOR-HATCH DOOR TYPE
69321COVER, BACK DOOR LOCK
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR); BACK DOOR-WITH(POWER BACK DOOR)
69370ELOCK ASSY, BACK WINDOW
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
69430CSTRIKER ASSY, BACK DOOR LOCK
69450DSTRIKER ASSY, BACK WINDOW LOCK
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
69941BRACKT, BACK DOOR GLASS GUIDE, UPPER RH
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
69942BRACKT, BACK DOOR GLASS GUIDE, UPPER LH
BACK DOOR-HATCH DOOR TYPE; BACK DOOR-HATCH DOOR TYPE,WITH(POWER BACK DOOR)
6896152020BOLT, BACK DOOR STAY
main68961-52020
9010506184
main90105-06184
9010506344
main90105-06344
9010508148
main90105-08148
9011906748
main90119-06748
9011906782
main90119-06782
9011906897
main90119-06897
9014880066
main90148-80066
9017906159
main90179-06159
9018208009
main90182-08009
31 parts on this diagram · 2 diagrams in section
