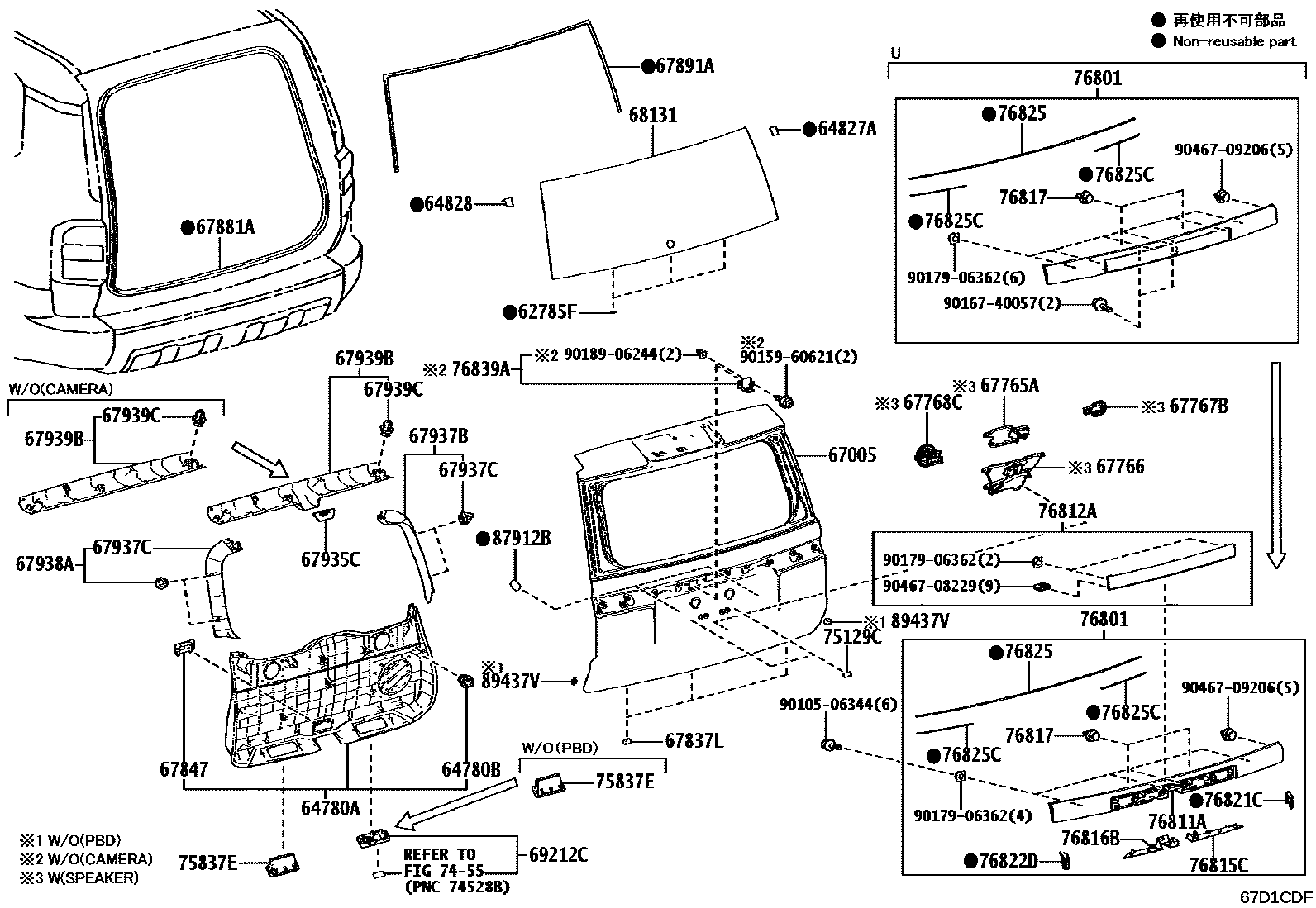

BACK DOOR PANEL & GLASS
64780APANEL ASSY, BACK DOOR TRIM
64780BCLIP(FOR BACK DOOR TRIM PANEL)
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67766COVER, BACK DOOR SERVICE HOLE, NO.2
67767BCOVER, BACK DOOR SERVICE HOLE, NO.3
67768CCOVER, BACK DOOR SERVICE HOLE, NO.4
67837LSEAL, DOOR DUST PROOF
67847COVER, BACK DOOR SERVICE HOLE, RH
67881AWEATHERSTRIP, BACK DOOR
67935CGARNISH, BACK DOOR
67937CCLIP(FOR BACK DOOR SIDE GARNISH)
67939CCLIP(FOR BACK DOOR CENTER GARNISH)
68131GLASS, BACK DOOR
69212CHANDLE, BACK DOOR INSIDE
7455CAUTION PLATE
75129CCUSHION, REAR LICENCE PLATE
75837ECOVER, BACK DOOR FINISH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76811AGARNISH, BACK DOOR, OUTSIDE
76815CMOULDING, BACK DOOR OUTSIDE GARNISH, LWR RH
76816BMOULDING, BACK DOOR OUTSIDE GARNISH, LWR LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821CPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822DPROTECTOR, BACK DOOR GARNISH SIDE, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
76839ACOVER, BACK DOOR GARNISH
87912BPROTECTOR, OUTER MIRROR
89437VCOVER, SENSOR
9010506344
main90105-06344
9015960621
main90159-60621
9016740057
main90167-40057
9017906362
main90179-06362
9018906244
main90189-06244
9046708229
main90467-08229
9046709206
main90467-09206
45 parts on this diagram · 3 diagrams in section
