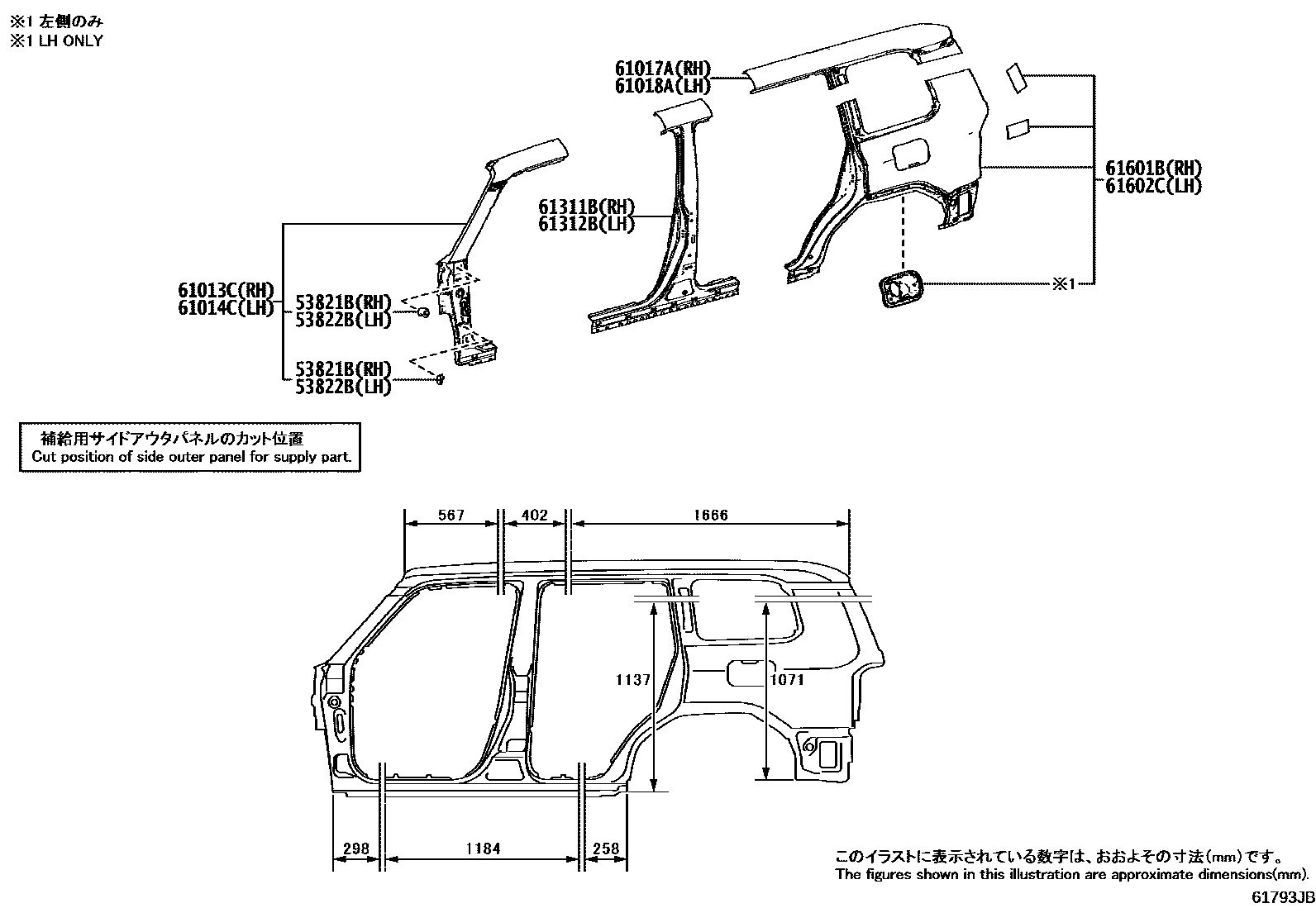

SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010×2i202401

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010×2i202401-202509

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60070i202401

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-60060i202401

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-60020i202401-202509

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-60030i202401-202509

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60210i202401

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60270i202401

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-60B00i202401

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-60A90i202401

EXHAUST EMISSION CONTROL-EURO0, WITHOUT(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO4, WITH(ON BOARD DIAGNOSIS)

main61602-60B10i202401

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO6-RDE

10 parts on this diagram · 3 diagrams in section
