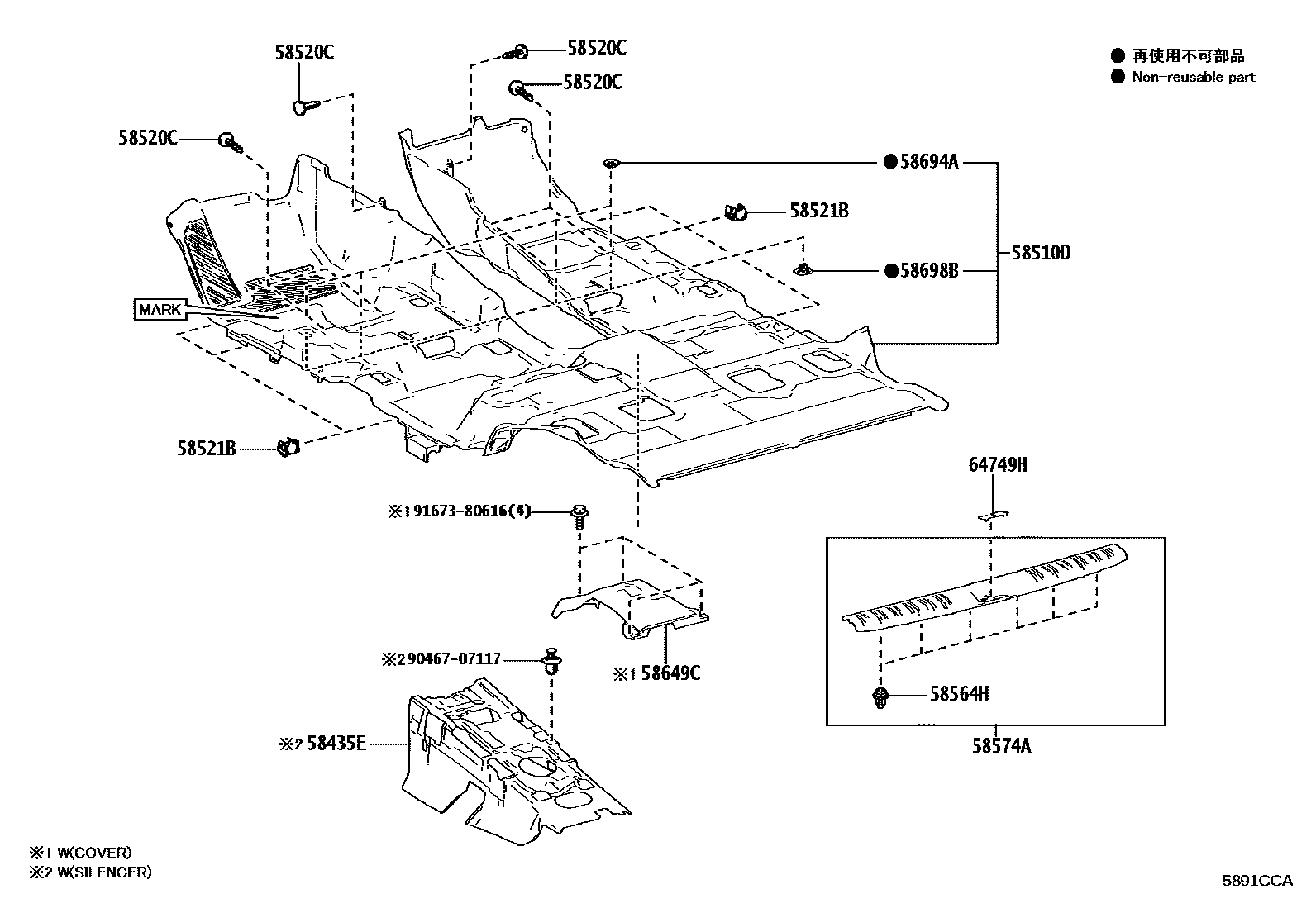

FLOOR MAT & SILENCER PAD
58435ESILENCER, FRONT FLOOR, CENTER
main58435-60050iGDJ250,TJA250..R..GCC; GDJ250..LHD..R..EUR;GDJ250,TJA250..LHD..(A,L)..(EUR,GCC);GDJ25#,TJA250..(A,L,R)..(ARL,GEN,RUS,SA)202401
HIGH GRADE PACKAGE FOR AR; MIDDLE GRADE PACKAGE FOR AR
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#,4#,MARK = 58510-6AR00
main58510-6AR10-C0iGDJ250,TJA250,TRJ250..LHD..R; GDJ250,TJA250,TRJ250..LHD..U; GDJ250,TJA250..LHD..A202401
BLACK,TRIM1#,2#,4#,MARK = 58510-6AR10; BLACK,TRIM2#,4#,MARK = 58510-6AR10; BLACK,TRIM2#,MARK = 58510-6AR10
BLACK,TRIM1#,2#,4#,MARK = 58510-6AS80; BLACK,TRIM2#,MARK = 58510-6AS80; FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,4#,MARK = 58510-6AS80; REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK = 58510-6AS80
BLACK,TRIM1#,2#,4#,MARK = 58510-6AT50
BLACK,TRIM1#,2#,4#,MARK = 58510-6AT70
BLACK,TRIM1#,2#,4#,MARK = 58510-6AU00
main58510-6AU10-C0iGDJ250,TJA250,TRJ250..LHD..R; GDJ250,TJA250,TRJ250..LHD..U; GDJ250,TJA250..LHD..A202401
BLACK,TRIM1#,2#,4#,MARK = 58510-6AU10; BLACK,TRIM2#,4#,MARK = 58510-6AU10; BLACK,TRIM2#,MARK = 58510-6AU10
BLACK,TRIM1#,2#,4#,MARK = 58510-6AU20
BLACK,TRIM1#,2#,4#,MARK = 58510-6AV00
BLACK,TRIM1#,2#,4#,MARK = 58510-6AV50; BLACK,TRIM2#,MARK = 58510-6AV50; FRONT SEAT-*DRS:POWER(8WAY)&MEMORY&MANUAL CUSHION,BLACK,TRIM1#,2#,4#,MARK = 58510-6AV50; REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM2#,4#,MARK = 58510-6AV50
REAR SEAT-4:4 TUMBLE & 5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,2#,4#,MARK = 58510-6AR20
main58510-6AR60-C0supersedes 58510-6AU90-C0iGDJ250,TRJ250..RHD..R..(GEN,SA); GDJ250..RHD..A..(GEN,SA); GDJ250..RHD..U..GEN202401
REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM1#,2#,4#,MARK = 58510-6AR60; REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,4#,MARK = 58510-6AR60; REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,MARK = 58510-6AR60; REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2#,4#,MARK = 58510-6AR60
BLACK,TRIM1#,2#,4#,MARK = 58510-6AR90; BLACK,TRIM2#,4#,MARK = 58510-6AR90; REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#,4#,MARK = 58510-6AR90
main58510-6AT60-C0iGDJ250,TJA250..LHD..A; GDJ250,TJA250..U..GCC; TJA250,TRJ250..R..GCC;GDJ250..LHD..8FC..R..(GCC,GEN)202401
REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER),BLACK,TRIM1#,2#,4#,MARK = 58510-6AT60; REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER),BLACK,TRIM2#,4#,MARK = 58510-6AT60; REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER),BLACK,TRIM2#,MARK = 58510-6AT60
REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER),BLACK,TRIM2#,4#,MARK = 58510-6AT80
main58510-6AU30-C0iGDJ250,TJA250..LHD..A; GDJ250,TJA250..U..GCC; TJA250,TRJ250..R..GCC;GDJ250..LHD..8FC..R..(GCC,GEN)202401
REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER),BLACK,TRIM1#,2#,4#,MARK = 58510-6AU30; REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER),BLACK,TRIM2#,4#,MARK = 58510-6AU30; REAR CONSOLE BOX-FRIDGE,W(FLOOR COVER),BLACK,TRIM2#,MARK = 58510-6AU30
REAR SEAT-4:4 TUMBLE & 5:5 DOUBLE FLAT POWER,BLACK,TRIM1#,2#,4#,MARK = 58510-6AU40
main58510-6AU80-C0supersedes 58510-6AU90-C0iGDJ250,TRJ250..RHD..R..(GEN,SA); GDJ250..RHD..A..(GEN,SA); GDJ250..RHD..U..GEN202401
REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM1#,2#,4#,MARK = 58510-6AU80; REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,4#,MARK = 58510-6AU80; REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT MANUAL,BLACK,TRIM2#,MARK = 58510-6AU80; REAR SEAT-6:4 TUMBLE & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2#,4#,MARK = 58510-6AU80
REAR SEAT-6:4 TUMBLE SEAT,BLACK,TRIM1#,2#,4#,MARK = 58510-6AV10
BLACK,TRIM1#,2#,4#,MARK = 58510-6AV40; BLACK,TRIM2#,4#,MARK = 58510-6AV40; REAR SEAT-6:4 TUMBLE & 5:5,BLACK,TRIM1#,2#,4#,MARK = 58510-6AV40
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
58521BHOOK, FLOOR CARPET
58564HCLIP(FOR REAR FLOOR CARPET)
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
main58574-60170-C0supersedes 58574-60180-C0iGDJ250..LHD..L..EUR;GDJ250,TJA250..L..(GCC,GEN,RUS,SA)202404
BLACK,TRIM1#,2#,4#
main58574-60180-C0supersedes 58574-60170-C0iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA); GDJ250..LHD..U..EUR;GDJ25#,TJA250,TRJ250..U..(ARL,GCC,GEN,RUS); GDJ251,TRJ250..L,R;GDJ250..LHD..R..EUR;GDJ250,TJA250..R..(GCC,GEN,RUS,SA)202401
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
58649CCOVER, MAT SET PLATE
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
64749HCOVER, BACK DOOR STRIKER
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
9046707117
main90467-07117
9167380616
main91673-80616
12 parts on this diagram · 3 diagrams in section
