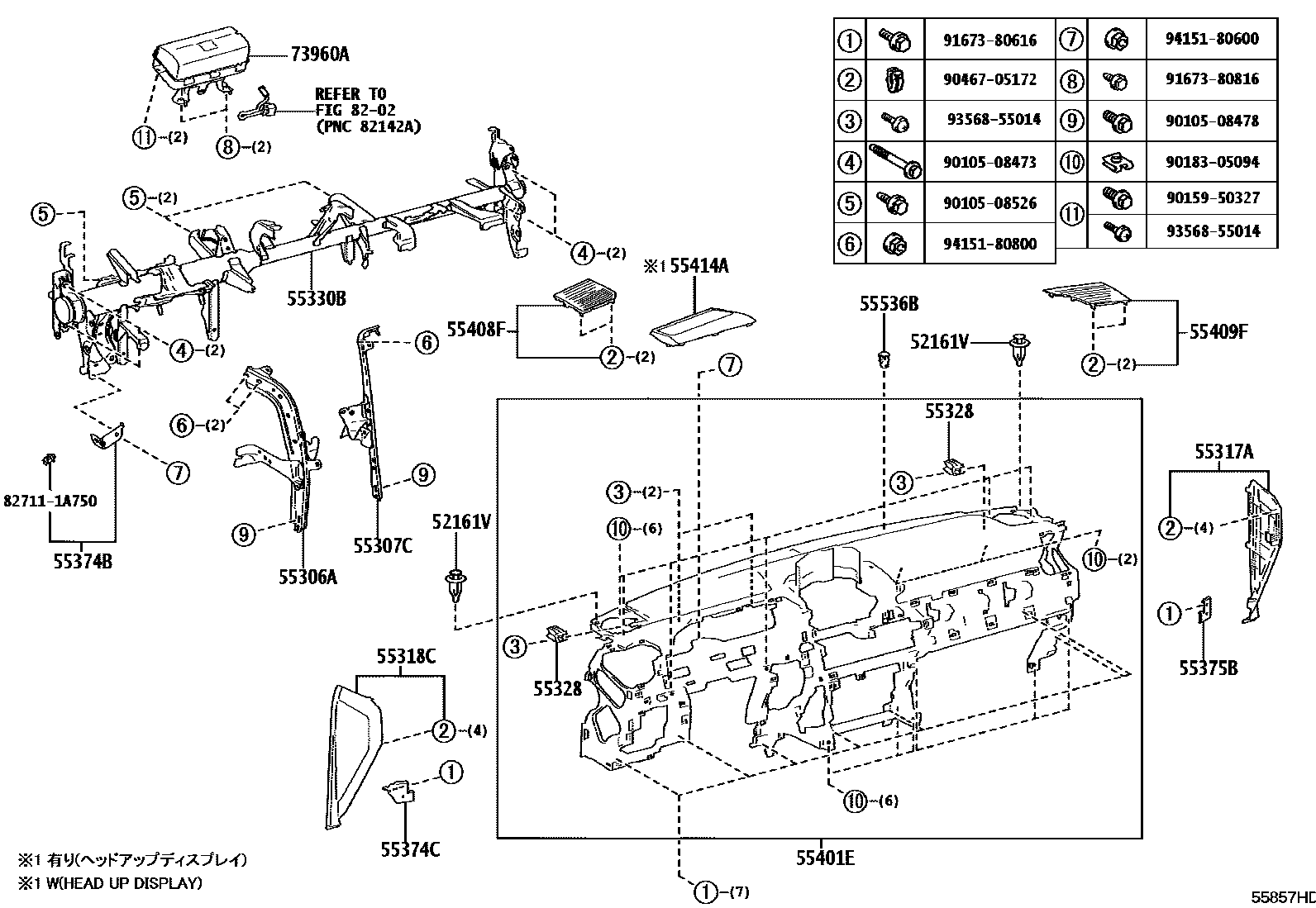

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main55317-60190-C0iGDJ250,TJA250,TRJ250..LHD..U..(EUR,RUS); GDJ250,TJA250..LHD..A..(EUR,RUS); GDJ250..LHD..L..EUR;GDJ250,TJA250,TRJ250..(L,R)..RUS202401
BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#
55318CPANEL, INSTRUMENT SIDE, LH
main55318-60260-C0iGDJ250..6FC..R;GDJ250..R..RUS;GDJ251,TRJ250..L,R;TJA250..(L,R)..RUS;GDJ250..LHD..L..EUR;TJA250..L..(GCC,GEN);GDJ250..L..(GCC,GEN,RUS); GDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS); GDJ250..LHD..R..EUR;GDJ250,TJA250..8FC..R..(GCC,GEN); GDJ250..LHD..U..EUR;GDJ25#,TJA250,TRJ250..U..(ARL,GCC,GEN,RUS)202401
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374BBRACKET, INSTRUMENT PANEL
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-60640-C1iGDJ250,TJA250,TRJ250..LHD..U; GDJ250,TJA250..LHD..8FC..R..(EUR,GCC,GEN); GDJ250,TJA250..LHD..8FC..R..(GCC,GEN); GDJ250,TJA250..LHD..A; GDJ250,TRJ250..LHD..6FC..R..(GCC,GEN); GDJ250..LHD..L;GDJ250..R..RUS;TJA250..(L,R)..RUS;TJA250..L..(GCC,GEN);GDJ250,TRJ250..LHD..6FC..R202401
NAVI READY PACKAGE&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM1#,2#; NAVI READY PACKAGE&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM1#,2#,4#; SOFT BLACK,TRIM1#,2#; SOFT BLACK,TRIM1#,2#,4#; SOFT BLACK,TRIM2#; SOFT BLACK,TRIM2#,4#
main55401-60650-C1iGDJ25#..RHD..A..(ARL,GEN,SA); GDJ25#..RHD..U..(ARL,GEN); GDJ250,TRJ250..RHD..6FC..R; GDJ250..RHD..6FC..R;GDJ250..RHD..L..(GEN,SA);GDJ251,TRJ250..RHD..(L,R); GDJ250..RHD..8FC..R..(GEN,SA); GDJ250..RHD..8FC..R..GEN202401
NAVI READY PACKAGE&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM1#,2#; NAVI READY PACKAGE&AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM1#,2#,4#; SOFT BLACK,TRIM1#,2#; SOFT BLACK,TRIM1#,2#,4#; SOFT BLACK,TRIM2#; SOFT BLACK,TRIM2#,4#
HIGH GRADE PACKAGE FOR ADV&,SOFT BLACK,TRIM2#,4#; HIGH GRADE PACKAGE FOR ADV,SOFT BLACK,TRIM2#,4#
HIGH GRADE PACKAGE FOR ADV&&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 10SPEAKER,SOFT BLACK,TRIM2#,4#; HIGH GRADE PACKAGE FOR ADV&&AUDIO(FOR OVERSEAS MARKET)-EMV(12.3INCH) & 14SPEAKER(JBL),SOFT BLACK,TRIM2#,4#; HIGH GRADE PACKAGE FOR ADV,SOFT BLACK,TRIM2#,4#
main55401-60720-C1iGDJ250,TJA250,TRJ250..LHD..R..(GCC,GEN); GDJ250,TJA250,TRJ250..LHD..U..(GCC,GEN)202401
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM1#,2#; AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM2#
AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM1#,2#; AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS & 6SPEAKER,SOFT BLACK,TRIM2#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
main55408-60350-C0iGDJ250,TJA250,TRJ250..LHD..(L,R); GDJ250,TJA250,TRJ250..LHD..U; GDJ250,TJA250..LHD..A202401
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main55408-60360-C0iGDJ25#..RHD..A..(ARL,GEN,SA); GDJ25#..RHD..U..(ARL,GEN); GDJ250..RHD..6FC..R;GDJ250..RHD..L..(GEN,SA);GDJ251,TRJ250..RHD..(L,R); GDJ250..RHD..8FC..R..(GEN,SA)202401
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
main55409-60220-C0iGDJ250,TJA250,TRJ250..LHD..(L,R); GDJ250,TJA250,TRJ250..LHD..U; GDJ250,TJA250..LHD..A202401
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
main55409-60230-C0iGDJ25#..RHD..A..(ARL,GEN,SA); GDJ25#..RHD..U..(ARL,GEN); GDJ250..RHD..6FC..R;GDJ250..RHD..L..(GEN,SA);GDJ251,TRJ250..RHD..(L,R); GDJ250..RHD..8FC..R..(GEN,SA)202401
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
55414APANEL, INSTRUMENT CLUSTER FINISH, END
HIGH GRADE PACKAGE FOR LUX,BLACK,TRIM1#,2#,4#
HIGH GRADE PACKAGE FOR LUX,BLACK,TRIM1#,2#
55536BCOVER, LIGHT CONTROL SWITCH HOLE
BLACK,TRIM2#; LIGHT CONTROL SYSTEM-WITH&REAR AIR CONDITIONER-WITH,BLACK,TRIM2#; LIGHT CONTROL SYSTEM-WITH,BLACK,TRIM2#; REAR AIR CONDITIONER-WITH,BLACK,TRIM2#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202WIRING & CLAMP
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9010508473
main90105-08473
9010508478
main90105-08478
9010508526
main90105-08526
9015950327
main90159-50327
9018305094
main90183-05094
9046705172
main90467-05172
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
29 parts on this diagram · 8 diagrams in section
