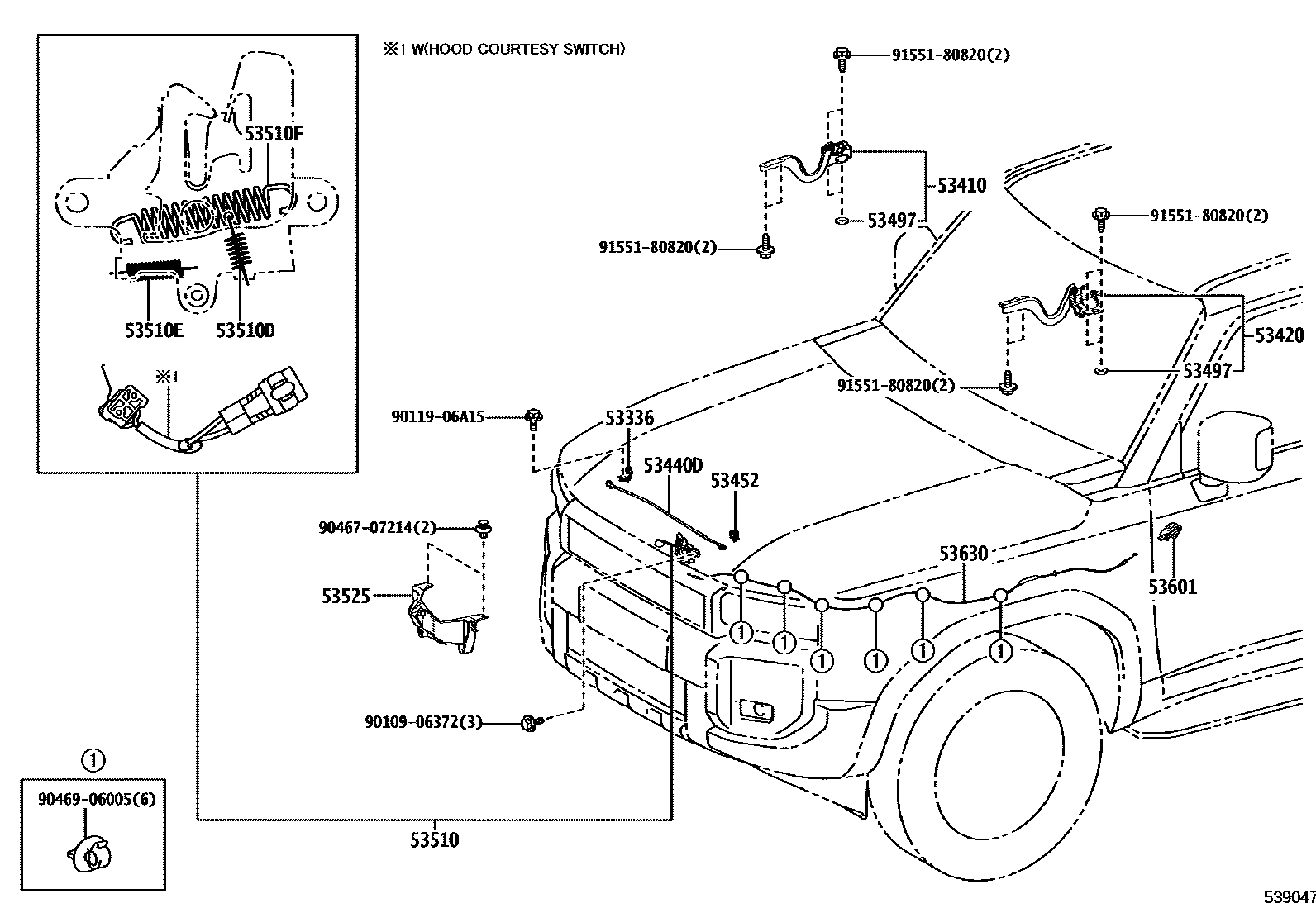

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
T=1.0
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-WITH(ALARM)
DESTINATION PACKAGE(OTHER-EGYPT SPEC&ANTI-THEFT SYSTEM-WITH(ALARM)
DESTINATION PACKAGE(OTHER&ANTI-THEFT SYSTEM-WITH(ALARM)
ANTI-THEFT SYSTEM-WITH(ALARM)
ANTI-THEFT SYSTEM-ALARM & SIREN & *IS & TILT
DESTINATION PACKAGE(OTHER-EGYPT SPEC
DESTINATION PACKAGE(OTHER
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510FSPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
9010906372
main90109-06372
9011906A15
main90119-06A15
9046707214
main90467-07214
9046906005
main90469-06005
9155180820
main91551-80820
18 parts on this diagram · 2 diagrams in section
