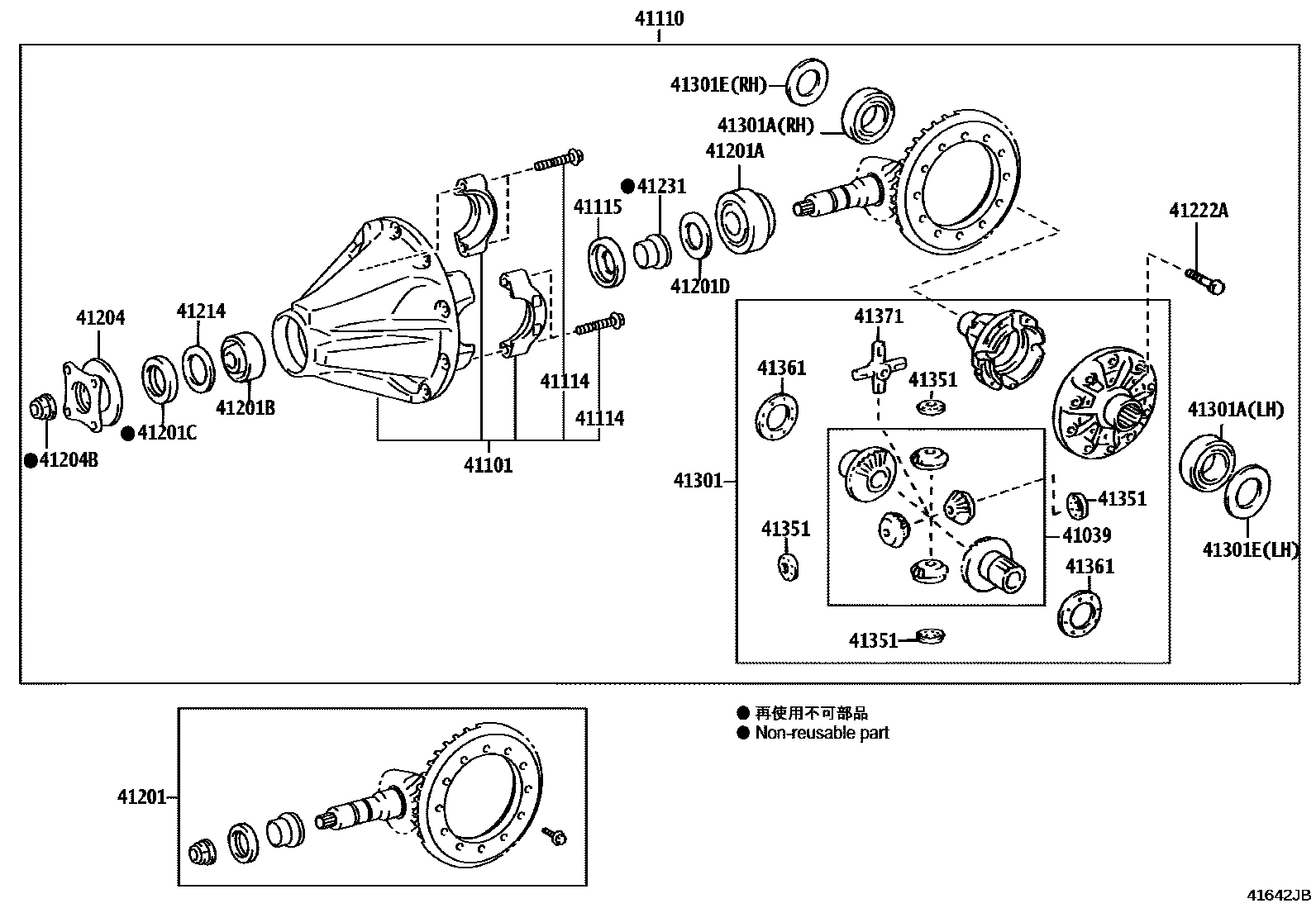

41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
main41101-60240supersedes 41101-60250iGDJ250..RHD..(L,R,U)..EUR; GDJ250..RHD..A..EUR202401-202509 DIFFERENTIAL LOCK-WITH(REAR TORQUE SENSING LSD)
main41101-60250iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA); GDJ251,TJA250..U;GDJ250..LHD..8FC..U;GDJ250..RHD..8FC..U..GEN202401 OPTION PACKAGE FOR UN&INTEGRATED SPORT DRIVING-3MODE
41110CARRIER ASSY, DIFFERENTIAL, REAR
main41110-60E50iGDJ251,TJA250..L,R,U;GDJ250..LHD..8FC..(L,R,U);GDJ250..RHD..8FC..(L,R,U)..(GEN,SA)202401 *FGR=43:12=3.583
main41110-60E60iGDJ250..LHD..A..EUR;GDJ25#,TJA250..A..(ARL,GCC,GEN,RUS,SA); GDJ251,TJA250..U;GDJ250..LHD..8FC..U;GDJ250..RHD..8FC..U..GEN202401 *FGR=43:12=3.583; *FGR=43:12=3.583, OPTION PACKAGE FOR UN&INTEGRATED SPORT DRIVING-3MODE
main41110-60E70supersedes 41110-60E60iGDJ250..RHD..A..EUR202401-202509 *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH(REAR TORQUE SENSING LSD)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
main41114-60010×4iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
main90311-44008iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
main90564-64064iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=1.87
main90564-64070iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=1.93
main90564-64074iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=1.97
main90564-64080iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.03
main90564-64082iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.05
main90564-64084iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.07
main90564-64086iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.09
main90564-64088iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.11
main90564-64090iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.13
main90564-64098iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.21
main90564-64100iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.23
main90564-64108iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.31
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
main41204-60130iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 41204BNUT (FOR REAR DRIVE PINION)
main90179-22029iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
main90105-11063×12iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301CASE SUB-ASSY, REAR DIFFERENTIAL
DIFFERENTIAL LOCK-WITH(REAR TORQUE SENSING LSD)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41301ESHIM(FOR DIFFERENTIAL CASE)
main90564-59044iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.08,LH
main90564-59048iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.16,LH
main90564-59050iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.20,LH
main90564-59051iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.22,LH
main90564-59054iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.28,LH
main90564-59058iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.36,LH
main90564-59063iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.46,LH
main90564-59065iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.50,LH
main90564-59066iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.52,LH
main90564-59067iGDJ250..RHD..A..EUR; GDJ250..RHD..EUR202401-202509 T=2.54,DIFFERENTIAL LOCK-WITH(REAR TORQUE SENSING LSD); T=2.54,LH
main90564-59068iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.56,LH
main90564-59070iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.60,LH
main90564-59071iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.62,LH
main90564-59072iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.64,LH
main90564-59074iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.68,LH
main90564-59151iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.06,RH
main90564-59152iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.08,RH
main90564-59153iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.10,RH
main90564-59155iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.14,RH
main90564-59156iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.16,RH
main90564-59157iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.18,RH
main90564-59159iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.22,RH
main90564-59160iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.24,RH
main90564-59162iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.28,RH
main90564-59164iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.32,RH
main90564-59165iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.34,RH
main90564-59167iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.38,RH
main90564-59168iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.40,RH
main90564-59169iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.42,RH
main90564-59170iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.44,RH
main90564-59171iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.46,RH
main90564-59172iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.48,RH
main90564-59180iGDJ250..LHD..EUR;GDJ25#,TJA250,TRJ250..ARL,GCC,GEN,RUS,SA202401 T=2.64,RH
41351WASHER, REAR DIFFERENTIAL PINION THRUST
main41351-30060×4iGDJ250..RHD..(L,R,U)..EUR202401-202509 41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-35310×2iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401 T=0.9
main41361-35320×2iGDJ250..RHD..(L,R,U)..EUR202401-202509 T=1.0
main41361-35330×2iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401 T=1.1
main41361-35340×2iGDJ250..RHD..(L,R,U)..EUR202401-202509 T=1.2
main41361-35350×2iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401 T=1.3
41371SPIDER, REAR DIFFERENTIAL
main41371-35040iGDJ250..LHD..(L,R,U)..EUR;GDJ25#,TJA250,TRJ250..(L,R,U)..(ARL,GCC,GEN,RUS,SA)202401
