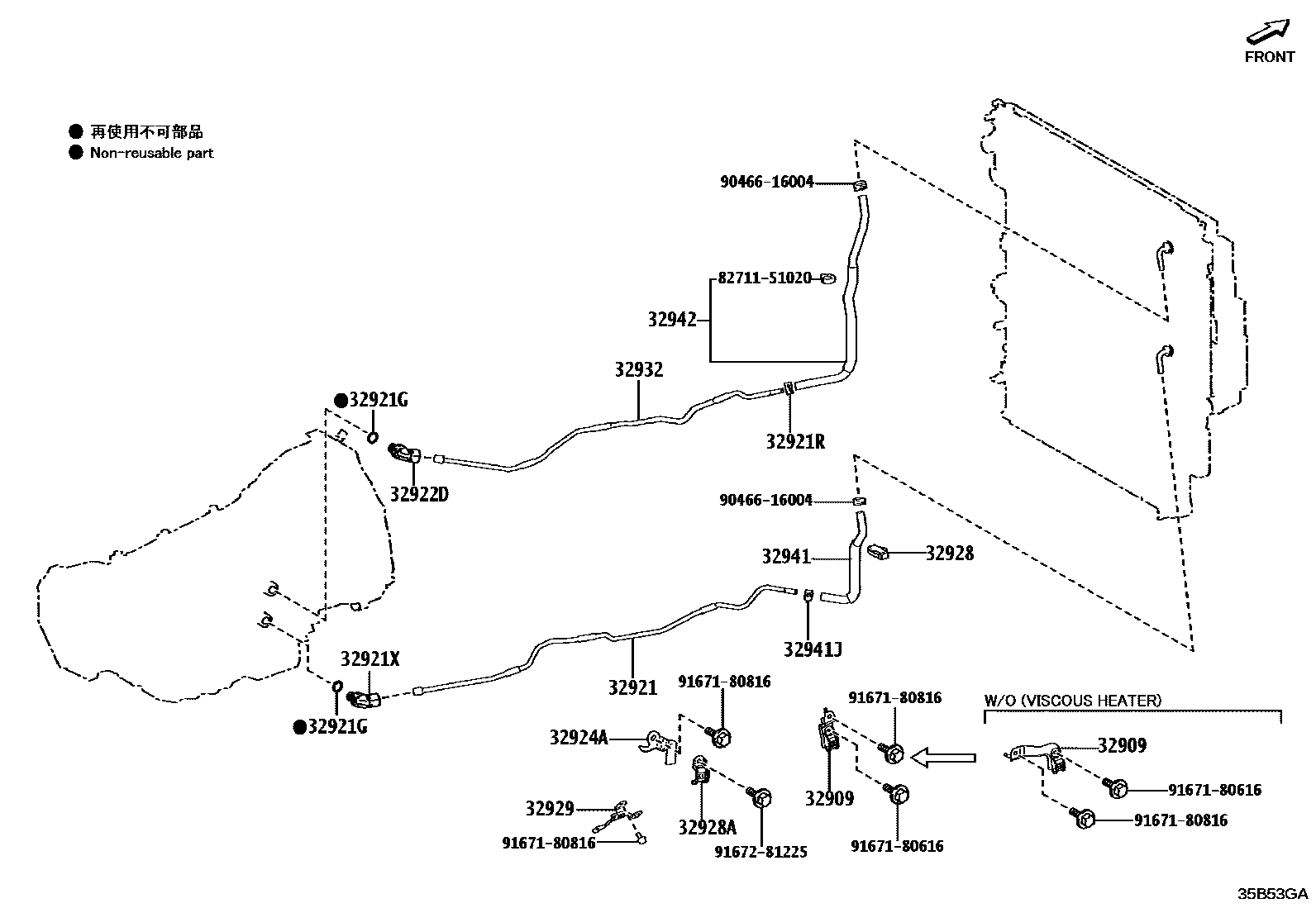

OIL COOLER & TUBE (ATM)

0001 1AL80F,AC60F 0002 1AL80F 0003 1AL80F 0004 1AC60F

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-60330iTRJ250202401

main32909-60350iGDJ250..RHD..EUR202401-202509

main32909-60360iGDJ250..LHD..(EUR,GEN); GDJ250..RUS202401

COLD AREA SPEC

32921TUBE, OIL COOLER INLET, NO.1

main32921-60540iTJA250..GEN,RUS202401

main32921-60550iTJA250..GCC202401

main32921-60580iTRJ250202401

main32921-60590iGDJ250..RHD..EUR202401-202509

main32921-60620iGDJ250..6FC202405

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGDJ250..RHD..EUR202401-202509

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×6iGDJ250..LHD..EUR;GDJ25#..ARL,GCC,GEN,RUS,SA; TJA250..GEN,RUS; TRJ250;TJA250..GCC202401

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16009iGDJ250..LHD..EUR;GDJ251,TJA250..ARL,GCC;GDJ250,TRJ250..GCC,GEN,RUS,SA202401

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-16009iGDJ250..LHD..EUR;GDJ251,TJA250..ARL,GCC;GDJ250,TRJ250..GCC,GEN,RUS,SA202401

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32924-60220iTJA250202401

main32924-60260iGDJ250..RHD..EUR202401-202509

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030iGDJ250..RHD..EUR202401-202509

main32928-60190iTJA250..GEN,RUS202401

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-60190iGDJ250..LHD..EUR;GDJ251,TJA250..ARL,GEN,RUS;GDJ250,TRJ250..GCC,GEN,RUS,SA; TJA250..GCC202401

32929CLAMP, FLEXIBLE HOSE, NO.2

main32928-60200iGDJ250..RHD..EUR202401-202509

32932TUBE, OIL COOLER OUTLET

main32922-60570iTJA250..GEN,RUS202401

main32922-60580iTJA250..GCC202401

main32922-60610iTRJ250202401

main32922-60620iGDJ250..RHD..EUR202401-202509

main32922-60650iGDJ250..6FC202405

32941HOSE, OIL COOLER INLET, NO.1

main32941-60490iTJA250..GEN,RUS202401

main32941-60510iTRJ250202401

main32941-60520iGDJ250..RHD..EUR202401-202509

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iGDJ250..LHD..EUR;GDJ251,TJA250..ARL,GCC;GDJ250,TRJ250..GCC,GEN,RUS,SA; TJA250..GEN,RUS202401

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60660iTJA250..GEN,RUS202401

main32942-60680iTRJ250202401

main32942-60690iGDJ250..RHD..EUR202401-202509

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9046616004

main90466-16004

9167180616

main91671-80616

9167180816

main91671-80816

9167281225

main91672-81225

19 parts on this diagram · 4 diagrams in section
