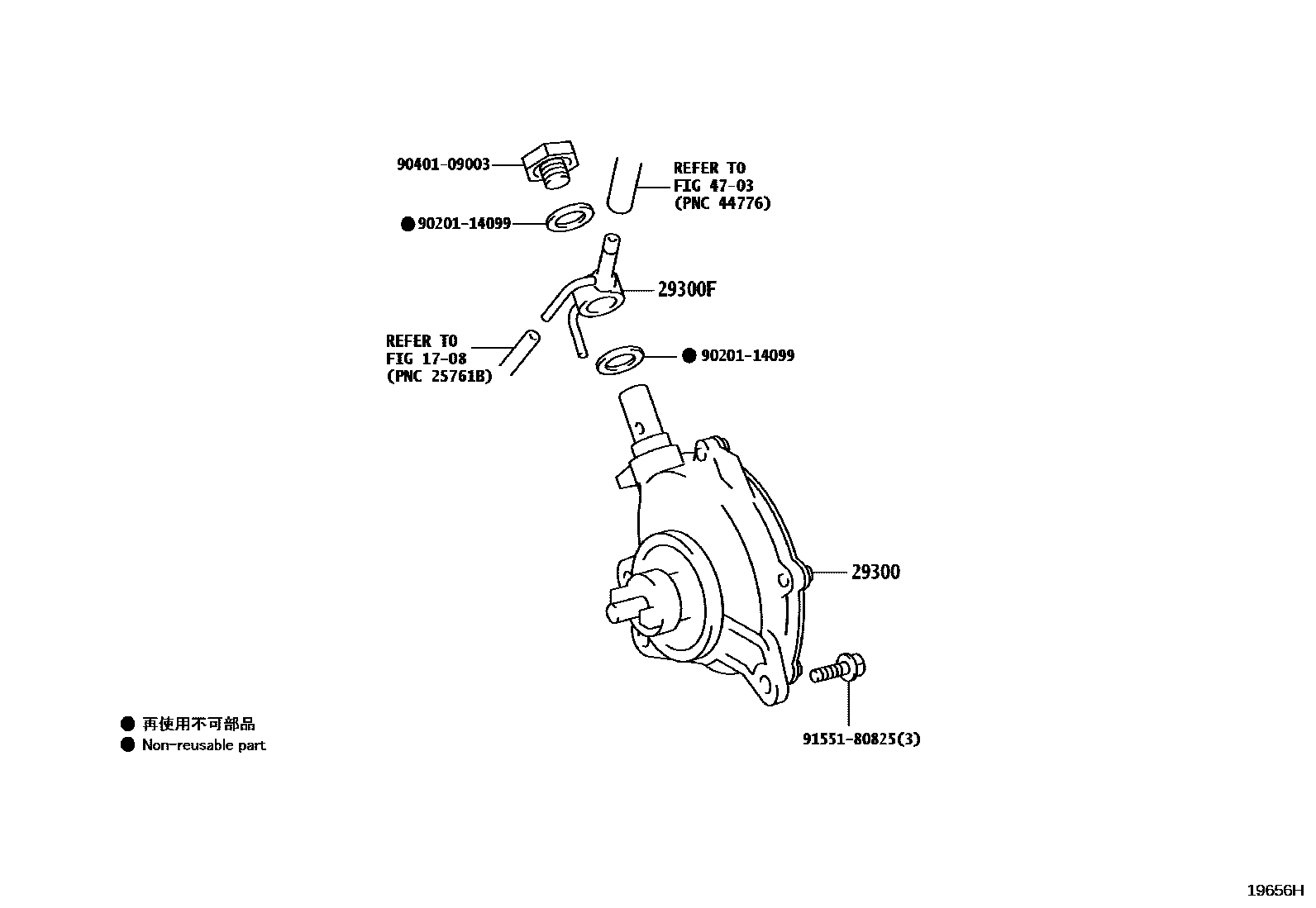

VACUUM PUMP

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

29300PUMP ASSY, VACUUM

main29300-08010i1GDFTV..GDJ250..RHD..EUR202401-202509

(L)

main29300-25012iT24..TJA250202401

main29300-35010i1GDFTV..GDJ250..RHD..EUR202401-202509

(J)

29300FUNION

main90405-09194i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,RUS,SA202401-202509

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9020114099

main90201-14099

9040109003

main90401-09003

9155180825

main91551-80825

7 parts on this diagram · 2 diagrams in section
