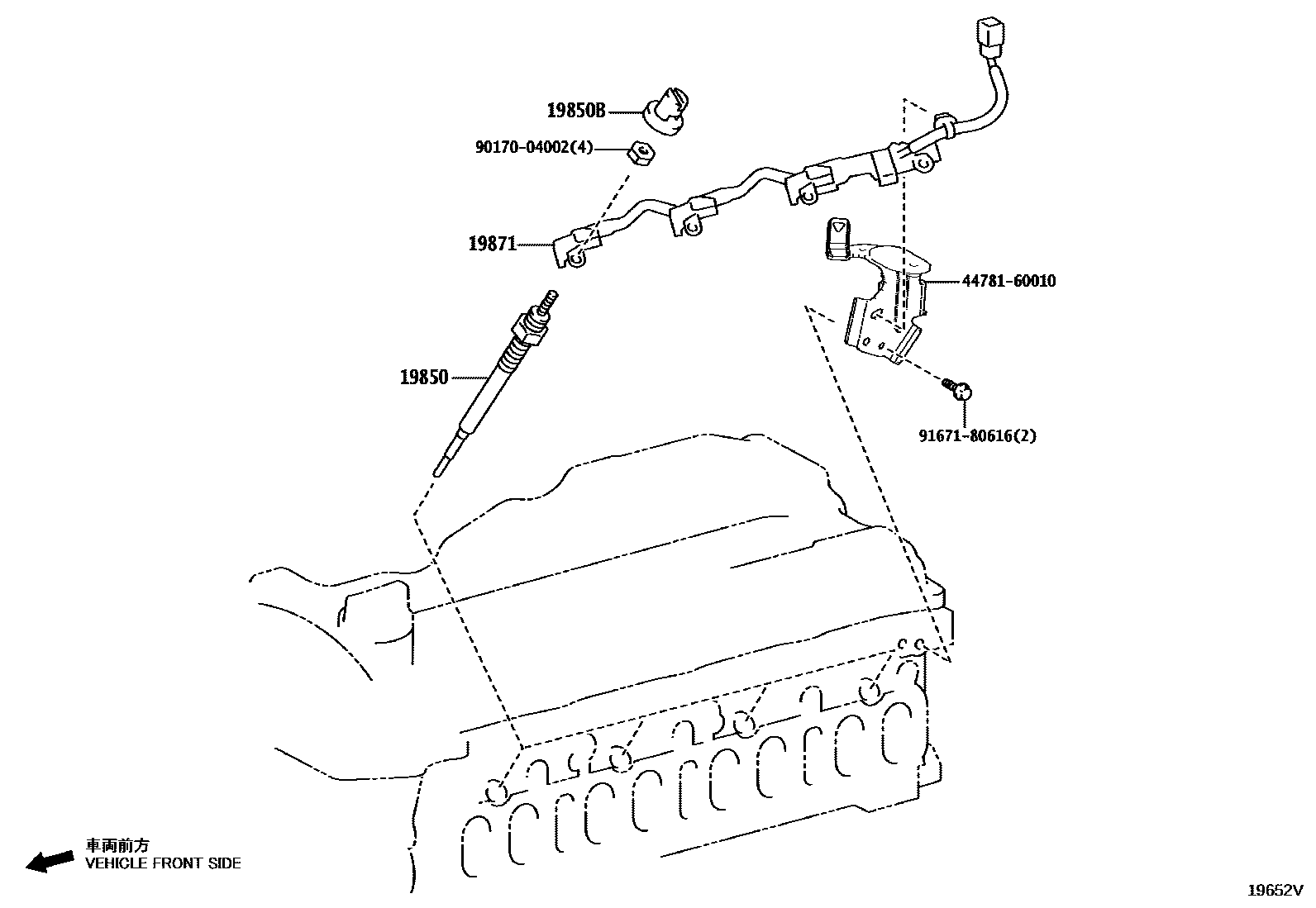

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19850PLUG ASSY, GLOW

main19850-11040×4i1GDFTV..GDJ250..RHD..EUR202401-202509

*BV-GV=12V-7V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1GDFTV..GDJ250..RHD..EUR202401-202509

19871CONNECTOR, GLOW PLUG NO.1

main19871-11010i1GDFTV..GDJ250..RHD..EUR202401-202509

4478160010BRACKET, HOSE

main44781-60010

9017004002

main90170-04002

9167180616

main91671-80616

6 parts on this diagram · 4 diagrams in section
