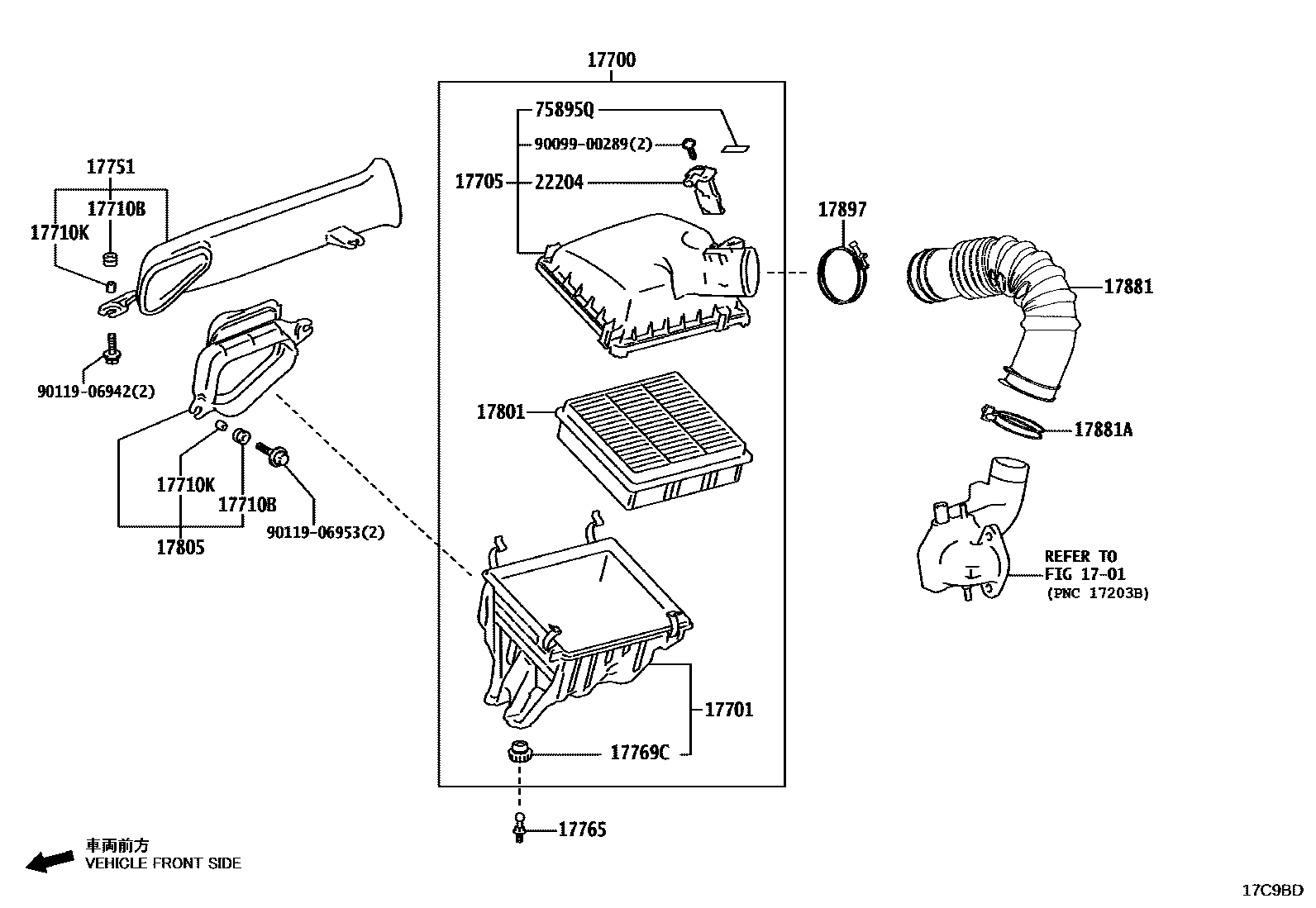

AIR CLEANER

0001 1 0002 1W(INTERCOOLER (AIR COOLED TYP0003 1W(INTERCOOLER (WATER COOLED T0004 1 0005 1

1701

17700CLEANER ASSY, AIR

main17700-11A30i1GDFTV..GDJ25#202401

main17700-25240iT24..TJA250202401

main17700-75570i2TRFE..TRJ250202401

17701CASE SUB-ASSY, AIR CLEANER

main17701-11660i1GDFTV..GDJ25#202401

main17701-25130iT24..TJA250202401

main17701-75430i2TRFE..TRJ250202401

17705CAP SUB-ASSY, AIR CLEANER

main17705-11650i1GDFTV..GDJ25#202401

main17705-25100iT24,2TRFE..TJA250,TRJ250202401

17710BGROMMET

main90480-14021iT24,2TRFE..TJA250,TRJ250202401

17710KCOLLAR(FOR AIR CLEANER)

main90387-07016iT24,2TRFE..TJA250,TRJ250202401

17751INLET, AIR CLEANER, NO.1

main17751-25100iT24..TJA250202401

main17751-70180i1GDFTV..GDJ25#202401

main17751-75010i2TRFE..TRJ250202401

17765STAY, AIR CLEANER, NO.1

main17765-25010iT24,2TRFE..TJA250,TRJ250202401

17769SUPPORT, AIR CLEANER

main17769-25030iT24,2TRFE..TJA250,TRJ250202401

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25030i1GDFTV..GDJ25#202401

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31141i2TRFE..TRJ250202401

main17801-31180iT24..TJA250202401

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-25010i1GDFTV..GDJ25#202401

17881HOSE, AIR CLEANER, NO.1

main17880-75200i2TRFE..TRJ250202401

main17881-11670i1GDFTV..GDJ25#202401

main17881-25090iT24..TJA250202401

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800iT24,2TRFE..TJA250,TRJ250202401

17897CLAMP, HOSE(FOR AIR CLEANER)

main96111-10830i1GDFTV..GDJ25#202401

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iT24,2TRFE..TJA250,TRJ250202401

main22204-75040i1GDFTV..GDJ25#202401

75895QTAPE, MOULDING, NO.1

main75895-52050iGDJ25#202401

9009900289

main90099-00289

9011906942

main90119-06942

9011906953

main90119-06953

20 parts on this diagram · 5 diagrams in section
