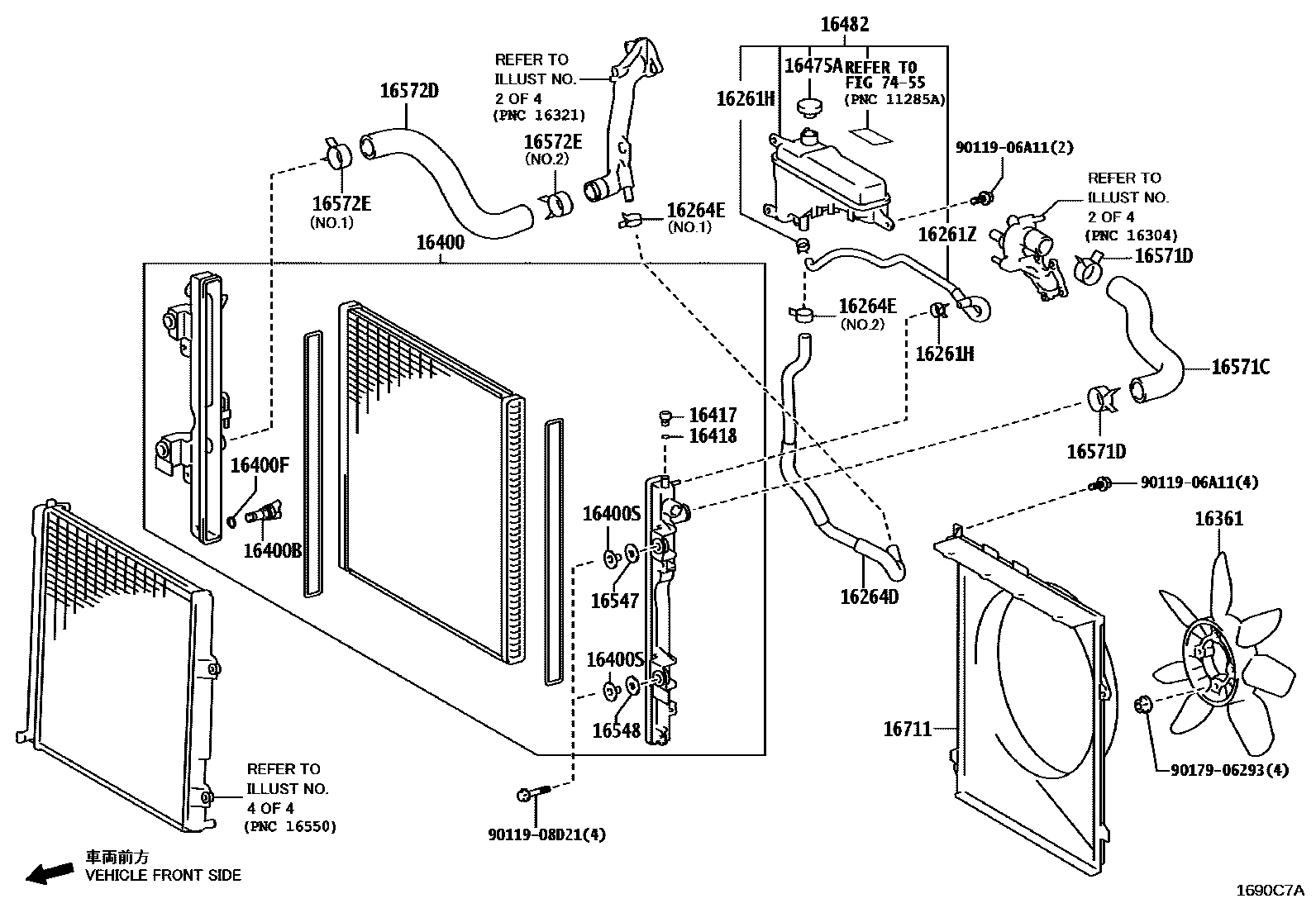

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16261ZHOSE, WATER BY-PASS, NO.1
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
main96138-42101×4i1GDFTV..GDJ25#; 1GDFTV..GDJ25#..ARL,EUR,GCC,GEN,RUS; 1GDFTV..GDJ250..L..GEN;1GDFTV..GDJ250..LHD..8FC..(A,R)..GEN; 1GDFTV..GDJ250..LHD..8FC..(A,L,R)..GEN; 1GDFTV..GDJ250..LHD..GEN; 1GDFTV..GDJ250..R..GCC; 1GDFTV..GDJ250..SA202401
COLD AREA SPEC; COLD AREA SPEC&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS); DESTINATION PACKAGE(OTHER&EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO2, WITHOUT(ON BOARD DIAGNOSIS); NO.1
NO.2
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
##
16400FPACKING(FOR RADIATOR DRAIN COCK)
##
16400SCOLLAR(FOR RADIATOR)
16417COCK
16418PACKING
16475ACAP, RESERVE TANK
16482TANK SUB-ASSY, RADIATOR RESERVE
16547BUSH, RADIATOR SUPPORT, NO.1
16548BUSH, RADIATOR SUPPORT, NO.2
16571CHOSE, RADIATOR, NO.1
DESTINATION PACKAGE(ERP)-UKRAINE SPEC&ENGINE-1GD-FTV&EXHAUST EMISSION CONTROL-EURO6-RDE
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
7455CAUTION PLATE
9011906A11
main90119-06A11
9011908D21
main90119-08D21
9017906293
main90179-06293
