WATER PUMP

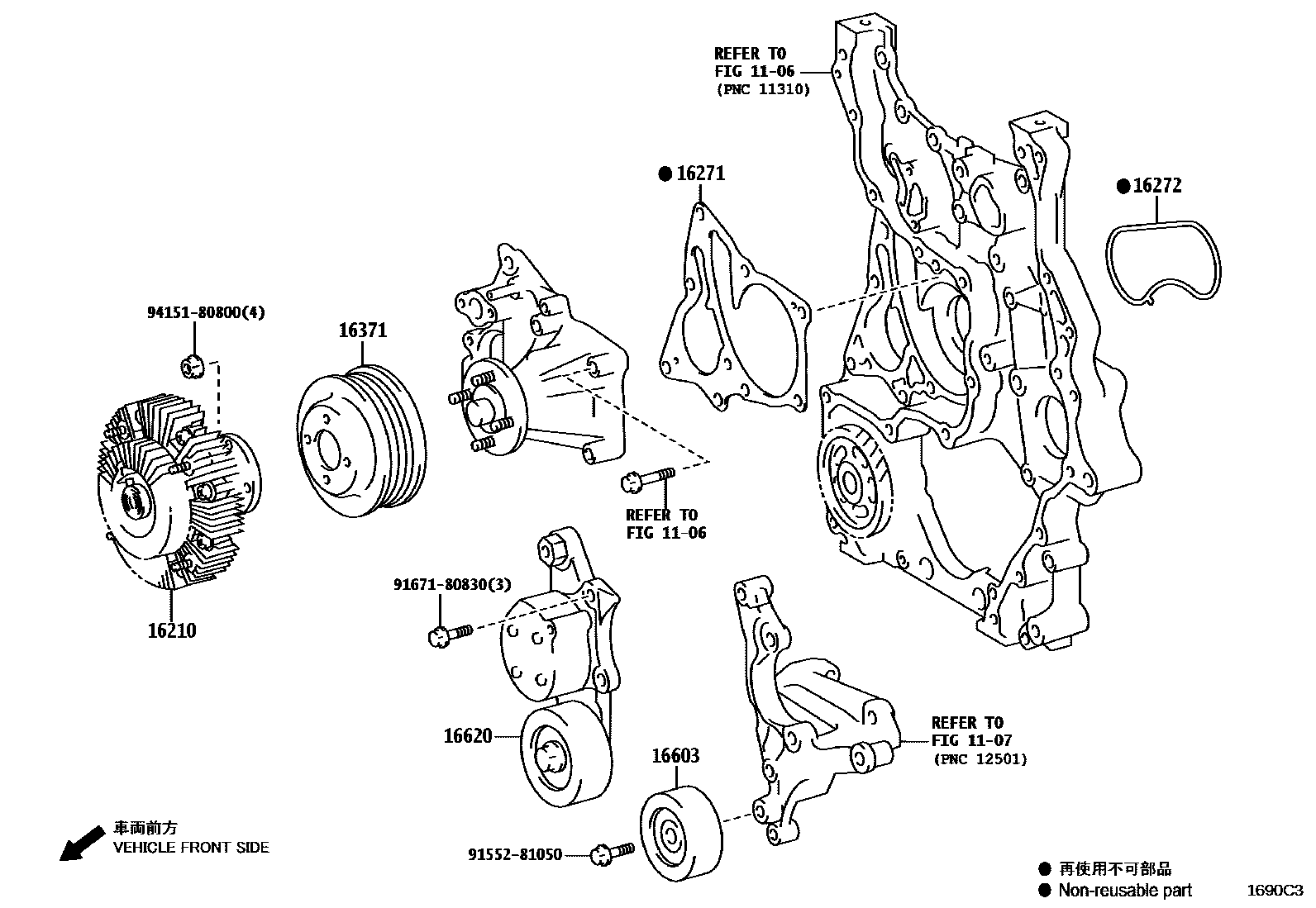

Parts diagram
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
1107MOUNTING
→ Go to FIG 11-07
16210COUPLING ASSY, FLUID
main16210-11030i202401
main16210-75100i202401
16271GASKET, WATER PUMP
main16271-11010i202401
main16271-25020i202401
16272GASKET, WATER PUMP, NO.2
main16272-11010i202401
16371PULLEY, FAN
main16371-11010i202401
main16371-75040i202401
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0E010i202408
main16603-31040i202401
main16603-31050i202401
16620TENSIONER ASSY, V-RIBBED BELT
main16620-11010i202401
main16620-25040i202401
DESTINATION PACKAGE(OTHER; DESTINATION PACKAGE(OTHER-BOLIVIA SPEC; DESTINATION PACKAGE(OTHER-COLOMBIA SPEC; DESTINATION PACKAGE(OTHER-YEMEN SPEC
main16620-25060i202401
main16620-35010i202408
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800

11 parts on this diagram · 3 diagrams in section
