Toyota LAND CRUISER PRADO — ENGINE OIL COOLER

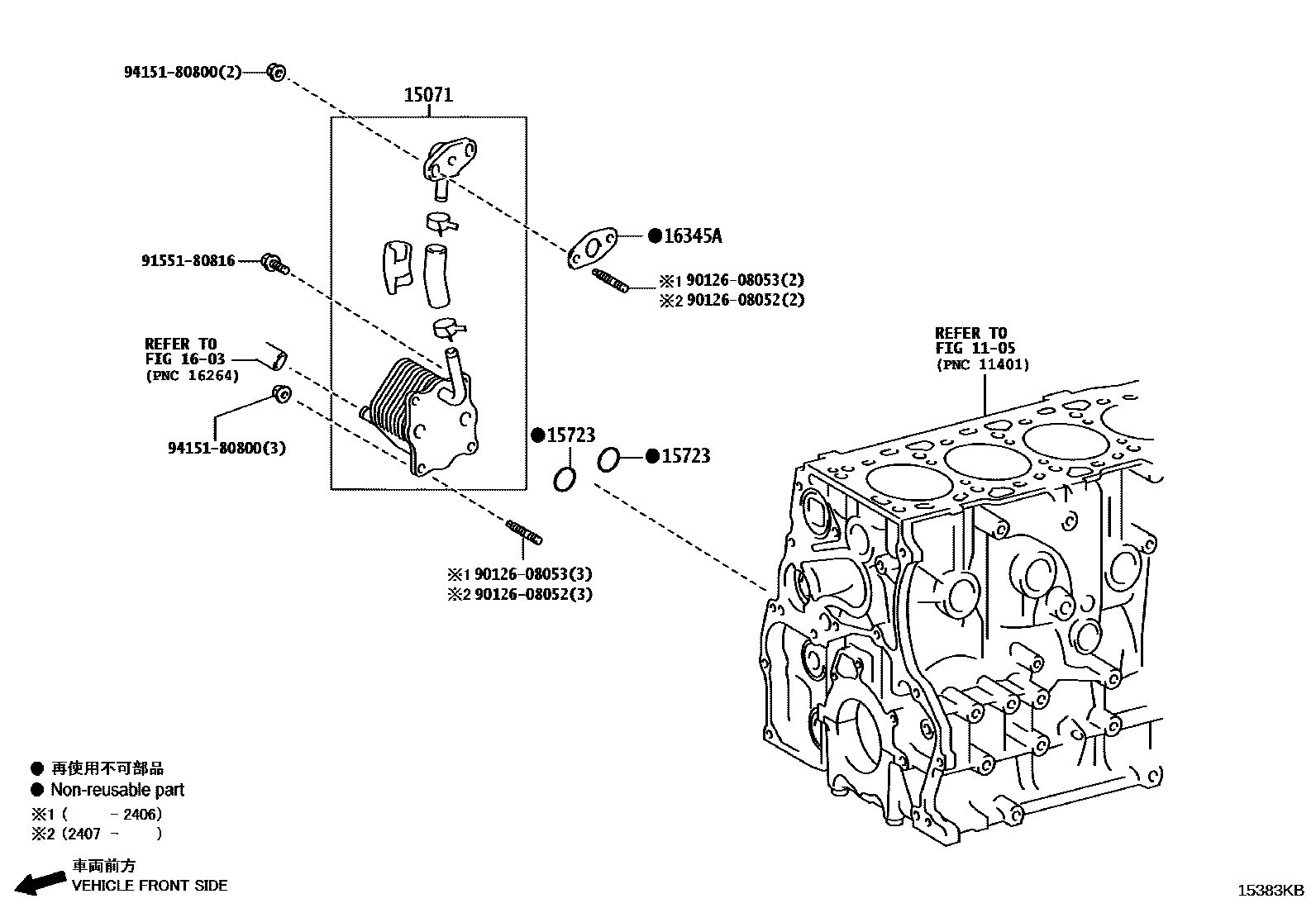

Parts diagram
1105CYLINDER BLOCK
→ Go to FIG 11-05
15071COOLER SET, ENGINE OIL
15071-08010
15723RING, O
90301-22007
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
16345AGASKET, WATER OUTLET PIPE
9012608052
90126-08052
9012608053
90126-08053
9155180816
91551-80816
9415180800
94151-80800

9 parts on this diagram · 3 diagrams in section

ENGINE OIL COOLER for Toyota LAND CRUISER PRADO

This section contains 17 genuine Toyota parts for the ENGINE OIL COOLER system of the Toyota LAND CRUISER PRADO. Key components include: CYLINDER BLOCK, OIL FILTER, COOLER SET, ENGINE OIL, BOLT, OIL COOLER UNION, COOLER ASSY, OIL.
