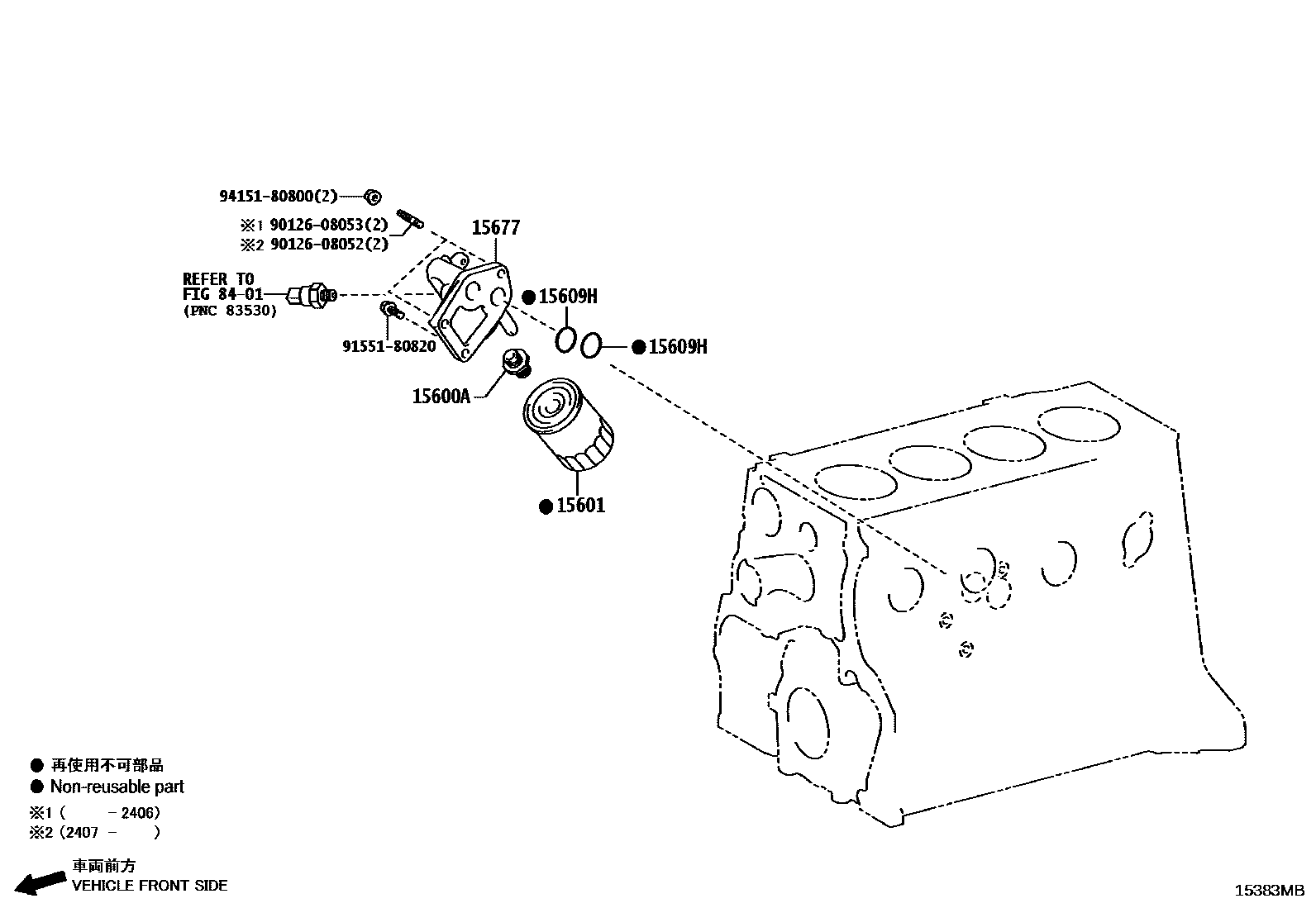

OIL FILTER

0001 1 0002 1 0003 1

15600AUNION(FOR OIL FILTER)

main90404-19015i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,RUS,SA202401

15601FILTER SUB-ASSY, OIL

main90915-10009iT24..TJA250202401

main90915-20005i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,RUS,SA; 2TRFE..TRJ250202401

15609BRACKET SUB-ASSY, OIL FILTER

main15609-75070i2TRFE..TRJ250202401

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-17017i2TRFE..TRJ250202401

main96723-24030×2i1GDFTV..GDJ250..LHD..EUR;1GDFTV..GDJ25#..ARL,GCC,GEN,RUS,SA202401

15677BRACKET, OIL FILTER

main15677-11020i1GDFTV..GDJ250..RHD..EUR202401-202509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9012608052

main90126-08052

9012608053

main90126-08053

9155180820

main91551-80820

9415180800

main94151-80800

10 parts on this diagram · 3 diagrams in section
