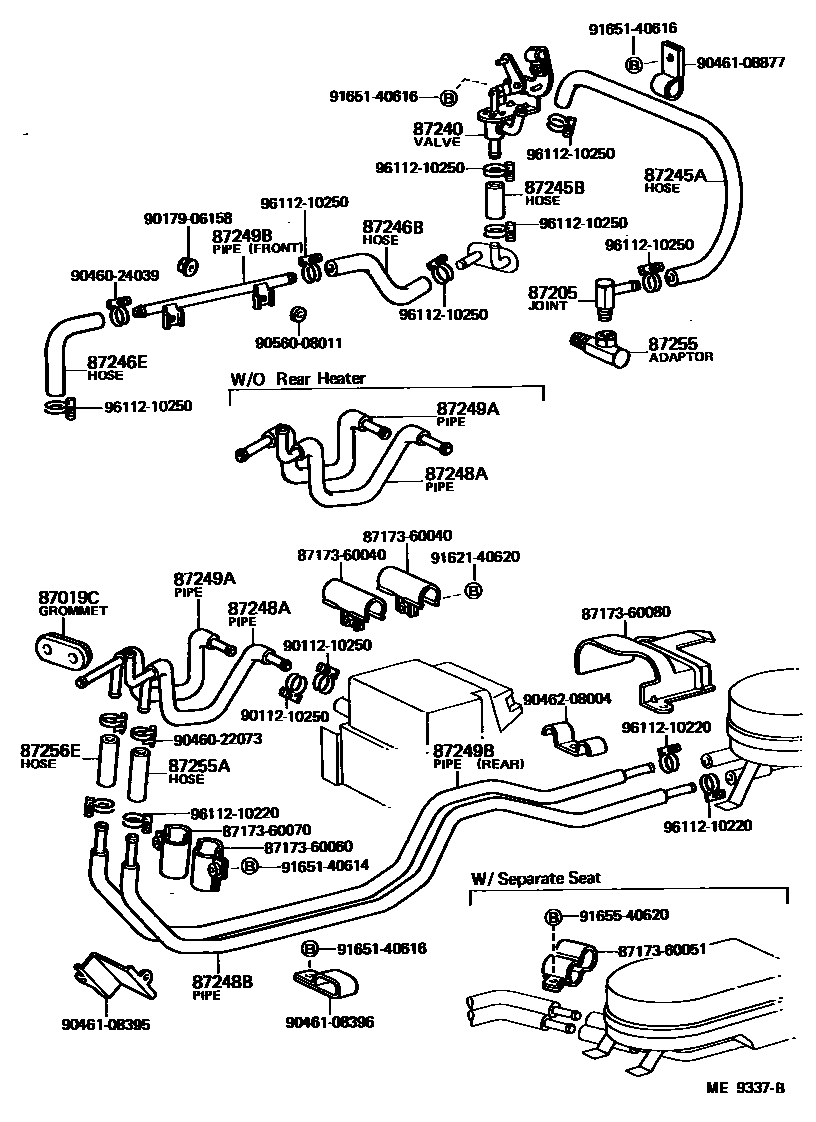

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87019CGROMMET, HEATER HOSE

main90480-01167iBJ4#,FJ4#,HJ47198008-198604

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30190iBJ4#,FJ4#198008-198401

main87251-60050iFJ4#198401-198604

main87251-95400iHJ47198008-198506

87240VALVE ASSY, HEATER WATER

main87240-60010iFJ4#198008-198604

FR HEATER

main87240-60031iBJ4#,HJ47198008-198506

FR HEATER

87245AHOSE, HEATER WATER, INLET A

main99552-30500iBJ4#198008-198309

*H,L=310

main99552-30700iFJ4#198008-198309

*H,L=520

main99556-30310iBJ4#198309-198410

*H,L=310

main99556-30520iFJ4#198309-198604

*H,L=520

87245BHOSE, HEATER WATER, INLET B

main87245-60080iBJ4#198110-198410

*H,L=230

main99552-30100iFJ4#198008-198309

*H,L=50

main99552-30300iBJ4#198008-198110

*H,L=230

main99552-30500iHJ47198008-198506

*H,L=320

main99556-30050iFJ4#198309-198604

*H,L=50

87246BHOSE, HEATER WATER, OUTLET B

main87245-60040iBJ4#198008-198110

main87245-60041iBJ4#198110-198410

main87245-60070iFJ4#198008-198604

main99552-30300iHJ47198008-198506

*H,L=280

87246EHOSE, HEATER WATER, OUTLET E

main87245-90A10iHJ47198008-198110

main87245-90A19iHJ47198110-198506

main87245-90A26iBJ4#198309-198410

main87247-20051iBJ4#198008-198309

main99552-30300iFJ40..RHD..V; FJ45..RHD..PIC198008-198110

*H,L=210

main99552-30500iFJ4#198008-198309

*H,L=320

main99556-30210iFJ40,45..RHD..GEN198309-198506

*H,L=210

main99556-30320iFJ4#198309-198604

*H,L=320

87248APIPE, HEATER WATER INLET, A

main87248-60102iFJ4#,HJ47198008-198604

FR HEATER

main87248-60192iHJ47..VKC198210-198410

RR HEATER

main87248-60240iBJ4#198008-198110

FR HEATER

main87248-60241iBJ4#198110-198410

FR HEATER

main87248-60251iBJ4#..TP,V198008-198110

RR HEATER

main87248-60252iBJ4#..(TP,V)..(EUR,GEN)198210-198410

RR HEATER

main87248-60280iFJ4#..LHD..GEN198008-198604

FR HEATER,W/COOLER

main87248-60300iFJ4#..LHD..(TP,V)..GEN198008-198604

RR HEATER,W/COOLER

main87248-60330iBJ40,42,45..LHD..(PIC,V)..GEN198008-198110

FR HEATER,W/COOLER

main87248-60331iBJ40,42,45..LHD..(PIC,V)..GEN198110-198410

FR HEATER,W/COOLER

main87248-60350iBJ40,42,45..LHD..V..GEN198008-198110

RR HEATER,W/COOLER

main87248-60351iBJ40,42,45..LHD..V..GEN198110-198410

RR HEATER,W/COOLER

87248BPIPE, HEATER WATER INLET, B

main87248-60370iBJ4#,FJ4#,HJ47..TP,V198008-198604

W/BENCH SEAT

main87248-60390iBJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)198008-198604

W/SEPARATE SEAT

87249APIPE, HEATER WATER OUTLET, A

main87248-60163iHJ47198008-198506

FR HEATER

main87248-60203iFJ4#..TP,V198008-198210

RR HEATER

main87248-60291iFJ4#..LHD..GEN198008-198604

FR HEATER,W/COOLER

main87248-60311iFJ4#..LHD..(TP,V)..GEN198008-198604

RR HEATER,W/COOLER

main87248-60320iHJ47..VKC198008-198410

RR HEATER

main87248-60340iBJ40,42,45..LHD..(PIC,V)..GEN198008-198110

FR HEATER,W/COOLER

main87248-60341iBJ40,42,45..LHD..(PIC,V)..GEN198110-198410

FR HEATER,W/COOLER

main87248-60360iBJ40,42,45..LHD..V..GEN198008-198110

RR HEATER,W/COOLER

main87248-60361iBJ40,42,45..LHD..V..GEN198110-198410

RR HEATER,W/COOLER

main87249-60104iFJ4#198008-198604

FR HEATER

main87249-60110iBJ4#198008-198110

FR HEATER

main87249-60111iBJ4#198110-198410

FR HEATER

main87249-60121iBJ4#..TP,V198008-198110

RR HEATER

main87249-60122iBJ4#..TP,V198110-198210

RR HEATER

87249BPIPE, HEATER WATER OUTLET, B

main87248-60260iBJ4#198008-198410

FR HEATER

main87248-60380iBJ4#,FJ4#,HJ47..TP,V198008-198210

RR HEATER,W/BENCH SEAT

main87248-60381iBJ4#,FJ4#..(TP,V)..(EUR,GEN)198303-198604

RR HEATER,W/BENCH SEAT

main87248-60400iBJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)198008-198604

RR HEATER,W/SEPARATE SEAT

main87248-90A06iFJ4#198008-198604

FR HEATER

main87248-90A13iHJ47198008-198110

FR HEATER

main87248-90A16iHJ47198110-198506

FR HEATER

87255ADAPTER, WATER HOSE JOINT

main87251-60041iFJ4#198008-198604

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main99552-20100iBJ4#,FJ4#..(TP,V)..(EUR,GEN); HJ47..VKC198210-198309

*H,L=60

main99556-20060iHJ47..VKC198309-198410

*H,L=60

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main99552-20100iBJ4#,FJ4#,HJ47..TP,V198008-198210

*H,L=60

main99556-20060iHJ47..VKC198309-198410

*H,L=60

8717360040PROTECTOR, WATER VALVE, HEATER

main87173-60040

8717360051PROTECTOR, WATER VALVE, HEATER

main87173-60051

8717360060PROTECTOR, WATER VALVE, HEATER

main87173-60060

8717360070PROTECTOR, WATER VALVE, HEATER

main87173-60070

8717360080PROTECTOR, WATER VALVE, HEATER

main87173-60080

9011210250

main90112-10250

9017906158

main90179-06158

9046022073

main90460-22073

9046024039

main90460-24039

9046108395

main90461-08395

9046108396

main90461-08396

9046108877

main90461-08877

9046208004

main90462-08004

9056008011

main90560-08011

9162140620

main91621-40620

9165140614

main91651-40614

9165140616

main91651-40616

9165540620

main91655-40620

9611210220

main96112-10220

9611210250

main96112-10250

34 parts on this diagram · 3 diagrams in section
