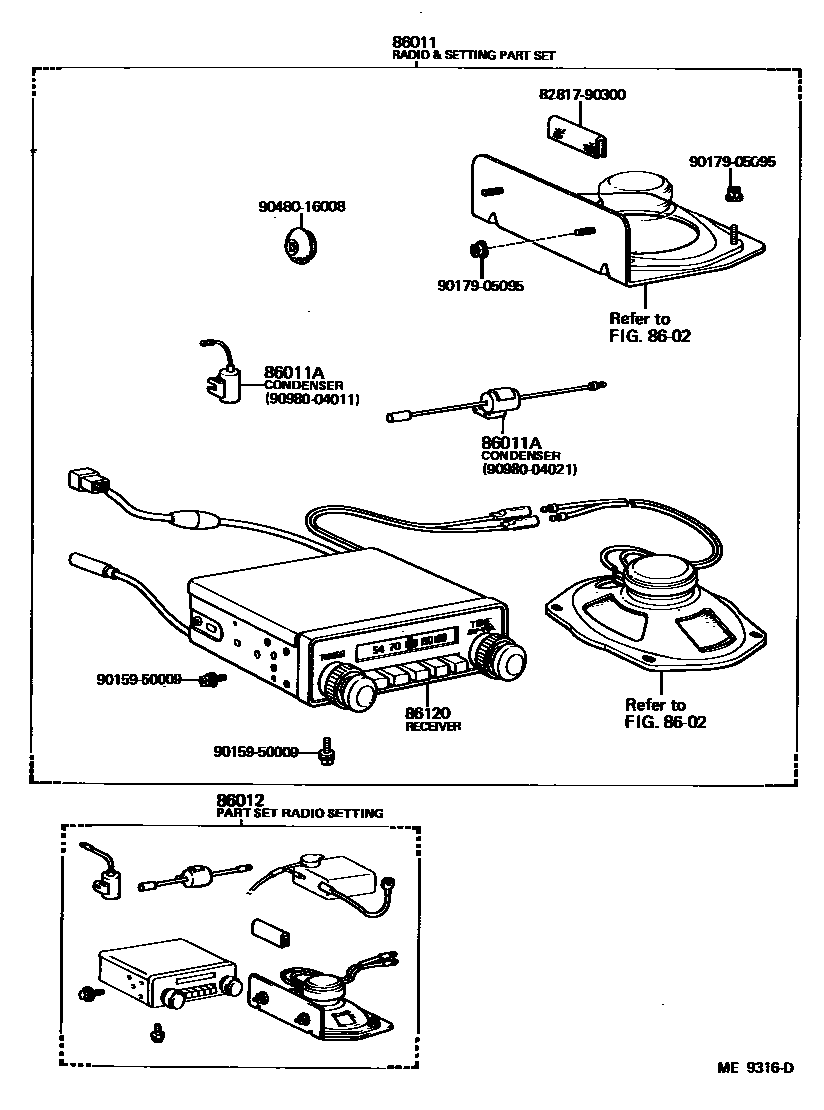

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0003 1

86011RADIO & SETTING PARTS SET

main86011-60031iBJ4#..LHD..GEN; FJ4#,HJ47..LHD198110-198210

12V,AM

main86011-69015iBJ4#..EUR,GEN198008-198110

24V,AM

86011ACONDENSER, RADIO SETTING

main90980-04011×2iBJ4#,FJ4#,HJ47198008-198604

VOLTAGE REGULATOR

main90980-04021iBJ4#,FJ4#,HJ47198008-198604

IGNITION COIL

86012PARTS SET, RADIO SETTING

main86012-69018iBJ4#..LHD..GEN; FJ4#,HJ47..LHD198110-198210

12V,AM OR AM/SW

8602SPEAKER

→ Go to FIG 86-02

86120RECEIVER ASSY, RADIO

main86120-14460iFJ40,43..LHD..(TPC,VKC)..4F; FJ45..LHD..GEN..IV; FJ45..LHD..VKC..GEN198301-198604

12V,AM/FM MULTIPLEX

main86120-14520iFJ40,45;BJ40,42,43,45,FJ43,HJ47..ARL,GEN198210-198604

12V,AM

main86120-25020iBJ4#..EUR,GEN198008-198110

24V,AM

main86120-35025iFJ40,45..3F,4F;BJ4#,FJ43,HJ47..ARL,GEN198008-198106

12V,AM

main86120-60010iBJ4#,FJ4#,HJ47..LHD..GEN198110-198210

12V,AM/SW

main86120-60021iBJ4#..LHD..GEN; FJ4#,HJ47..LHD198110-198210

12V,AM

main86120-60030iBJ4#..LHD198110-198210

24V,AM

main86120-60040iBJ4#..RHD..GEN198110-198204

24V,AM

main86120-60041iBJ45..EUR;BJ40,42,43,46..LHD198210-198410

24V,AM

main86120-60060iFJ40..LHD..4F; FJ45..LHD..PIC..GEN198306-198604

AM/FM(W/TAPE PLAYER)

main86120-60080iBJ4#..RHD..GEN198110-198410

24V,AM/FM(W/TAPE PLAYER)

main86120-60090iBJ40,42,43,45,FJ4#,HJ47..LHD..GEN198210-198604

12V,AM/SW

8281790300PROTECTOR, WIRING HARNESS, NO.1

main82817-90300

9015950009

main90159-50009

9017905095

main90179-05095

9048016008

main90480-16008

9098004021

main90980-04021

10 parts on this diagram · 2 diagrams in section
