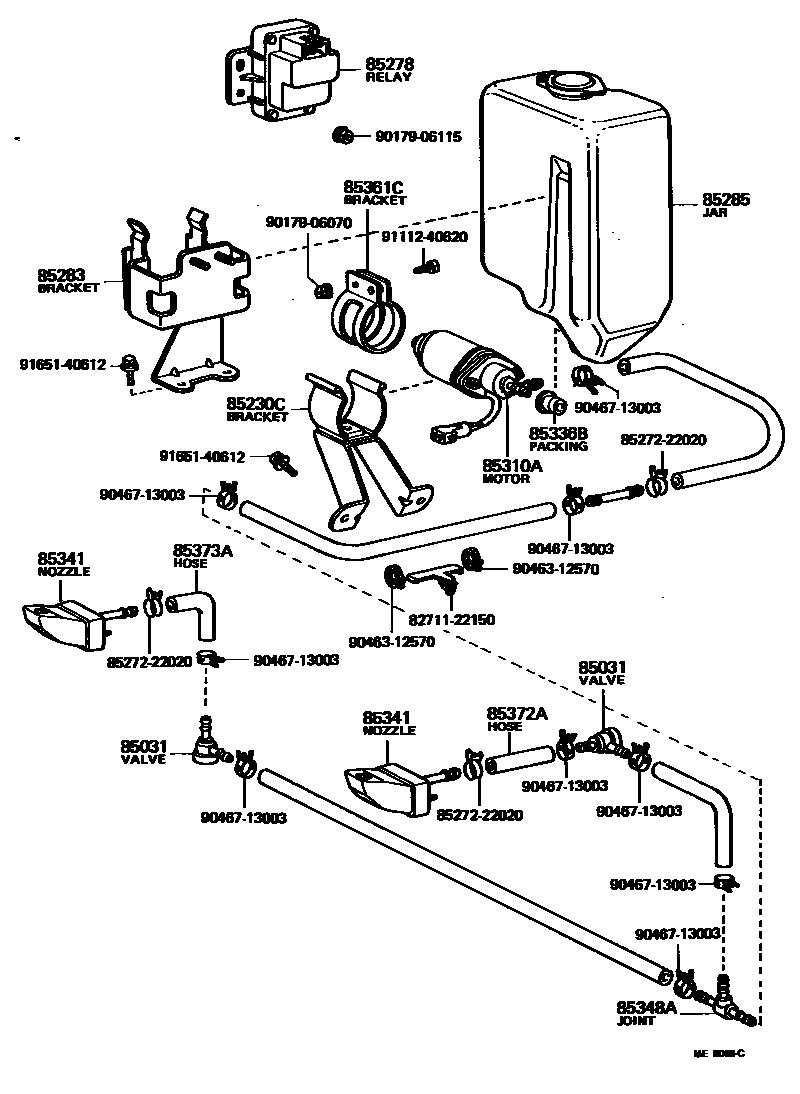

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iBJ42,45,46..EUR198008-198410

85230CBRACKET ASSY, HEADLAMP CLEANER

main85361-60080iBJ42,45,46..EUR198008-198410

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-60010iBJ42,45,46..EUR198008-198410

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-60070iBJ42,45,46..EUR198008-198410

85285JAR, HEADLAMP CLEANER WASHER

main85330-60080iBJ42,45,46..EUR198008-198410

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-60050iBJ42,45,46..EUR198008-198410

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iBJ42,45,46..EUR198008-198410

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-60070×2iBJ42,45,46..EUR198008-198410

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iBJ42,45,46..EUR198008-198410

85361CBRACKET, WASHER

main85361-14100iBJ42,45,46..EUR198008-198410

85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)

main90445-14055iBJ42,45,46..EUR198008-198410

L=60

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main85271-22020iBJ42,45,46..EUR198008-198410

8271122150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22150

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9017906070

main90179-06070

9017906115

main90179-06115

9046312570

main90463-12570

9046713003

main90467-13003

9111240620

main91112-40620

9165140612

main91651-40612

20 parts on this diagram · 1 diagram in section
