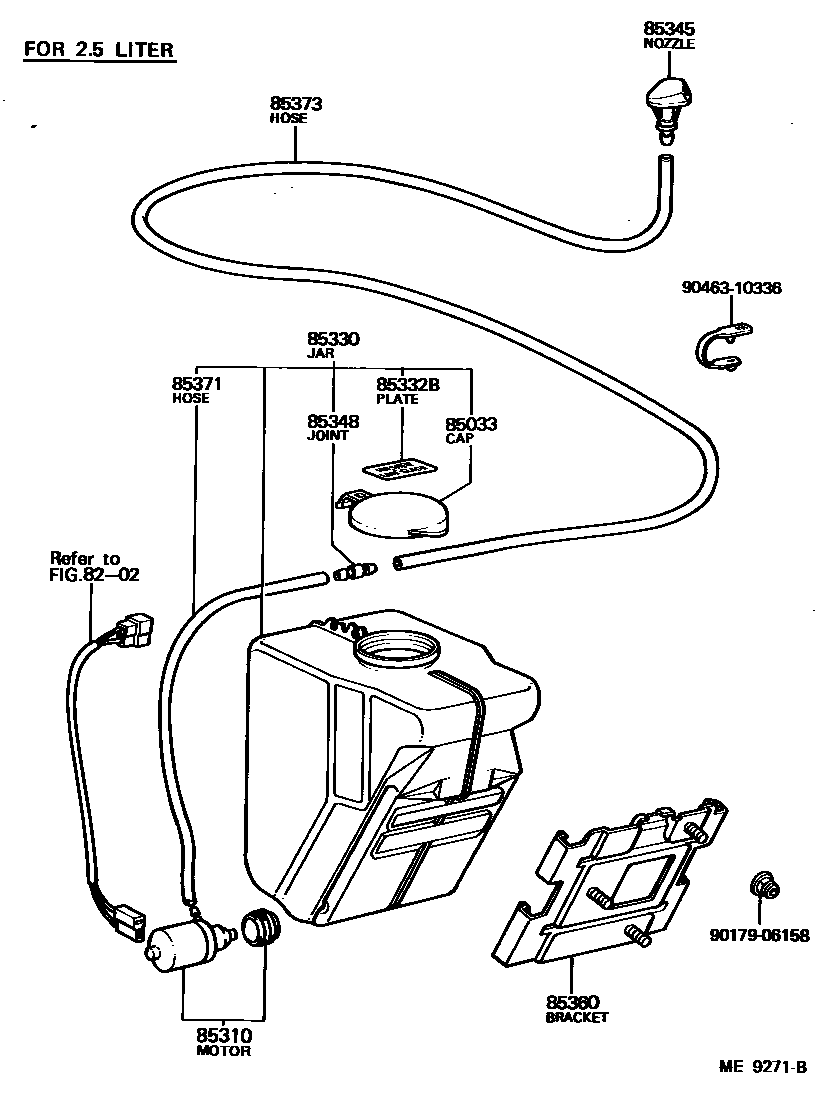

WINDSHIELD WASHER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

85033CAP ASSY, WINDSHIELD WASHER

main85332-60010iBJ4#,FJ4#,HJ47198008-198604

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-60010iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V

main85310-60020iBJ4#..EUR,GEN198008-198410

24V

85330JAR ASSY, WINDSHIELD WASHER

main85330-60011iFJ4#,HJ47198008-198604

main85330-60051iBJ4#198008-198410

85332BLABEL, WASHER

main85332-60020iBJ4#198008-198410

85345NOZZLE, WINDSHIELD WASHER

main85035-60050iBJ4#,FJ4#,HJ47198008-198604

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-10060iBJ4#,FJ4#,HJ47198008-198604

85360BRACKET ASSY, WINDSHIELD WASHER

main85360-60010iFJ4#,HJ47198008-198604

main85361-60060iBJ4#198008-198410

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iBJ4#,FJ4#,HJ47198008-198604

L=1100(*H,L=100)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06006iBJ4#198008-198410

L=2000,*H,L=1200

main90446-06292iFJ40..TPC..5F;FJ4#,HJ47..RHD198008-198506

L=3300(*H,L=2400)

9017906158

main90179-06158

9046310336

main90463-10336

12 parts on this diagram · 2 diagrams in section
