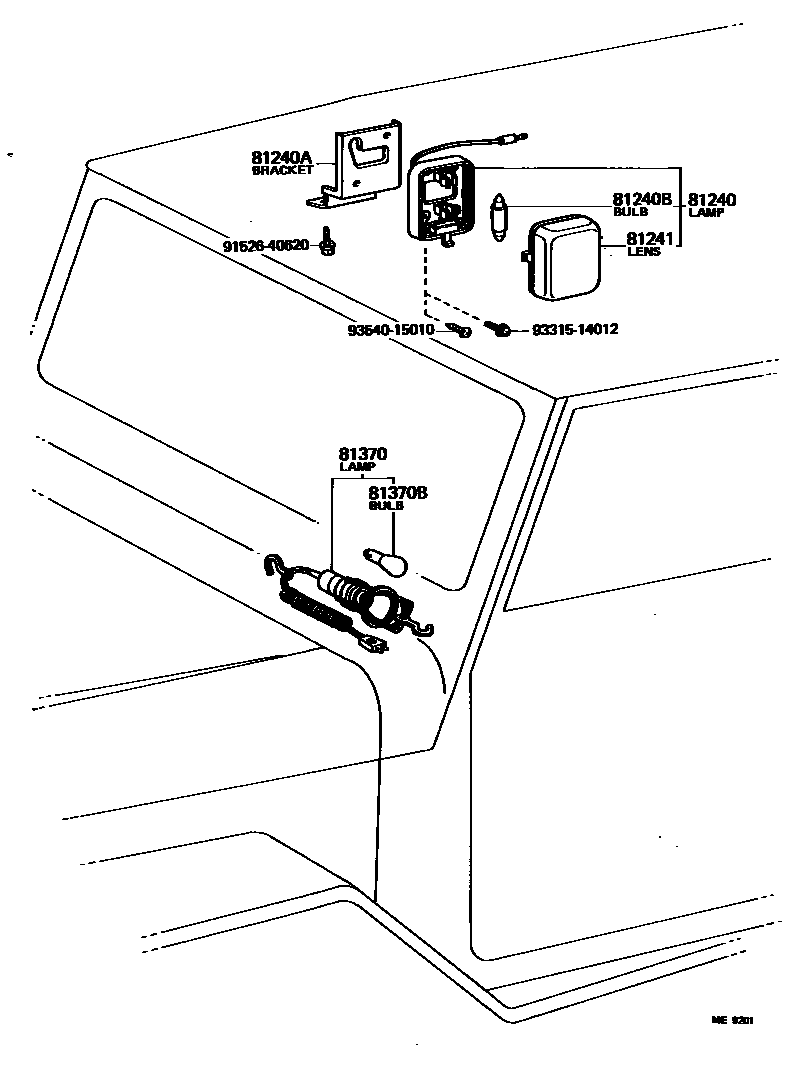

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-90300iBJ45..GEN;BJ45..PIC..EUR; FJ40,45..3F,4F;BJ40,42,43,46,FJ43,HJ47..ARL,GEN198008-198110

12V

main81240-90301iBJ40,42,43,46..EUR,GEN; BJ45..VKC..EUR198008-198110

24V

main81240-90800iBJ42,FJ40,45,HJ47..ARL; FJ40,45..EUR198110-198410

12V

main81240-90801iBJ42,45,46..EUR198110-198410

24V

main81240-90802iBJ4#,FJ4#,HJ47..GEN198110-198604

12V

main81240-90803iBJ4#..(TP,V)..GEN198110-198410

24V

81240ABRACKET SUB-ASSY, ROOM LAMP, NO.1

main81488-90300iBJ45,FJ45,HJ47..PIC198008-198604

81240BBULB, ROOM LAMP, NO.1

main90981-11004iBJ45..GEN;BJ45..PIC..EUR; FJ40,45..3F,4F;BJ40,42,43,46,FJ43,HJ47..ARL,GEN198008-198110

12V 10W,12V 10W

main90981-16019iBJ40,42,43,46..EUR,GEN; BJ45..VKC..EUR198008-198110

24V 10W,24V 10W

81241LENS, ROOM LAMP, NO.1

main81241-90300iBJ4#,FJ4#,HJ47..GEN198110-198604

main81241-90800iBJ42,45,46,FJ40,45,HJ47..ARL,EUR198110-198410

81370LAMP ASSY, INSPECTION

main81370-60010iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V

main81370-60040iBJ4#..EUR,GEN198008-198410

24V

81370BBULB, INSPECTION LAMP

main84999-10030iBJ4#..EUR,GEN198008-198410

24V 25W

main99132-11230iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V 23W,12V 23W

9152640620

main91526-40620

9331514012

main93315-14012

9354015010

main93540-15010

9 parts on this diagram · 1 diagram in section
