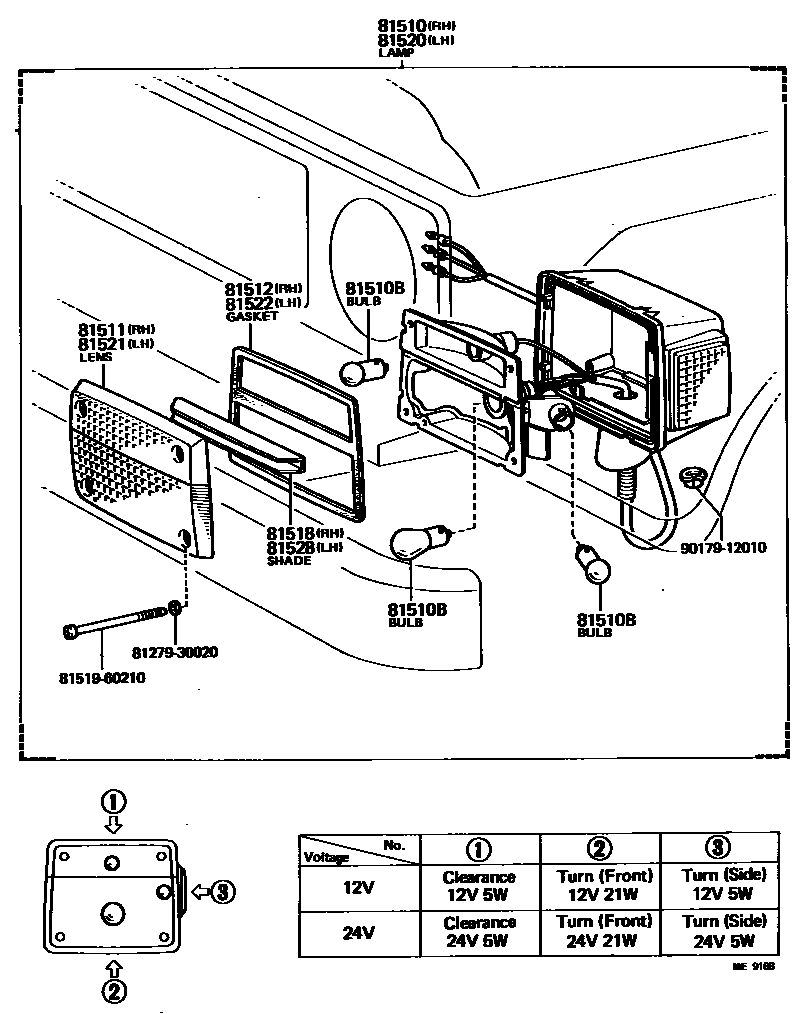

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-69027iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V,AMBER-CLEAR

main81510-69067iBJ4#..EUR,GEN198008-198410

24V,AMBER-CLEAR

main81510-69107iBJ42,45,46..GEN198008-198410

12V,CLEAR

main81510-69117iBJ4#..EUR,GEN198008-198410

24V,CLEAR

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16014×2iBJ4#..EUR,GEN198008-198410

24V 21W,24V 21W

main90981-16016×4iBJ4#..EUR,GEN198008-198410

24V 5W,24V 5W

main99132-11050×4iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V 5W,12V 5W

main99132-11210×2iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198604

12V 21W,12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-60211iBJ4#,FJ4#,HJ47198008-198604

AMBER-CLEAR

main81511-60310iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

CLEAR

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-60210iBJ4#,FJ4#,HJ47198008-198604

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-60210iBJ4#,FJ4#,HJ47198008-198604

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-69027iFJ40,45;BJ4#,FJ43,HJ47..ARL,GEN198008-198510

12V,AMBER-CLEAR

main81520-69067iBJ4#..EUR,GEN198008-198410

24V,AMBER-CLEAR

main81520-69107iBJ40,43,FJ4#,HJ47..EUR,GEN198008-198604

12V,CLEAR

main81520-69117iBJ4#..EUR,GEN198008-198410

24V,CLEAR

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-60080iBJ4#,FJ4#,HJ47198008-198604

AMBER-CLEAR

main81521-60180iBJ4#,FJ4#,HJ47..EUR,GEN198008-198604

CLEAR

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-60210iBJ4#,FJ4#,HJ47198008-198510

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81517-60210iBJ4#,FJ4#,HJ47198008-198604

8127930020WASHER, SIDE TURN SIGNAL LAMP

main81279-30020

8151960210BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-60210

9017912010

main90179-12010

12 parts on this diagram · 1 diagram in section
