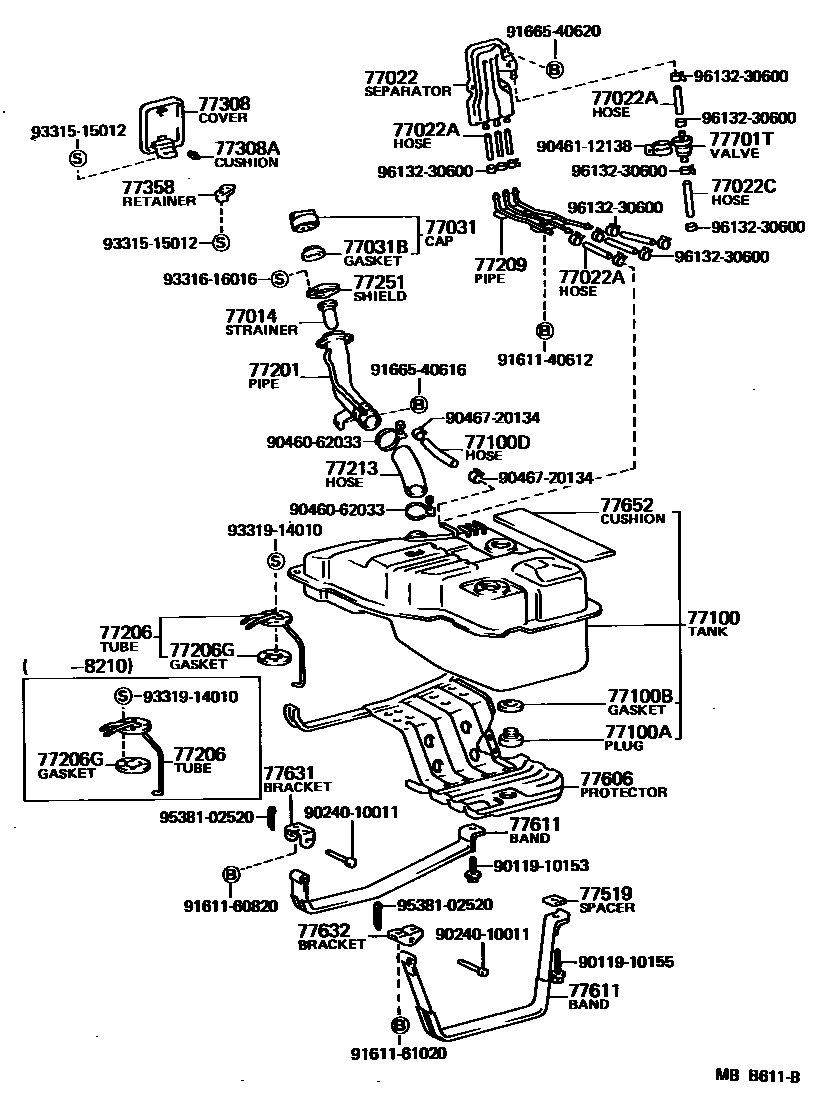

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77014STRAINER SUB-ASSY, FUEL

main77014-60011iBJ4#,FJ4#,HJ47198008-198403

sub77672-60040

main77672-60040iBJ4#,FJ4#,HJ47198403-198604

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77193-60013iBJ4#,FJ4#,HJ47198008-198604

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06010iBJ4#,FJ4#,HJ47..TP,V198008-198510

L=100(*H,L=80)

sub95333-06010

main95332-06010iBJ4#,FJ4#,HJ47198008-198604

L=100(*H,L=60)

sub95333-06010

main95332-06020iBJ40,42,43,46,FJ40,43198008-198510

L=200(*H,L=150)

sub95333-06020

main95332-06020iBJ45,FJ45,HJ47..TP,V198210-198510

L=200(*H,L=170)

sub95333-06020

main95332-06020iBJ45,FJ45,HJ47..PIC198008-198604

L=200

sub95333-06020

main95332-06020iBJ45,FJ45,HJ47..PIC198008-198604

L=200(*H,L=120)

sub95333-06020

main95332-06030iBJ45,FJ45,HJ47..PIC198008-198604

L=300(*H,L=220)

sub95333-06030

main95332-06060iFJ40..ARL198008-198401

L=600(*H,L=460),NEW SOUTH WALES SPEC

sub95333-06060

main95332-06060iFJ40..ARL198401-198410

L=600(*H,L=460),VICTORIA SPEC

sub95333-06060

77022CHOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06010iBJ45,FJ45,HJ47..PIC198008-198604

L=100

sub95333-06010

main95332-06020iBJ45,FJ45,HJ47..PIC198008-198604

L=200

sub95333-06020

main95332-06040iBJ4#,FJ4#,HJ47..TP,V198008-198510

*H,L=360

sub95333-06040

77031CAP ASSY, FUEL TANK

main69058-87403iFJ45..PIC198303-198604

W/KEY

sub69058-60071

main69058-90801iFJ45..PIC..EUR198210-198410

W/KEY

main69058-90803iBJ45,HJ47..PIC..(ARL,GEN)198210-198506

W/KEY

sub69058-90B01

main69058-90804iBJ45..PIC..EUR198210-198410

W/KEY

main77031-95700iFJ45..PIC198008-198303

W/KEY

sub77031-26023

main77310-12090iBJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)198008-198110

sub77310-12100

main77310-12100iBJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)198110-198510

main77310-35061iBJ4#,HJ47..TP,V198207-198510

main77310-55080iBJ45,HJ47..PIC198207-198506

W/O KEY

sub77310-60100

main77310-60051iFJ45..PIC198008-198604

W/O KEY

sub77310-60090

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iBJ4#,FJ4#,HJ47..TP,V198008-198510

main77316-27010iBJ45,FJ45,HJ47..PIC198008-198604

77100TANK ASSY, FUEL

main77001-60055iBJ4#,FJ4#,HJ47198210-198604

sub77001-60140

main77100-60045iBJ4#,FJ4#,HJ47198008-198210

77100APLUG(FOR FUEL TANK)

main90341-20003iBJ4#,FJ4#,HJ47198210-198604

sub90341-20004

main90341-24036iBJ40..RHD..(TPC,VKC);FJ40..LHD..(TPC,VLS)..GEN198210-198510

VENEZUELA SPEC,INDONESIA SPEC

main90341-24036iBJ4#,FJ4#,HJ47198008-198210

77100BGASKET(FOR FUEL TANK)

main90430-20006iBJ4#,FJ4#,HJ47198210-198604

main90430-24047iBJ40..RHD..(TPC,VKC);FJ40..LHD..(TPC,VLS)..GEN198210-198510

VENEZUELA SPEC,INDONESIA SPEC

main90430-24047iBJ4#,FJ4#,HJ47198008-198210

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22016iBJ4#,FJ4#,HJ47..TP,V198008-198510

L=220

sub90445-22024

main90445-22913iBJ45,FJ45,HJ47..PIC198008-198604

L=300

sub90445-22024

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60052iBJ4#,FJ4#,HJ47..TP,V198008-198510

main77201-60062iBJ4#,FJ4#,HJ47..TP,V198008-198510

W/FUEL STRAINER

main77201-60072iBJ45,FJ45,HJ47..PIC198008-198604

main77201-60082iBJ45,FJ45,HJ47..PIC198008-198604

W/FUEL STRAINER

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-60020iFJ4#198008-198210

sub77240-60050

main77203-60020iFJ40..LHD..(TPC,VLS)..GEN198210-198510

VENEZUELA SPEC

sub77240-60050

main77203-60030iBJ4#,HJ47198008-198210

sub77240-60040

main77240-60040iBJ4#,HJ47198210-198506

main77240-60050iFJ4#198210-198604

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBJ4#,FJ4#,HJ47198210-198604

main83361-20030iFJ40..LHD..(TPC,VLS)..GEN198210-198510

VENEZUELA SPEC

main83361-20030iBJ4#,FJ4#,HJ47198008-198210

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-60020iBJ4#,FJ4#,HJ47..TP,V198008-198210

sub77209-60021

main77209-60021iBJ4#,FJ4#,HJ47..TP,V198210-198510

main77209-60030iBJ45,FJ45,HJ47..PIC198008-198604

77213HOSE, FUEL TANK SUB INLET

main77217-60015iBJ45,FJ45,HJ47..TP,V198210-198510

VENEZUELA SPEC

main77217-60015iBJ4#,FJ4#,HJ47..TP,V198008-198210

main77217-60022iBJ45,FJ45,HJ47..PIC198008-198604

main77217-60030iBJ40,42,43,46,FJ40,43198210-198510

77251SHIELD, FUEL TANK, INLET, NO.1

main77293-60030iBJ4#,FJ4#,HJ47198008-198604

77308COVER SUB-ASSY, FUEL INLET BOX

main61802-90302iBJ4#,FJ4#,HJ47..TP,V198008-198510

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-03078iBJ4#,FJ4#,HJ47..TP,V198008-198510

77358RETAINER, FUEL INLET CUSHION

main61824-90302iBJ4#,FJ4#,HJ47..TP,V198008-198510

77519SPACER, FUEL TANK BRACKET

main77519-60010iBJ4#,FJ4#,HJ47198008-198604

T=1.0

main77519-60020iBJ4#,FJ4#,HJ47198008-198604

T=4.5

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60010iBJ45,FJ45,HJ47..PIC198008-198210

sub77606-60020

main77606-60011iBJ45,FJ45,HJ47198210-198604

sub77606-60021

main77606-60011iFJ40..LHD..(TPC,VLS)..GEN198210-198510

VENEZUELA SPEC

sub77606-60021

main77606-60020iBJ4#,FJ4#,HJ47..(TP,V)..(3F,4F)198008-198210

main77606-60021iFJ45,HJ47..RHD..GEN..IV198303-198506

SOUTH AFRICA SPEC

main77606-60021iBJ40,42,43,46,FJ40,43198210-198510

77611BAND, FUEL TANK

main77601-60041iBJ4#,FJ4#,HJ47..TP,V198008-198510

RH

main77601-60051iBJ45,FJ45,HJ47..PIC198008-198604

RH

main77602-60021iBJ4#,FJ4#,HJ47..TP,V198008-198510

LH

main77602-60031iBJ45,FJ45,HJ47..PIC198008-198604

LH

77631BRACKET, FUEL TANK, NO.1

main77614-60030iBJ4#,FJ4#,HJ47198008-198604

77632BRACKET, FUEL TANK, NO.2

main77615-60020iBJ4#,FJ4#,HJ47198008-198604

77652CUSHION, FUEL TANK, NO.1

main77651-60020iBJ4#,FJ4#,HJ47198008-198604

750X100

main77652-60011iBJ4#,FJ4#,HJ47198008-198604

230X80

sub77653-60010

main77653-60010iBJ4#,FJ4#,HJ47198008-198604

350X80

main77654-60010iBJ4#,FJ4#,HJ47198008-198604

100X100

sub77653-60010

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iBJ4#,FJ4#,HJ47198008-198604

9011910153

main90119-10153

9011910155

main90119-10155

9024010011

main90240-10011

9046062033

main90460-62033

9046112138

main90461-12138

9046720134

main90467-20134

9161140612

main91611-40612

9161160820

main91611-60820

9161161020

main91611-61020

9166540616

main91665-40616

9166540620

main91665-40620

9331515012

main93315-15012

9331616016

main93316-16016

9331914010

main93319-14010

9538102520

main95381-02520

9613230600

main96132-30600

42 parts on this diagram · 5 diagrams in section
