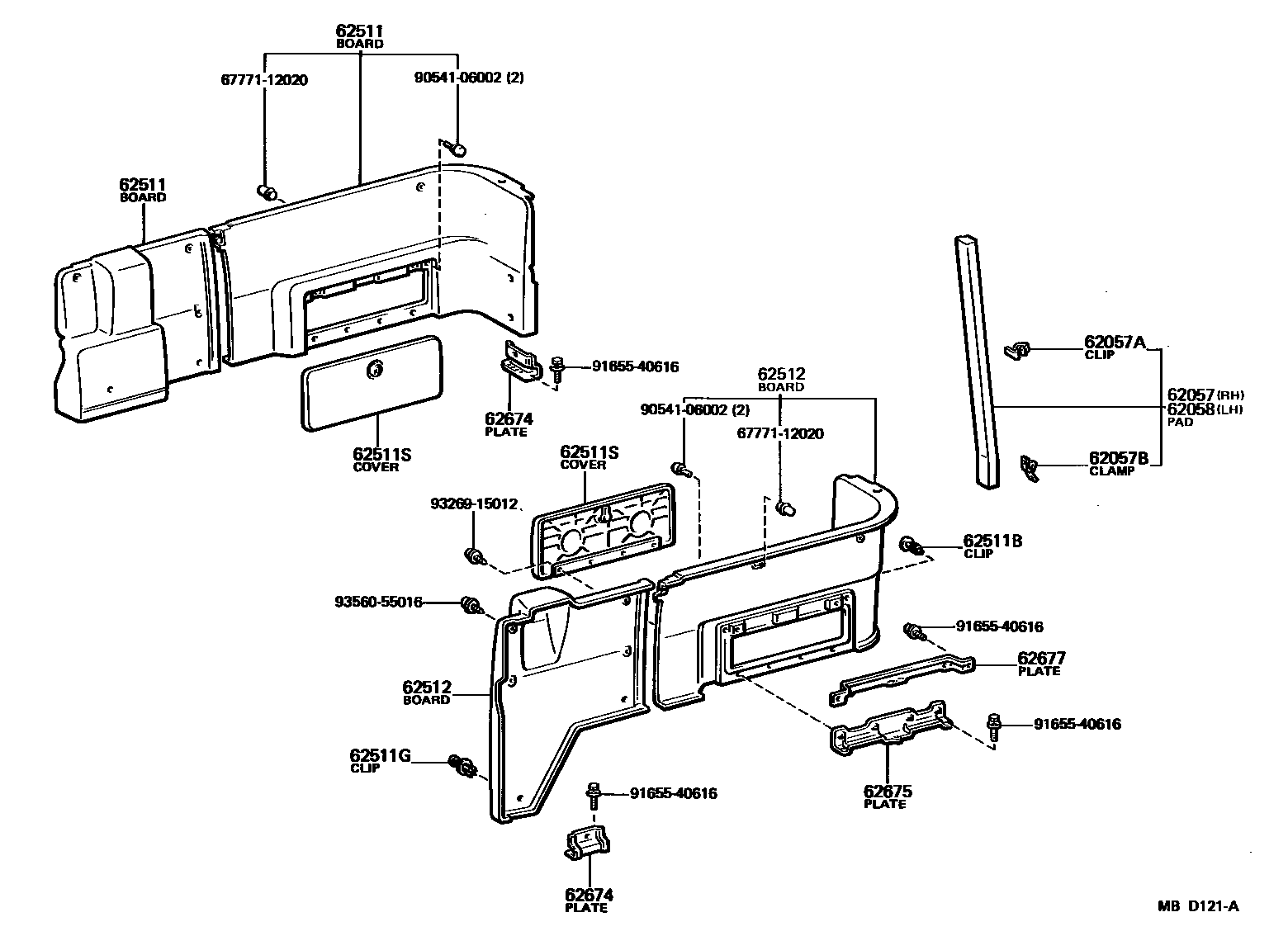

Toyota LAND CRUISER — INSIDE TRIM BOARD
62057ACLIP(FOR QUARTER PILLER PAD)
62057BCLAMP(FOR QUARTER PILLER PAD)
62058PAD, QUARTER PILLER, LH
62511BOARD, QUARTER INSIDE TRIM, RH
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
62511SCOVER, QUARTER TRIM JACK
62512BOARD, QUARTER INSIDE TRIM, LH
62674PLATE, QUARTER TRIM SET, NO.1
62675PLATE, QUARTER TRIM SET, NO.2
62677PLATE, QUARTER TRIM SET, NO.3
6777112020WEATHERSTRIP, BACK DOOR TRIM, RH
9054106002
9165540616
9326915012
9356055016
17 parts on this diagram · 1 diagram in section
INSIDE TRIM BOARD for Toyota LAND CRUISER
This section contains 17 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota LAND CRUISER. Key components include: PAD, QUARTER PILLER, RH, CLIP(FOR QUARTER PILLER PAD), CLAMP(FOR QUARTER PILLER PAD), PAD, QUARTER PILLER, LH, BOARD, QUARTER INSIDE TRIM, RH.
