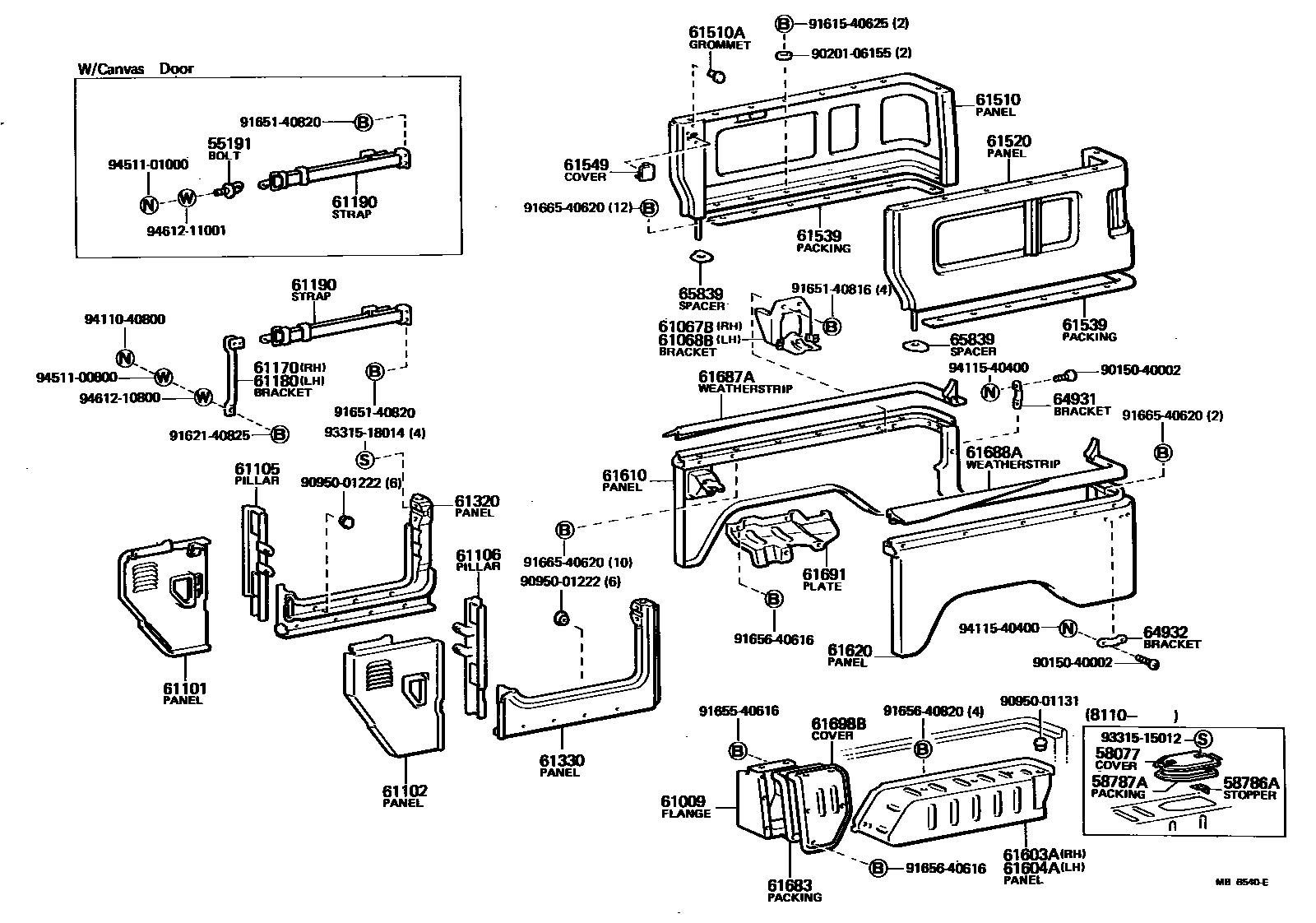

SIDE MEMBER

0001 1 0002 1 0003 1

55191BOLT, SAFETY STRAP RING

main55191-90300×2iBJ40,42,43,46,FJ40,43..TP..GEN198008-198309

CANVAS DOOR

58077COVER SUB-ASSY, JACK BOX HOLE

main58077-90800iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM,W/O *FFRS

58786ASTOPPER, JACK BOX HOLE COVER

main58786-90800iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM,W/O *FFRS

58787APACKING, JACK BOX HOLE COVER

main58787-90800iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM,W/O *FFRS

61009FLANGE SUB-ASSY,REAR SIDE SERVICE HOLE COVER SET

main61009-90300iBJ4#,FJ4#,HJ47..TP,V198008-198510

main61709-90800iBJ40,42,FJ40..VKC198110-198410

W/TRIM,W/O ROLL BAR

61067BBRACKET SUB-ASSY, SEAT BELT RETRACTOR, REAR RH

main61067-90800iBJ42,FJ40..VKC..(ARL,EUR)198201-198410

W/*FFRS

61068BBRACKET SUB-ASSY, SEAT BELT RETRACTOR, REAR LH

main61068-90800iBJ42,FJ40..VKC..(ARL,EUR)198201-198410

W/*FFRS

61101PANEL SUB-ASSY, COWL SIDE, RH

main55007-90301iBJ4#,FJ4#,HJ47..RHD198008-198110

main55007-90800iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198110-198506

W/O ANTENA

main55007-90804iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198205-198506

W/ANTENA

main55007-90807iBJ40,42,43,46,FJ40,43..RHD..TPC198205-198301

CANVAS DOOR

main55007-90809iBJ40,42,43,FJ40,43..RHD..TPC198301-198309

CANVAS DOOR

main55706-90162iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198301-198604

W/HEATER,W/O ANTENA

main55706-90305iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198008-198301

W/HEATER,W/O ANTENA

main55706-90308iBJ4#,FJ4#,HJ47..LHD..GEN198008-198604

W/O HEATER,ANTENA

main55706-90309iBJ4#,FJ4#,HJ47..LHD..(3F,4F)..GEN198008-198205

W/O HEATER,W/ANTENA

main55706-90310iBJ4#,FJ4#,HJ47..LHD..(3F,4F)198008-198205

W/HEATER,ANTENA

61102PANEL SUB-ASSY, COWL SIDE, LH

main55707-90161iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198301-198604

W/ANTENA

main55707-90311iBJ4#,FJ4#,HJ47..LHD..(3F,4F); BJ4#,FJ4#..RHD..GEN198008-198205

W/O HEATER,ANTENA

main55707-90313iHJ47..RHD..GEN198110-198205

W/HEATER,W/O ANTENA

main55707-90314iBJ4#,FJ4#..RHD198008-198110

W/HEATER,W/O ANTENA

main55707-90317iHJ47..RHD..GEN198008-198205

W/O HEATER,ANTENA

main55707-90320iBJ4#,FJ4#..RHD198008-198110

W/HEATER,ANTENA

main55707-90321iHJ47..RHD..GEN198110-198205

W/HEATER,ANTENA

main55707-90322iHJ47..RHD..GEN198008-198205

W/O HEATER,W/ANTENA

main55707-90323iBJ4#,FJ4#..RHD..GEN198008-198205

W/O HEATER,W/ANTENA

main55707-90804iBJ42,FJ40,45,HJ47..ARL198110-198205

W/O ANTENA,SPEAKER

main55707-90807iBJ4#,FJ4#,HJ47..RHD198110-198205

W/HEATER,ANTENA,SPEAKER

main55707-90808iBJ4#,FJ4#,HJ47..RHD..GEN198110-198205

W/O HEATER,W/ANTENA,SPEAKER

main55707-90810iBJ40,42,43,46,FJ40,43..LHD..TP..GEN198205-198301

CANVAS DOOR

main55707-90812iFJ40..LHD..(3F,4F);FJ40..LHD..VKC..5F;BJ4#,FJ43,45,HJ47..LHD198205-198301

W/ANTENA

main55707-90816iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198205-198506

W/HEATER

main55707-90817iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198205-198506

W/O HEATER

main55707-90820iBJ40,43,FJ40,43..LHD..TPC..4F198309-198510

CANVAS DOOR

61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH

main61106-90307iBJ40,42,43,46,FJ40,43..RHD..TPC198008-198309

CANVAS DOOR

main61106-90308iBJ40,42,43,46,FJ40,43..LHD..TP..GEN198008-198309

CANVAS DOOR

main61106-90309iBJ4#,FJ4#,HJ47..RHD..GEN198110-198506

STEEL DOOR

main61106-90310iBJ4#,FJ4#,HJ47..LHD..GEN198110-198604

STEEL DOOR

main61106-90311iFJ40,45..LHD..(PIC,V)..GEN198008-198604

STEEL DOOR,W/COOLER

main61106-90319iFJ40,43..LHD..TPC..4F198309-198510

CANVAS DOOR,W/COOLER

main61106-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

main61106-90801iBJ42,45,46,FJ40,45..EUR198110-198410

61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH

main61107-90314iBJ40,42,43,FJ43..RHD..TPC198309-198410

CANVAS DOOR

main61107-90315iBJ40,42,43,46,FJ40,43..LHD..TP..GEN198008-198309

CANVAS DOOR

main61107-90316iBJ4#,FJ4#,HJ47..RHD..GEN198110-198506

STEEL DOOR

main61107-90317iBJ4#,FJ4#,HJ47..LHD..(3F,4F)198008-198110

STEEL DOOR

main61107-90318iFJ40,45..RHD..(PIC,V)..GEN198008-198506

STEEL DOOR,W/COOLER

main61107-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

main61107-90801iBJ42,45,46,FJ40,45..EUR198110-198410

61170BRACKET ASSY, SAFETY STRAP, RH

main61193-90300iBJ4#,FJ4#,HJ47198008-198604

STEEL DOOR

61180BRACKET ASSY, SAFETY STRAP, LH

main61193-90300iBJ4#,FJ4#,HJ47198008-198604

STEEL DOOR

61190STRAP ASSY, SAFETY

main61190-90300×2iBJ4#,FJ4#,HJ47198008-198604

61320PANEL, REAR BODY FRONT SIDE, RH

main61310-90306iFJ45..(TPS,VKC)..ARL198008-198310

main61310-90307iBJ45,FJ45,HJ47..(TP,V)..GEN198008-198310

main61310-90309iBJ45,FJ45,HJ47..(TP,V)..(EUR,GEN)198008-198310

*GIS

main61310-90310iBJ40,42,43,46,FJ40,43198310-198510

main61310-90311iBJ40,42,43,46,FJ40,43..GEN198008-198310

main61310-90312iBJ40,42,43,46,FJ40,43..EUR,GEN198008-198310

*GIS

main64011-90310iBJ45,FJ45,HJ47..PIC..GEN198008-198310

main64011-90311iFJ45..PIC..ARL; FJ45..RHD..GEN..IV198008-198310

*ELR,W/BENCH SEAT

main64011-90312iBJ45,FJ45,HJ47..RHD..PIC..GEN; FJ45..(ARL,EUR)..IV;FJ45..PIC..EUR..CBU;BJ45,HJ47..PIC..(ARL,EUR)198008-198310

*GIS,*ELR

main64011-90315iBJ45,FJ45,HJ47..PIC..GEN198008-198310

*GIS

main64011-90316iBJ45,FJ45,HJ47..RHD..PIC..GEN198008-198310

*ELR

61330PANEL, REAR BODY FRONT SIDE, LH

main61320-90306iBJ45,FJ45,HJ47..(TP,V)..GEN198008-198310

main61320-90307iBJ45,FJ45,HJ47..TP,V198310-198510

main61320-90308iBJ40,42,43,46,FJ40,43..GEN198008-198310

main61320-90309iBJ40,42,43,46,FJ40,43198310-198510

main64012-90310iBJ45,FJ45,HJ47..PIC..GEN198008-198310

main64012-90312iBJ45,FJ45,HJ47..PIC..(ARL,EUR); BJ45,FJ45,HJ47..RHD..PIC..GEN; FJ45..RHD..GEN..IV198008-198310

*ELR,W/BENCH SEAT; *GIS,*ELR

main64012-90315iBJ45,FJ45,HJ47..PIC..GEN198008-198310

*GIS

main64012-90316iBJ45,FJ45,HJ47..RHD..PIC..GEN198008-198310

*ELR

61510PANEL ASSY, REAR UPPER SIDE, RH

main61501-90310iBJ40,42,FJ40..RHD..VLS..GEN198008-198206

W/O *ELR

main61501-90311iBJ40,42,FJ40..VLS198206-198309

W/*ELR,W/O *RB

main61501-90312iBJ40,42,FJ40..VKC..GEN198206-198309

W/*SIWS,W/O *ELR,*FFRS,TRIM

main61501-90313iBJ42,FJ40..VKC..(ARL,EUR)198206-198410

W/O *FFRS,TRIM

main61501-90314iBJ40,42,FJ40..LHD..VLS..GEN198008-198206

W/O *ELR

main61501-90315iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198008-198206

W/*SIWS,W/O *ELR,*FFRS,TRIM

main61501-90316iBJ40,42,FJ40..LHD..VKC..(3F,4F)198008-198206

W/*ELR,*SIWS,W/O FFRS,TRIM,*RB

main61501-90317iBJ40,42,FJ40..LHD..VLS198008-198206

W/*ELR,W/O *RB

main61501-90319iBJ45,FJ45,HJ47..RHD..VKC..GEN198008-198206

W/*SWS,W/O *ELR

main61501-90320iBJ45,FJ45,HJ47..VKC198309-198510

W/*SWS

main61501-90321iBJ45,FJ45,HJ47..RHD..VKC..GEN198008-198206

W/*SIWS,W/O *ELR

main61501-90322iBJ45,FJ45,HJ47..VKC198309-198510

W/*SIWS

main61501-90323iBJ45,FJ45,HJ47..LHD..VKC..GEN198008-198206

W/*SWS,W/O *ELR

main61501-90324iBJ45,FJ45,HJ47..LHD..VKC198008-198206

W/*ELR,*SWS

main61501-90325iBJ45,FJ45,HJ47..LHD..VKC..GEN198008-198206

W/*SIWS,W/O *ELR

main61501-90326iBJ45,FJ45,HJ47..LHD..VKC198008-198206

W/*ELR,*SIWS

main61501-90804iBJ42,FJ40..VKC..ARL198110-198206

W/TRIM,W/O *FFRS

main61501-90805iBJ42,FJ40..VKC..EUR198110-198206

W/TRIM,W/O *FFRS

main61501-90806iBJ40,42,FJ40..VKC..GEN198206-198309

W/*FFRS,*SWS,TRIM,W/O *ELR,*RB

main61501-90807iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*FFRS,*SWS,TRIM,W/O *ELR,*RB

main61501-90808iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*FFRS,*SWS,W/O *ELR,TRIM,*RB

main61501-90809iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*FFRS,*SWS,W/O *ELR,TRIM,*RB

main61501-90811iBJ42,FJ40..VKC..(ARL,EUR)198206-198410

W/*FFRS,TRIM

main61501-90812iBJ42,FJ40..VKC..EUR198201-198206

W/*FFRS,TRIM

main61501-90813iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*FFRS,*SWS,*ELR,TRIM,W/O *RB

main61501-90814iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*FFRS,*SWS,*ELR,TRIM,W/O *RB

main61501-90815iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*FFRS,*SWS,*ELR,W/O TRIM,*RB

main61501-90816iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*FFRS,*SWS,*ELR,W/O TRIM,*RB

main61501-90817iBJ40,42,FJ40..VKC..GEN198206-198309

W/*SWS,W/O *ELR,*FFRS,TRIM,*RB

main61501-90818iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*SWS,W/O *ELR,*FFRS,TRIM,*RB

main61501-90819iBJ40,42,FJ40..VKC..GEN198206-198309

W/*FFRS,*SIWS,W/O*ELR,TRIM,*RB

main61501-90820iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198201-198206

W/*FFRS,*SIWS,W/O*ELR,TRIM,*RB

main61501-90821iBJ40,42,FJ40..VKC..GEN198309-198410

W/*FFRS,*SIWS,W/O TRIM,*RB

main61501-90822iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198201-198206

W/*FFRS,*SIWS,*ELR,W/OTRIM,*RB

main61501-90823iBJ40,42,FJ40..VKC..GEN198206-198309

W/*FFRS,*SIWS,TRIM,W/O*ELR,*RB

main61501-90824iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198201-198206

W/*FFRS,*SIWS,TRIM,W/O*ELR,*RB

main61501-90825iBJ40,42,FJ40..RHD..VKC..GEN198201-198206

W/*FFRS,*SIWS,*ELR,TRIM,W/O*RB

main61501-90826iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198201-198206

W/*FFRS,*SIWS,*ELR,TRIM,W/O*RB

main61501-90827iBJ40,42,FJ40..VKC..GEN198206-198309

W/*ELR,*SWS,W/O *FFRS,TRIM,*RB

main61501-90828iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*ELR,*SWS,W/O *FFRS,TRIM,*RB

61510AGROMMET, SAFETY BELT ANCHORAGE NUT

main58276-90300×2iBJ40,42,FJ40..V..GEN198008-198510

main90950-01133×2iBJ45,FJ45,HJ47..VKC198008-198510

61520PANEL ASSY, REAR UPPER SIDE,LH

main61502-90311iBJ40,42,FJ40..RHD..VLS..GEN198008-198206

W/O *ELR

main61502-90312iBJ40,42,FJ40..RHD..VLS198008-198206

W/*ELR,W/O *RB

main61502-90313iBJ40,42,FJ40..RHD..VKC..GEN198008-198206

W/O *FFRS,*ELR,TRIM

main61502-90314iBJ40,42,FJ40..RHD..VKC198008-198206

W/*ELR,W/O *FFRS,TRIM,*RB

main61502-90315iBJ40,42,FJ40..LHD..VLS..GEN198008-198206

W/O *ELR

main61502-90316iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198008-198206

W/O *FFRS,*ELR,TRIM

main61502-90317iBJ40,42,FJ40..VKC..GEN198206-198309

W/*ELR,W/O *FFRS,TRIM,*RB

main61502-90318iBJ40,42,FJ40..VLS198206-198309

W/*ELR,W/O *RB

main61502-90320iBJ45,FJ45,HJ47..RHD..VKC..GEN198008-198206

W/*SWS,W/O *ELR

main61502-90321iBJ45,FJ45,HJ47..RHD..VKC198008-198206

W/*ELR,*SWS

main61502-90322iBJ45,FJ45,HJ47..RHD..VKC..GEN198008-198206

W/*SIWS,W/O *ELR

main61502-90323iBJ45,FJ45,HJ47..RHD..VKC198008-198206

W/*ELR,*SIWS

main61502-90324iBJ45,FJ45,HJ47..LHD..VKC..GEN198008-198206

W/*SWS,W/O *ELR

main61502-90325iBJ45,FJ45,HJ47..VKC198206-198309

W/*ELR,*SWS

main61502-90326iBJ45,FJ45,HJ47..VKC..GEN198206-198309

W/*SIWS,W/O *ELR

main61502-90327iBJ45,FJ45,HJ47..VKC198309-198510

W/*SIWS

main61502-90804iBJ42,FJ40..VKC..ARL198110-198206

W/TRIM,W/O *FFRS

main61502-90805iBJ42,FJ40..VKC..(ARL,EUR)198206-198410

W/TRIM,W/O *FFRS

main61502-90806iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*FFRS,*SWS,TRIM,W/O *ELR,*RB

main61502-90807iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*FFRS,*SWS,TRIM,W/O *ELR,*RB

main61502-90808iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*FFRS,*SWS,W/O *ELR,TRIM,*RB

main61502-90809iBJ40,42,FJ40..VKC..GEN198206-198309

W/*FFRS,*SWS,W/O *ELR,TRIM,*RB

main61502-90811iBJ42,FJ40..VKC..ARL198201-198206

W/*FFRS,TRIM

main61502-90812iBJ40,42,FJ40..VKC..GEN198309-198410

W/*FFRS,*SWS,TRIM,W/O *RB

main61502-90813iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*FFRS,*SWS,*ELR,TRIM,W/O *RB

main61502-90814iBJ40,42,FJ40..VKC..GEN198206-198309

W/*FFRS,*SWS,*ELR,TRIM,W/O *RB

main61502-90815iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*FFRS,*SWS,*ELR,W/O TRIM,*RB

main61502-90816iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198110-198206

W/*FFRS,*SWS,*ELR,W/O TRIM,*RB

main61502-90817iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*SWS,W/O *ELR,*FFRS,TRIM,*RB

main61502-90818iBJ40,42,FJ40..VKC..GEN198206-198309

W/*SWS,W/O *ELR,*FFRS,TRIM,*RB

main61502-90819iBJ40,42,FJ40..RHD..VKC..GEN198201-198206

W/*FFRS,*SIWS,W/O*ELR,TRIM,*RB

main61502-90820iBJ40,42,FJ40..VKC..GEN198206-198309

W/*FFRS,*SIWS,W/O*ELR,TRIM,*RB

main61502-90821iBJ40,42,FJ40..RHD..VKC..GEN198201-198206

W/*FFRS,*SIWS,*ELR,W/OTRIM,*RB

main61502-90822iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198201-198206

W/*FFRS,*SIWS,*ELR,W/OTRIM,*RB

main61502-90823iBJ40,42,FJ40..RHD..VKC..GEN198201-198206

W/*FFRS,*SIWS,TRIM,W/O*ELR,*RB

main61502-90824iBJ40,42,FJ40..VKC..GEN198206-198309

W/*FFRS,*SIWS,TRIM,W/O*ELR,*RB

main61502-90825iBJ40,42,FJ40..RHD..VKC..GEN198201-198206

W/*FFRS,*SIWS,*ELR,TRIM,W/O*RB

main61502-90826iBJ40,42,FJ40..LHD..VKC..(3F,4F)..GEN198201-198206

W/*FFRS,*SIWS,*ELR,TRIM,W/O*RB

main61502-90827iBJ40,42,FJ40..RHD..VKC..GEN198110-198206

W/*ELR,*SWS,W/O *FFRS,TRIM,*RB

main61502-90828iBJ40,42,FJ40..VKC..GEN198309-198410

W/*SWS,W/O *FFRS,TRIM,*RB

61539PACKING, REAR UPPER SIDE PANEL SET

main61534-60011×2iBJ40,42,FJ40..V198008-198510

main61534-90300×2iBJ45,FJ45,HJ47..VKC198008-198510

61549COVER, ROOM SIDE LAMP HOLE

main61549-90800iBJ40,42,45,FJ40,45,HJ47..V198206-198510

61603AAPRON, REAR FENDER, RH

main61603-90070iBJ43,46,FJ43198008-198410

W/O ROLL BAR

main61603-90071iFJ45..TP198008-198410

W/O ROLL BAR

main61603-90072iFJ45..RB198008-198210

main61603-90073iBJ45,FJ45,HJ47..VKC198008-198510

main61603-90074iBJ42,FJ40..VKC..EUR198008-198410

W/O RR SEAT

main61603-90075iBJ42,FJ40..VLS..EUR198008-198410

W/O RR SEAT

main61603-90076iBJ45,FJ45..VKC..EUR198008-198410

W/O RR SEAT

main61603-90343iBJ40,42,FJ40..VKC198008-198410

W/O ROLL BAR

main61603-90344iBJ40,42,FJ40..VKC..GEN198403-198410

W/ROLL BAR

main61603-90347iBJ40,42,FJ40..TPC,TPS,VLS198008-198510

W/O ROLL BAR

main61603-90348iBJ40,42,FJ40..VLS..GEN198403-198510

W/ROLL BAR

main61603-90349iBJ43,46,FJ43..RB198008-198410

main61603-90802iBJ40,42,FJ40..VKC..GEN198110-198410

W/*FFRS,W/O ROLL BAR

main61603-90804iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM,W/O *FFRS

main61603-90809iFJ40..VKC..(ARL,EUR)198201-198410

W/TRIM,*FFRS

main61603-90813iBJ46..RB198305-198410

W/O RR SEAT

61604AAPRON, REAR FENDER, LH

main61604-90070iBJ43,46,FJ43198008-198410

W/O ROLL BAR

main61604-90071iFJ45..TP198008-198410

W/O ROLL BAR

main61604-90072iFJ45..RB198008-198210

main61604-90073iBJ45,FJ45,HJ47..VKC198008-198510

main61604-90074iBJ42,FJ40..VKC..EUR198008-198410

W/O RR SEAT

main61604-90075iBJ42,FJ40..VLS..EUR198008-198410

W/O RR SEAT

main61604-90076iBJ45,FJ45..VKC..EUR198008-198410

W/O RR SEAT

main61604-90343iBJ40,42,FJ40..VKC198008-198410

W/O ROLL BAR

main61604-90344iBJ40,42,FJ40..VKC..GEN198403-198410

W/ROLL BAR

main61604-90347iBJ40,42,FJ40..TPC,TPS,VLS198008-198510

W/O ROLL BAR

main61604-90348iBJ40,42,FJ40..(TPC,TPS,VLS)..RB198008-198410

main61604-90349iBJ43,46,FJ43..RB198008-198410

main61604-90802iBJ40,42,FJ40..VKC..GEN198110-198410

W/*FFRS,W/O ROLL BAR

main61604-90804iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM,W/O *FFRS

main61604-90808iBJ42,FJ40..VKC..(ARL,EUR)198201-198410

W/TRIM,*FFRS

main61604-90812iBJ46..RB198305-198410

W/O RR SEAT

61610PANEL ASSY, REAR BODY SIDE, RH

main61601-90470iBJ43,46,FJ43..GEN198008-198410

W/SAND TIRE

main61601-90471iFJ45..LHD..TPS198008-198410

POSITION OF LICENSE PLATE LH

main61601-90472iFJ45..LHD..TPC198008-198410

POSITION OF LICENSE PLATE LH

main61601-90473iBJ42,FJ40..VLS..EUR198008-198410

W/O RR SEAT

main61601-90474iBJ40,42,FJ40..VKC..(3F,4F)..GEN198110-198201

W/TRIM,*FFRS,W/O *RB

main61601-90475iBJ40,42,FJ40..VKC..GEN198110-198410

W/TRIM,*FFRS & SANDTIRE,W/O*RB

main61601-90476iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM,W/O *FFRS

main61601-90486iBJ40,42,FJ40..VKC..GEN198110-198410

W/*FFRS,W/O TRIM,*RB

main61601-90487iBJ40,42,FJ40..VKC..GEN198110-198410

W/*FFRS,SAND TIRE,W/O TRIM,*RB

main61601-90489iBJ46..RB198305-198410

W/O RR SEAT

main61601-90843iBJ45,FJ45,HJ47..VKC..(ARL,GEN)198008-198510

main61601-90844iBJ45,FJ45,HJ47..LHD..VKC198008-198510

POSITION OF LICENSE PLATE LH

main61601-90850iBJ40,42,FJ40..VKC198008-198410

main61601-90857iBJ40,42,FJ40..VLS..(ARL,GEN)198008-198510

main61601-90862iBJ40,42,FJ40..VLS..GEN198008-198510

W/SAND TIRE

main61601-90863iBJ40,42,FJ40..VKC..GEN198008-198410

W/SAND TIRE

main61601-90868iBJ42,FJ40..VKC..EUR198008-198410

W/O RR SEAT

main61601-90870iBJ45,FJ45..VKC..EUR198008-198410

W/O RR SEAT

main61601-90877iBJ43,46,FJ43..GEN198008-198410

main61601-90878iBJ40,42,FJ40..TPC..GEN198008-198510

main61601-90879iFJ40..TPS198008-198410

main61601-90880iFJ40..TPS..GEN198008-198410

POSITION OF LICENSE PLATE LH

main61601-90881iBJ40,42..LHD..TPC;FJ40..LHD..TPC..(3F,4F)198008-198510

POSITION OF LICENSE PLATE LH

main61601-90882iBJ46..TPS198008-198410

main61601-90883iBJ43,46,FJ43..LHD..TPC198008-198410

POSITION OF LICENSE PLATE LH

main61601-90884iBJ40,42,FJ40..LHD..VLS198008-198510

POSITION OF LICENSE PLATE LH

main61601-90885iFJ45..TPS198008-198410

main61601-90886iFJ45..TPC198008-198410

main61601-90887iFJ40..TPS..GEN198008-198410

W/SAND TIRE

main61601-90888iBJ40,42,FJ40..TPC..GEN198008-198510

W/SAND TIRE

61620PANEL ASSY, REAR BODY SIDE, LH

main61602-90639iBJ40,42,FJ40..LHD..VLS198008-198510

POSITION OF LICENSE PLATE LH

main61602-90809iBJ45,FJ45,HJ47..VKC..(ARL,GEN)198008-198510

main61602-90811iBJ45,FJ45,HJ47..LHD..VKC198008-198510

POSITION OF LICENSE PLATE LH

main61602-90813iBJ42,FJ40..VLS..EUR198008-198410

W/O RR SEAT

main61602-90814iBJ45,FJ45..VKC..EUR198008-198410

W/O RR SEAT

main61602-90822iBJ43,46,FJ43..GEN198008-198410

main61602-90823iBJ40,42,FJ40..TPC..GEN198008-198510

main61602-90824iBJ40,42,FJ40..VKC198008-198410

main61602-90825iFJ40..TPS198008-198410

main61602-90826iFJ40..TPS..GEN198008-198410

POSITION OF LICENSE PLATE LH

main61602-90827iFJ40..RHD..TPC198309-198410

POSITION OF LICENSE PLATE LH

main61602-90828iBJ46..TPS198008-198410

main61602-90829iBJ43,46,FJ43..LHD..TPC198008-198410

POSITION OF LICENSE PLATE LH

main61602-90830iBJ40,42,FJ40..VLS..(ARL,GEN)198008-198510

main61602-90831iFJ45..TPS198008-198410

main61602-90832iFJ45..TPC198008-198410

main61602-90833iFJ40..TPS..GEN198008-198410

W/SAND TIRE

main61602-90834iBJ40,42,FJ40..TPC..GEN198008-198510

W/SAND TIRE

main61602-90835iBJ40,42,FJ40..VLS..GEN198008-198510

W/SAND TIRE

main61602-90836iBJ40,42,FJ40..VKC..GEN198008-198410

W/SAND TIRE

main61602-90838iBJ43,46,FJ43..GEN198008-198410

W/SAND TIRE

main61602-90839iFJ45..LHD..TPS198008-198410

POSITION OF LICENSE PLATE LH

main61602-90840iFJ45..LHD..TPC198008-198410

POSITION OF LICENSE PLATE LH

main61602-90841iFJ45..TPS198008-198410

W/AUXILIARY FUEL TANK

main61602-90842iFJ45..TPC198008-198410

W/AUXILIARY FUEL TANK

main61602-90843iBJ45,FJ45,HJ47..VKC..(ARL,GEN)198008-198510

W/AUXILIARY FUEL TANK

main61602-90844iBJ42,FJ40..VKC..EUR198008-198410

W/O RR SEAT

main61602-90849iBJ40,42,FJ40..VKC..(3F,4F)..GEN198110-198201

W/TRIM,*FFRS,W/O *RB

main61602-90850iBJ40,42,FJ40..VKC..GEN198110-198410

W/TRIM,SAND TIRE,W/O ROLL BAR

main61602-90851iBJ42,FJ40..VKC..(ARL,EUR)198110-198410

W/TRIM,W/O *RB

main61602-90861iBJ40,42,FJ40..VKC198110-198410

W/*FFRS,W/O TRIM,*RB

main61602-90862iBJ40,42,FJ40..VKC..GEN198110-198410

W/*FFRS,SAND TIRE,W/O TRIM,*RB

main61602-90864iBJ46..RB198305-198410

W/O RR SEAT

61683PACKING, REAR BODY REAR SIDE SERVICE HOLE COVER

main61683-90300iBJ4#,FJ4#,HJ47..TP,V198008-198510

61687AWEATHERSTRIP, REAR BODY REAR SIDE, RH

main61687-90306iBJ40,42,FJ40..VLS198008-198510

main61687-90307iBJ40,42,FJ40..VKC198008-198410

main61687-90308iBJ45,FJ45,HJ47..VKC198008-198510

61688AWEATHERSTRIP, REAR BODY REAR SIDE, LH

main61688-90306iBJ40,42,FJ40..VLS198008-198510

main61688-90307iBJ40,42,FJ40..VKC198008-198410

main61688-90308iBJ45,FJ45,HJ47..VKC198008-198510

61691PLATE, REAR FENDER UNDER GUARD

main61691-90300iBJ4#,FJ4#,HJ47..TP,V198008-198510

61698BCOVER, REAR BODY SIDE SERVICE HOLE

main61069-90800iBJ40,42,FJ40..VKC198110-198410

W/TRIM,W/O ROLL BAR,BROWN

main61069-90801iBJ40,42,FJ40..VKC..GEN198110-198410

W/TRIM,W/O ROLL BAR,GRAY

main61069-90802iFJ40..LHD..VKC..4F198305-198403

*SAA,DARK WINE

main61698-90300iBJ4#,FJ4#,HJ47..TP,V198008-198510

64931BRACKET, BAND, NO.1

main64921-60010×4iFJ45..TP198008-198410

64932BRACKET, BAND, NO.2

main64921-90310×2iBJ40,42,43,46,FJ4#..TP198008-198510

65839SPACER, FRONT SIDE PANEL PILLAR

main65839-90300×2iBJ40,42,45,FJ40,45,HJ47..V198008-198510

9015040002

main90150-40002

9020106155

main90201-06155

9095001131

main90950-01131

9095001222

main90950-01222

9161540625

main91615-40625

9162140825

main91621-40825

9165140816

main91651-40816

9165140820

main91651-40820

9165540616

main91655-40616

9165640616

main91656-40616

9165640820

main91656-40820

9166540620

main91665-40620

9331515012

main93315-15012

9331518014

main93315-18014

9411040800

main94110-40800

9411540400

main94115-40400

9451100800

main94511-00800

9451101000

main94511-01000

9461210800

main94612-10800

9461211001

main94612-11001

53 parts on this diagram · 3 diagrams in section
