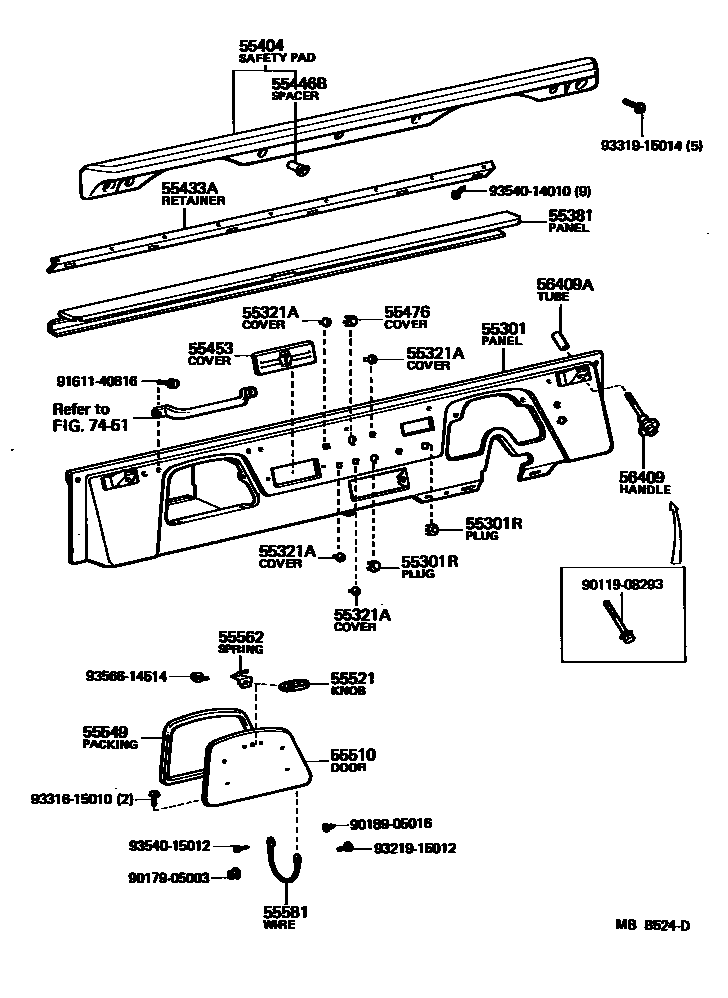

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55031-90801iBJ40,42,43,45,HJ47..RHD..GEN198210-198305

W/PAD

main55031-90803iBJ40,42,43,45,HJ47..RHD..GEN198210-198305

W/O PAD

main55031-90804iFJ40,45..ARL198305-198410

W/O PAD,TACHOMETER

main55031-90805iFJ4#..RHD..GEN198305-198506

W/PAD

main55031-90806iBJ40,42,43,45,HJ47..RHD..GEN198305-198506

W/O PAD

main55031-90809iBJ40,42,43,45,HJ47..RHD..GEN198305-198506

W/PAD

main55031-90810iBJ40,42,43,45,HJ47..LHD..GEN198305-198410

W/O PAD

main55031-90813iBJ40,42,43,45,HJ47..LHD..GEN198305-198410

W/PAD

main55031-90814iFJ43,45..LHD;FJ40..LHD..GEN;FJ40..VKC..EUR198309-198604

W/O PAD

main55031-90817iFJ4#..LHD..GEN198305-198309

W/PAD

main55031-90818iBJ42,45..(PIC,V)..EUR198309-198410

W/PAD,W/SIDE DEFROSTER

main55031-90820iFJ40,45..(PIC,V)..EUR198309-198410

W/PAD,SIDE DEFROSTER

main55031-90821iBJ42,45..(PIC,V)..EUR198309-198410

W/O PAD,W/SIDE DEFROSTER

main55031-90824iBJ42,45,46..EUR198309-198410

W/O PAD

main55031-90825iBJ42,45,46..EUR198309-198410

W/PAD

main55031-90826iFJ40,45..(PIC,V)..EUR198309-198410

W/O PAD,W/SIDE DEFROSTER

main55031-90827iHJ47..LHD..VKC;BJ45..LHD..GEN..CBU198309-198410

OMAN SPEC,W/O PAD

main55031-90830iHJ47..LHD..VKC;BJ45..LHD..GEN..CBU198309-198410

OMAN SPEC,W/PAD

main55301-90072iBJ4#,HJ47..RHD..GEN198008-198110

W/O PAD,HEATER

main55301-90074iBJ4#,HJ47..RHD198008-198110

W/O PAD,W/HEATER

main55301-90078iFJ4#..RHD..GEN198008-198110

W/PAD,W/O HEATER

main55301-90079iBJ4#,HJ47..RHD198008-198110

W/PAD,HEATER

main55301-90082iFJ4#..RHD198008-198110

W/PAD,HEATER

main55301-90274iFJ40,45..RHD..V..GEN198008-198110

W/O PAD,W/COOLER

main55301-90275iFJ40,45..RHD..V198008-198110

W/O PAD,W/COOLER,HEATER

main55301-90282iFJ40,45..RHD..V..GEN198008-198110

W/PAD,COOLER

main55301-90285iFJ40,45..RHD..V198008-198110

W/PAD,HEATER,COOLER

main55301-90343iFJ4#..RHD..GEN198008-198110

W/O PAD,HEATER

main55301-90344iFJ4#..RHD198008-198110

W/O PAD

main55301-90804iBJ4#,HJ47..LHD..GEN198110-198210

W/O PAD,RADIO

main55301-90807iBJ4#,HJ47..LHD198008-198110

W/PAD,HEATER

main55301-90808iFJ40,45..(PIC,V)..EUR198008-198210

W/O PAD,W/SIDE DEFROSTER

main55301-90816iFJ4#..LHD198008-198210

W/O PAD,RADIO

main55301-90817iFJ4#..LHD198008-198210

W/PAD,W/O RADIO

main55301-90819iFJ40,45..(PIC,V)..EUR198008-198210

W/PAD,SIDE DEFROSTER

main55301-90821iFJ4#..LHD..GEN198008-198210

W/O PAD,W/RADIO

main55301-90822iFJ4#..LHD..GEN198008-198210

W/RADIO,PAD

main55301-90824iHJ47..LHD198008-198009

W/RADIO,HEATER

main55301-90827iHJ47..LHD198008-198009

W/PAD,RADIO,HEATER

main55301-90829iBJ42,45..(PIC,V)..EUR198008-198110

W/O PAD,W/SIDE DEFROSTER

main55301-90830iBJ42,45..(PIC,V)..EUR198008-198110

W/PAD,W/SIDE DEFROSTER

main55301-90831iFJ4#..RHD..GEN; FJ40,45..ARL198110-198210

W/O PAD,TACHOMETER; W/O PAD,W/HEATER

main55301-90833iBJ4#,HJ47..RHD..GEN198110-198210

W/PAD

main55301-90835iBJ42,45,46..EUR198110-198210

W/O PAD,W/HEATER

main55301-90836iFJ4#..RHD..GEN; FJ40,45..ARL198110-198210

W/PAD,HEATER; W/PAD,W/O TACHOMETER

main55301-90837iBJ42,HJ47..ARL198110-198210

W/PAD,W/O TACHOMETER

main55301-90838iBJ4#,HJ47..RHD..GEN; BJ42,HJ47..ARL198110-198210

W/O PAD,TACHOMETER; W/O PAD,W/HEATER

main55301-90839iBJ42,45,46..EUR198110-198210

W/PAD,HEATER

main55301-90840iFJ40,45..ARL198110-198210

W/O PAD,W/TACHOMETER

main55301-90841iFJ40,45..ARL198110-198210

W/PAD,TACHOMETER

main55301-90842iBJ42,HJ47..ARL198110-198210

W/O PAD,W/TACHOMETER

main55301-90843iBJ42,HJ47..ARL198110-198210

W/PAD,TACHOMETER

main55301-90845iBJ42,45,46..EUR198110-198210

W/O PAD,HEATER

main55301-90846iBJ42,45,46..EUR198110-198210

W/PAD,W/O HEATER

main55301-90847iBJ4#,HJ47..RHD..GEN198110-198210

W/O PAD,HEATER

main55301-90850iBJ42,45..(PIC,V)..EUR198110-198210

W/PAD,W/SIDE DEFROSTER

main55301-90851iFJ4#..RHD..GEN198110-198210

W/O PAD,HEATER

main55301-90853iFJ4#..RHD..GEN198110-198210

W/PAD,W/O HEATER

main55301-90856iBJ42,45..(PIC,V)..EUR198110-198210

W/O PAD,W/SIDE DEFROSTER

main55301-90860iBJ40,42,43,45,HJ47..LHD..GEN198210-198305

W/O PAD

main55301-90863iFJ43,45..LHD;FJ40..LHD..GEN;FJ40..VKC..EUR198210-198305

W/PAD

main55301-90864iBJ40,42,43,45,HJ47..LHD..GEN198210-198305

W/PAD

main55301-90865iFJ40,45..(PIC,V)..EUR198210-198309

W/O PAD,W/SIDE DEFROSTER

main55301-90866iFJ40,45..(PIC,V)..EUR198210-198309

W/PAD,SIDE DEFROSTER

main55301-90867iBJ42,45..(PIC,V)..EUR198210-198309

W/O PAD,W/SIDE DEFROSTER

main55301-90868iBJ42,45..(PIC,V)..EUR198210-198309

W/PAD,W/SIDE DEFROSTER

main55301-90871iBJ42,45,46..EUR198210-198309

W/O PAD

main55301-90872iBJ42,45,46..EUR198210-198309

W/PAD

main55301-90877iBJ42,HJ47..ARL198210-198410

W/PAD,W/O TACHOMETER

main55301-90878iBJ42,HJ47..ARL198210-198410

W/O PAD,TACHOMETER

main55301-90879iBJ42,HJ47..ARL198210-198410

W/O PAD,W/TACHOMETER

main55301-90880iBJ42,HJ47..ARL198210-198410

W/PAD,TACHOMETER

main55301-90881iFJ40,45..EUR198305-198309

W/O PAD

main55301-90882iFJ40,45..ARL198210-198410

W/PAD,TACHOMETER

main55301-90883iFJ40,45..ARL198210-198305

W/PAD,W/O TACHOMETER

main55301-90884iFJ4#..RHD..GEN198210-198305

W/PAD

main55301-90886iFJ40,45..ARL198210-198410

W/O PAD,W/TACHOMETER

main55301-90887iFJ40,45..ARL198210-198305

W/O PAD,TACHOMETER

main55301-90888iFJ4#..RHD..GEN198210-198305

W/O PAD

55301RPLUG, HOLE(FOR INSTRUMENT PANEL)

main90950-01155iBJ4#,HJ47198008-198506

ID=25.0

main90950-01156iBJ4#,HJ47198210-198506

ID=20.0

main90950-01225iBJ4#,HJ47..LHD198110-198210

ID=23.0

main90950-01329×2iBJ4#,FJ4#,HJ47198110-198604

ID=13.5

main90950-01330×3iBJ4#,FJ4#,HJ47198110-198604

ID=11.5

55321ACOVER,INSTRUMENT PANEL HOLE

main55321-90300×6iBJ4#,FJ4#,HJ47..3F,4F198008-198110

55381PANEL, INSTRUMENT IMPACT

main55381-60010iBJ4#,FJ4#,HJ47198008-198604

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-90800iBJ42,FJ40,45,HJ47..ARL198110-198410

main55401-90801iBJ4#,FJ4#,HJ47..RHD..GEN198110-198112

main55404-90300iBJ42,45,46,FJ40,45..EUR198110-198410

main55404-90301iBJ4#,FJ4#,HJ47..LHD..(3F,4F)..GEN198110-198112

55433ARETAINER, SAFETY PAD SET PLATE

main55449-60010iBJ4#,FJ4#,HJ47198008-198604

55446BSPACER, INSTRUMENT PANEL SAFETY PAD, SET

main55446-60010×5iBJ4#,FJ4#,HJ47..3F,4F198008-198110

main55457-90800×5iBJ4#,FJ4#,HJ47198110-198604

55453COVER, RADIO TUNER OPENING

main55461-90351iBJ4#,FJ4#,HJ47..3F,4F198008-198110

main55522-90800iBJ4#,FJ4#,HJ47..RHD198110-198210

55476COVER, CIGARETTE LIGHTER HOLE

main90950-01156iBJ4#,FJ4#,HJ47198008-198604

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-90314iBJ4#,FJ4#,HJ47..RHD198008-198210

main55501-90800iBJ4#,FJ4#,HJ47..LHD198008-198210

main55501-90801iFJ40..TPC..EUR;BJ40,42,43,45,FJ4#,HJ47..RHD198210-198506

main55501-90802iFJ40..LHD..GEN;FJ40..VKC..EUR;BJ4#,FJ43,45,HJ47..LHD198210-198604

55521KNOB, GLOVE COMPARTMENT DOOR

main55521-90300iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

55549PACKING, GLOVE COMPARTMENT DOOR

main55549-90300iBJ4#,FJ4#,HJ47198008-198604

55562SPRING, GLOVE COMPARTMENT DOOR STOP

main55544-90301iFJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD198008-198506

55581WIRE, GLOVE COMPARTMENT DOOR OPEN

main55508-30020iBJ4#,FJ4#,HJ47198008-198604

56409HANDLE SUB-ASSY, WINDSHIELD CATCH

main56409-60010×2iBJ4#,FJ4#,HJ47198008-198604

56409ATUBE, WINDSHIELD CATCH HANDLE

main90440-17057×2iBJ4#,FJ4#,HJ47198008-198604

7451ARMREST & VISOR

→ Go to FIG 74-51

9011908293

main90119-08293

9017905003

main90179-05003

9018905016

main90189-05016

9161140816

main91611-40816

9321915012

main93219-15012

9331615010

main93316-15010

9331915014

main93319-15014

9354014018

main93540-14018

9354015012

main93540-15012

9356614514

main93566-14514

27 parts on this diagram · 4 diagrams in section
