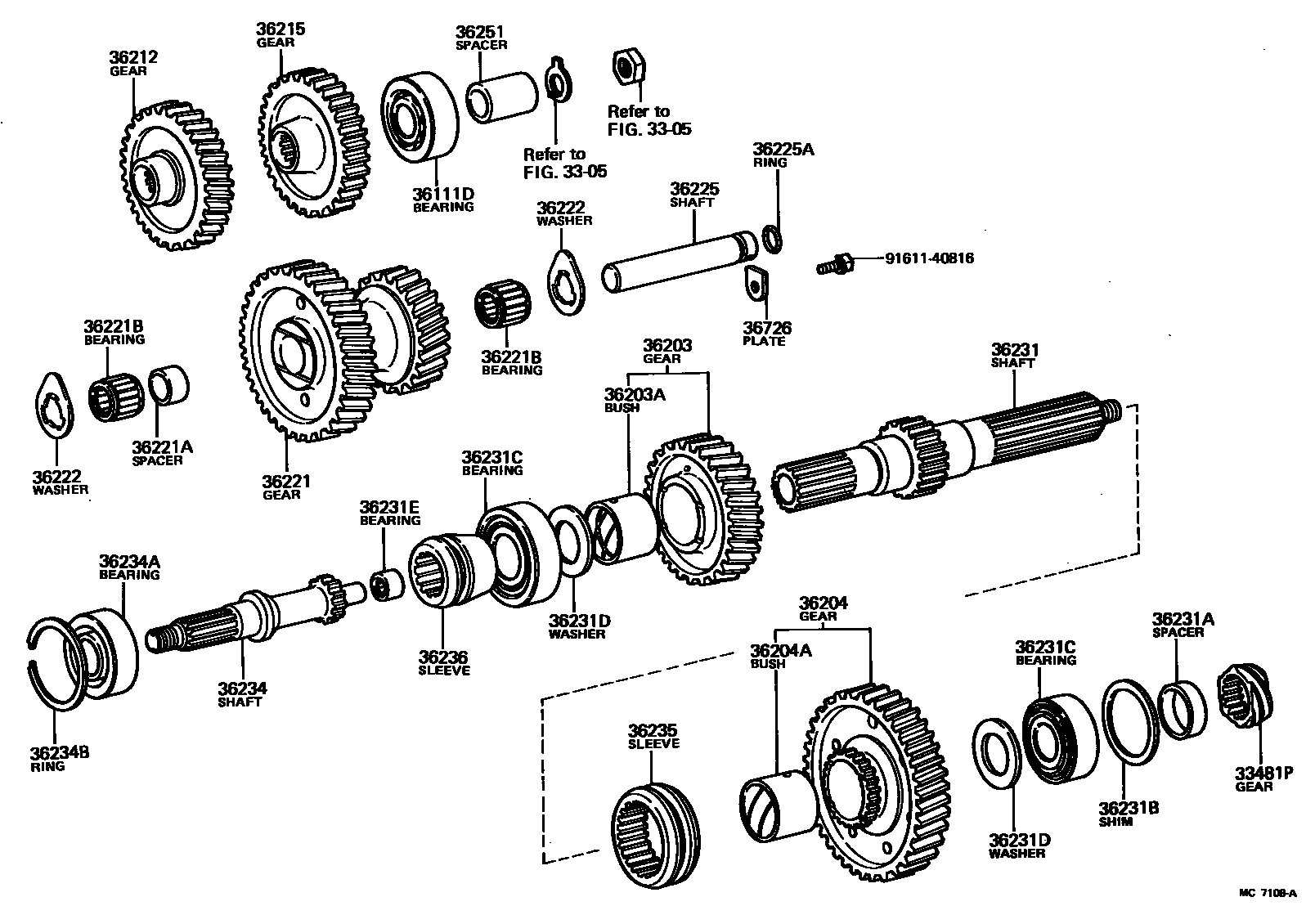

TRANSFER GEAR
3305TRANSMISSION GEAR (MTM)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6
N=7
N=6,MARK 6:15-17,N=6
N=7,MARK 7:16-17,N=7
36111DBEARING, TRANSFER REAR AND IDLER SHAFT
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36203ABUSH, SOLID (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36204GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36204ABUSH, SOLID (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36212GEAR, TRANSFER INPUT
36215GEAR, POWER TAKE-OFF DRIVE
36221GEAR, TRANSFER IDLER
36221ASPACER(FOR TRANSFER IDLER GEAR)
36221BBEARING (FOR TRANSFER IDLER GEAR)
36222WASHER, TRANSFER IDLER GEAR SIDE THRUST
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
T=17.5
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
T=0.15,T=0.15
T=0.40,T=0.40
T=0.50,T=0.50
T=0.60,T=0.60
T=0.70,T=0.70
T=0.80,T=0.80
T=0.90,T=0.90
T=1.00,T=1.00
T=1.10,T=1.10
T=1.20,T=1.20
T=1.30,T=1.30
T=1.40,T=1.40
T=1.50,T=1.50
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FR
36231DWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.6
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36251SPACER, TRANSFER INPUT SHAFT
36726PLATE, LOCK (FOR TRANSFER GEAR)
9161140816
main91611-40816
29 parts on this diagram · 2 diagrams in section
