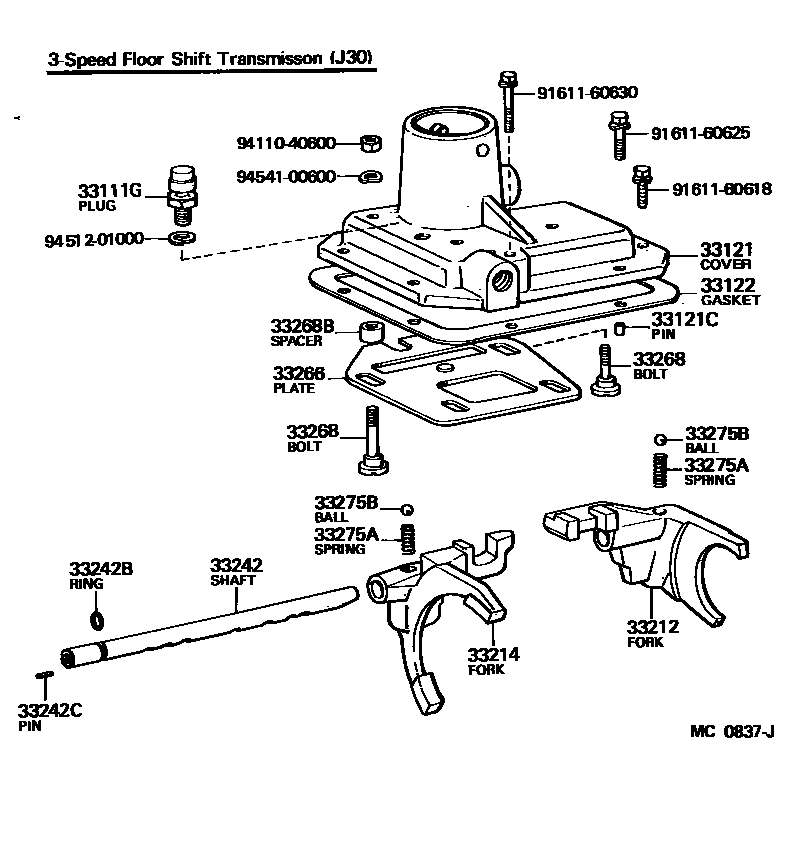

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03019iFJ4#..3F198008-198210

33121COVER, MANUAL TRANSMISSION CASE

main33102-60040iFJ4#..3F198008-198210

main33102-60090iFJ40,43..5F..(ARL,GEN)198210-198410

main33102-60100iFJ40..ARL198210-198309

NEW SOUTH WALES SPEC

main33121-60090iBJ46;BJ40,42,43,45,HJ47..4F198008-198506

main33121-60100iFJ40..ARL198401-198410

VICTORIA SPEC

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214×2iBJ4#,FJ4#,HJ47198008-198604

L=14,OD=10,L=14,OD=10

main90250-10215iBJ4#,FJ4#,HJ47..4F,5F198008-198604

L=9,OD=9,L=8,OD=9.67

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-36011iBJ46;BJ40,42,43,45,FJ4#,HJ47..4F198008-198604

main33122-60010iBJ42,46,FJ40,43..5F198210-198410

main33122-61010iFJ4#..3F198008-198210

33212FORK, 1ST & REVERSE SHIFT

main33212-60010iFJ4#..3F198008-198210

33214FORK, 2ND & 3RD SHIFT

main33214-60010iFJ4#..3F198008-198210

33242SHAFT, GEAR SHIFT FORK, NO.1

main33241-60020iFJ4#..3F198008-198210

33242BRING, O (FOR SHIFT FORK SHAFT)

main90301-08029×2iFJ4#..3F198008-198210

33242CPIN, STRAIGHT (FOR SHIFT FORK SHAFT)

main90250-03032iFJ4#..3F198008-198210

33266PLATE, SHIFT INTERLOCK

main33206-60010iFJ4#..3F198008-198210

33268BOLT, SHIFT INTERLOCK PLATE SET, NO.2

main33267-60010iFJ4#..3F198008-198210

*6-1PX29-10

main33268-60010×3iFJ4#..3F198008-198210

*6-1PX35.5-10

33268BSPACER (FOR SHIFT INTERLOCK BOLT)

main90560-06083×4iFJ4#..3F198008-198210

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-12033×2iFJ4#..3F198008-198210

main90501-13011×4iBJ42,46,FJ40,43..5F198210-198410

main90501-14772×3iBJ46;BJ40,42,43,45,FJ4#,HJ47..4F198008-198604

33275BBALL, SHAFT DETENT

main90360-10003×4iBJ4#,FJ4#,HJ47198008-198604

9161160618

main91611-60618

9161160625

main91611-60625

9161160630

main91611-60630

9411040600

main94110-40600

9451201000

main94512-01000

9454100600

main94541-00600

20 parts on this diagram · 3 diagrams in section
