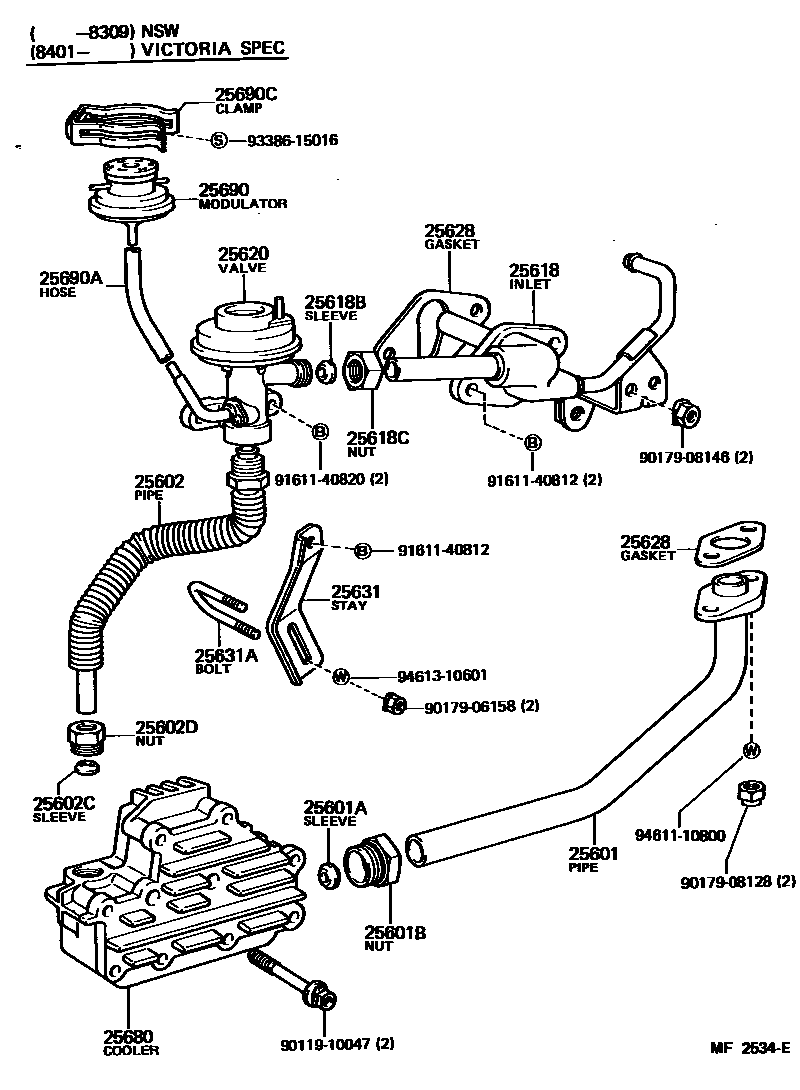

EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
*NSW
25601ASLEEVE, BALL, EGR PIPE, NO.1
*NSW
25601BNUT, UNION, EGR PIPE, NO.1
*NSW
25602PIPE SUB-ASSY, EGR, NO.2
*NSW
25602CSLEEVE, BALL(FOR EGR PIPE, NO.2)
*NSW
25602DNUT, UNION(FOR EGR PIPE, NO.2)
*NSW
25618INLET, EGR
*NSW
25618BSLEEVE, BALL(FOR EGR INLET)
*NSW
25618CNUT, OLIVE E(FOR EGR INLET)
*NSW
25620VALVE ASSY, EGR
*NSW
25628GASKET, EGR INLET
EXHAUST MANIFOLD,*NSW
INTAKE MANIFOLD,*NSW
25631STAY, EGR PIPE, NO.1
*NSW
25631ABOLT(FOR EGR PIPE CLAMP)
*NSW
25680COOLER ASSY, EGR
*NSW
25690MODULATOR ASSY, EGR VACUUM
*NSW
25690AHOSE(FOR EGR VACUUM MODULATOR)
*NSW
25690CCLAMP(FOR EGR VACUUM MODULATOR)
*NSW
9011910047
main90119-10047
9017906158
main90179-06158
9017908128
main90179-08128
9017908146
main90179-08146
9161140812
main91611-40812
9161140820
main91611-40820
9338615016
main93386-15016
9461110800
main94611-10800
9461310601
main94613-10601
26 parts on this diagram · 1 diagram in section
