FUEL PIPE & CLAMP

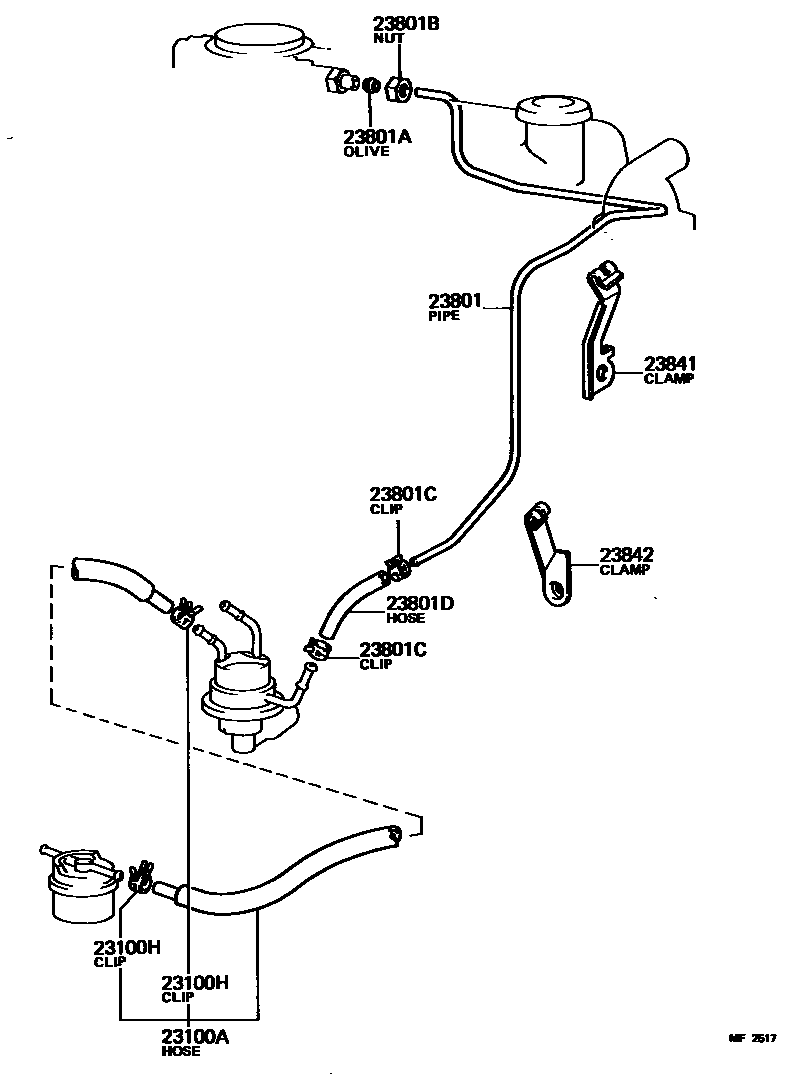

Parts diagram

23100AHOSE, FUEL

main23820-61070i198008-198604

23100HCLIP(FOR FUEL HOSE)

main96132-30800×2i198008-198604

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-61032i198008-198604

23801AOLIVE(FOR FUEL PIPE)

main96395-71400i198008-198604

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041i198008-198604

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30800×2i198008-198604

23801DHOSE, FUEL PIPE, NO.1

main95332-08020i198008-198604

L=200(*H,L=130)

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-61021i198008-198604

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23842-61031i198008-198604

9 parts on this diagram · 1 diagram in section
