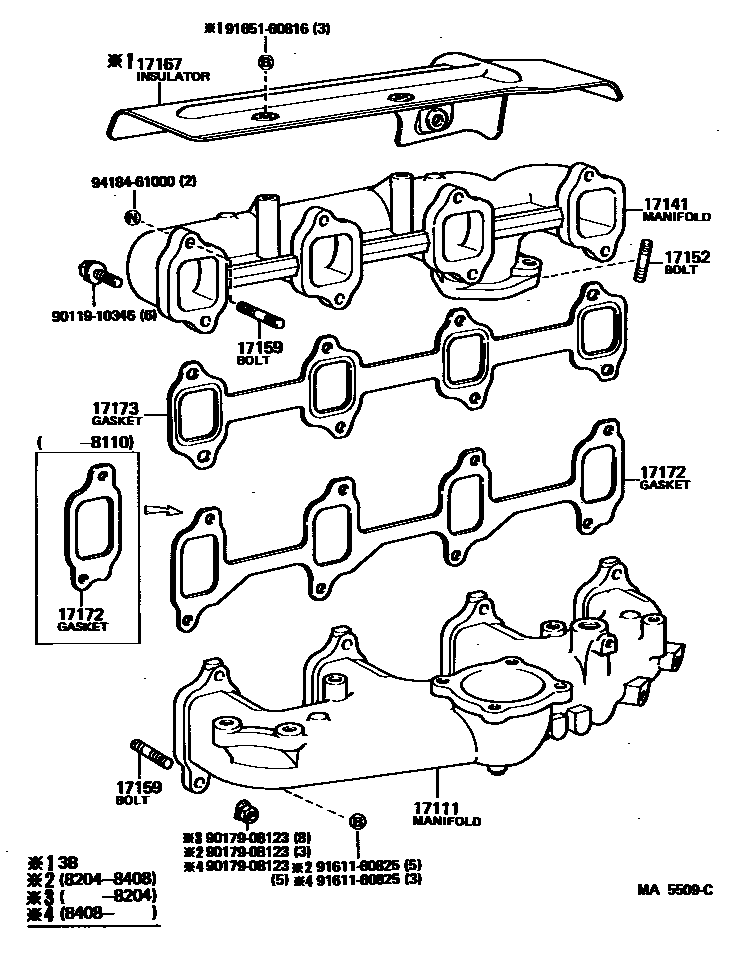

MANIFOLD
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=42,S=16&23
L=40,S=19&12
L=40,S=17&17
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*NSW
17172GASKET, MANIFOLD TO CYLINDER HEAD
17173GASKET, EXHAUST MANIFOLD TO HEAD
9011910346
main90119-10346
9017908123
main90179-08123
9161160825
main91611-60825
9165160816
main91651-60816
9418461000
main94184-61000
12 parts on this diagram · 8 diagrams in section
